HS-70MG
HS-70MG
HS-70MG Click to enlarge

HS-70MG

Ultra Torque, Metal Gear Feather Servo

PWM Cored Metal Brush
3
KGF·CM
Max Torque
0.14
SEC/60°
Speed
12.7
GRAMS
Weight
Torque2.4 ~ 3 kgf·cm
Speed0.17 ~ 0.14 sec/60°
Operating Voltage4.8 ~ 6 V

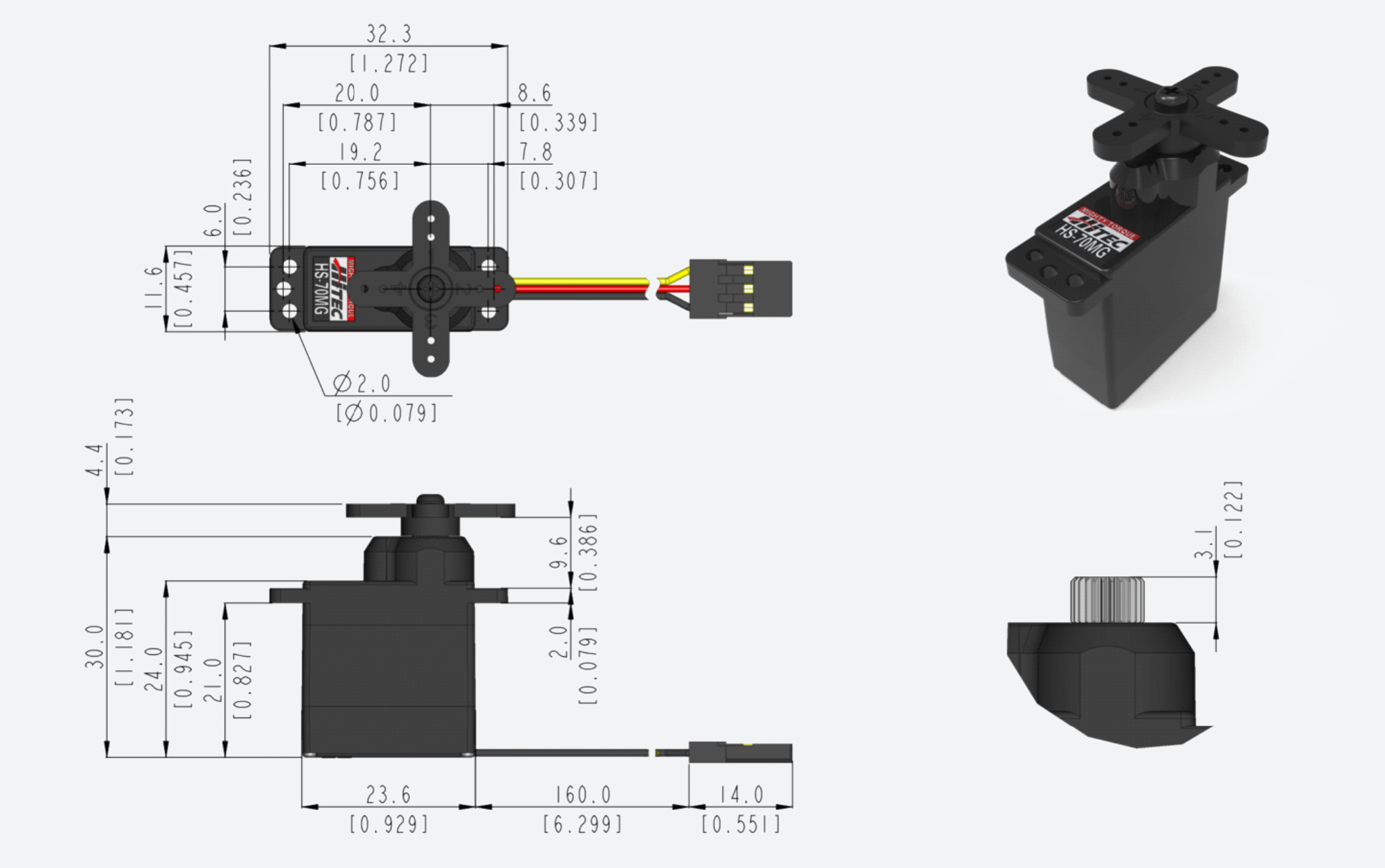

Dimensions (L×W×H)23.6 × 11.6 × 29 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Product Inquiry
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Our strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. Fast, forceful, fantastic! We Are Hitec!
Downloads
HS-70MG_3dmodel
ZIP Datasheet
HS-70MG_Specsheet(v2.1)_22L
PDF Datasheet
