MD70MH

11.6mm, Cored, High Voltage, Metal Gear Actuator (7.4V) / PWM & TTL Protocol

PWM TTL Cored

3.8

KGF·CM

Max Torque

0.12

SEC/60°

Speed

14.1

GRAMS

Weight

Torque3.1 ~ 3.8 kgf·cm

Speed0.15 ~ 0.12 sec/60°

Operating Voltage4.8 ~ 7.4 V

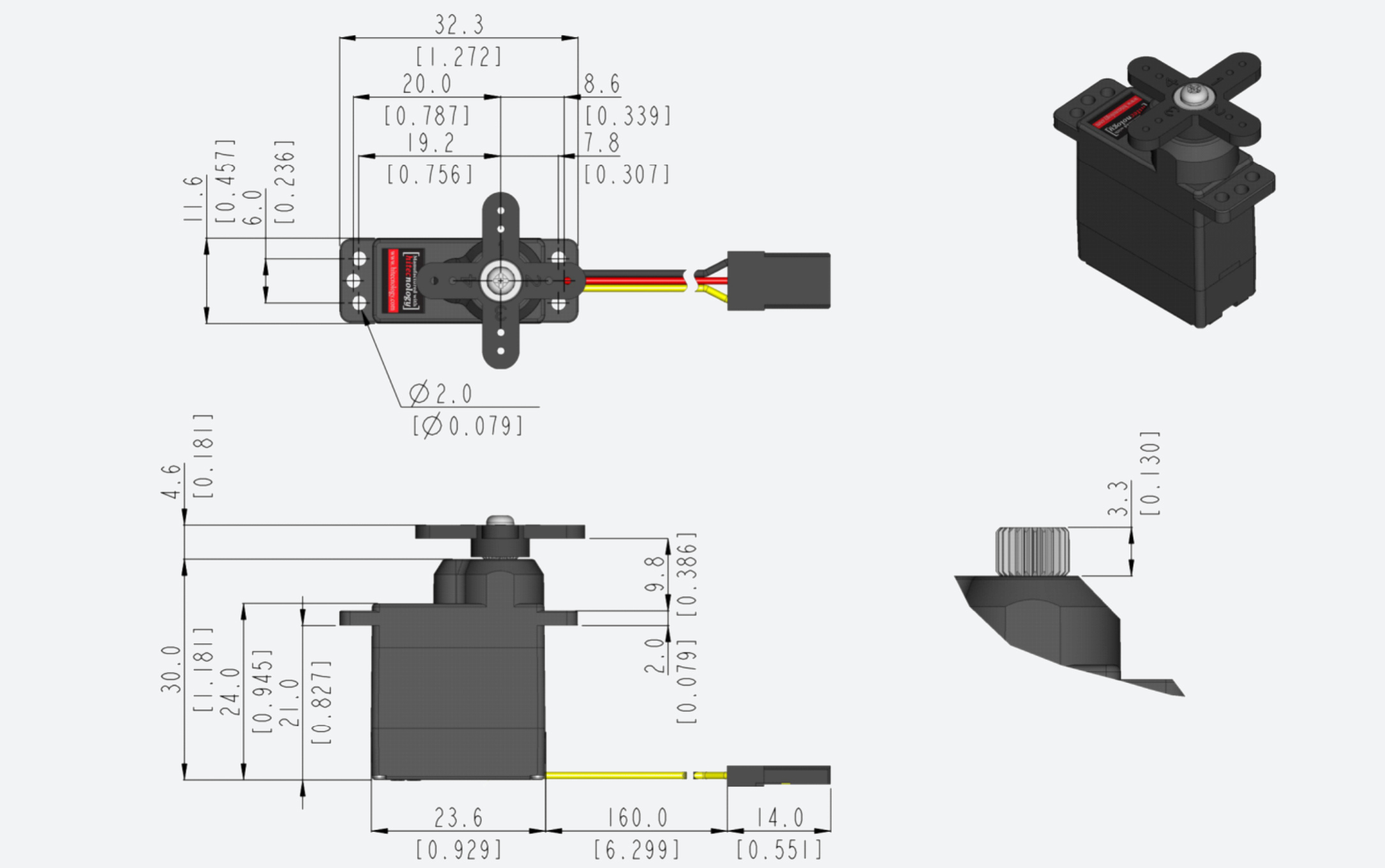

Dimensions (L×W×H)23.6 × 11.6 × 30 mm

Motor TypeCored

Gear TypeMetal

ProtocolsPWM,TTL

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable Digital Circuit • PWM & TTL Protocol Capability <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP65 Rated Cases • Customization and Modification Options Available • Custom Connector Options Available Parts and Accessories • Replacement Gear Set • Replacement Case Set • Applicable Horns and Mounting Hardware Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
