D145SW

32-Bit, Wide Voltage, Steel Servo

PWM TTL Cored Carbon Brush

KGF·CM

Max Torque

0.14

SEC/60°

Speed

GRAMS

Weight

Torque3.9 ~ 6 kgf·cm

Speed0.21 ~ 0.14 sec/60°

Operating Voltage4.8 ~ 7.4 V

Dimensions (L×W×H)30 × 10 × 37 mm

Motor TypeCored Carbon Brush

Gear TypeSteel

ProtocolsPWM,TTL

Product Inquiry

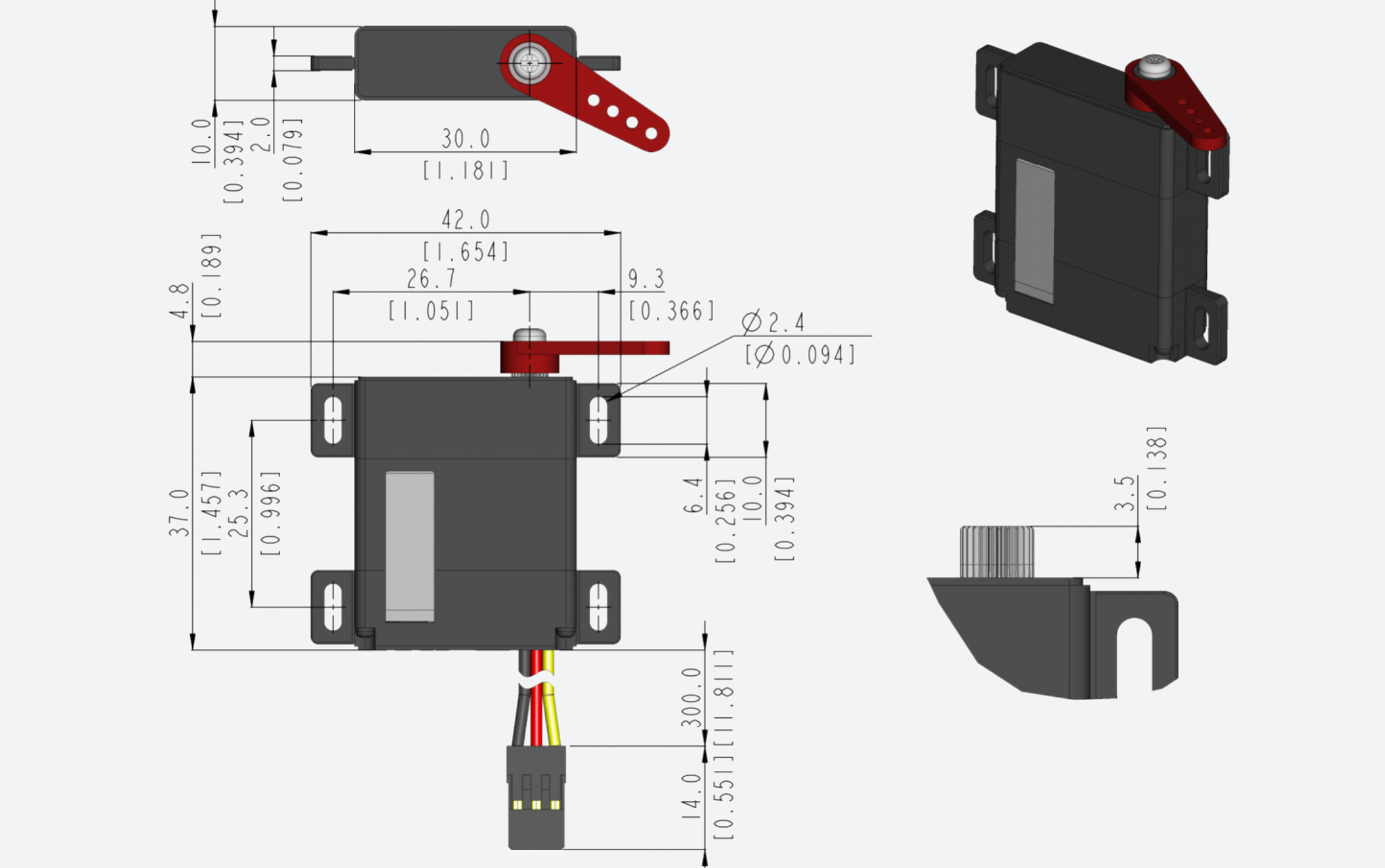

Unit: mm [inch]

Product Description

With 32-bit high resolution, ultra-response technology and wide voltage operation, the slim wing D145SW has heavy-duty, steel gears, providing instant torque and holding power for slim aircraft and glider wings.

Downloads

D145SW_Specsheet(v2.1)_22H

PDF Datasheet
