MD85MG-CAN

13mm Standard Metal Gear / CAN Protocol

CAN Cored Carbon Brush

4.3

KGF·CM

Max Torque

0.13

SEC/60°

Speed

GRAMS

Weight

Torque3.6 ~ 4.3 kgf·cm

Speed0.17 ~ 0.13 sec/60°

Operating Voltage4.8 ~ 6 V

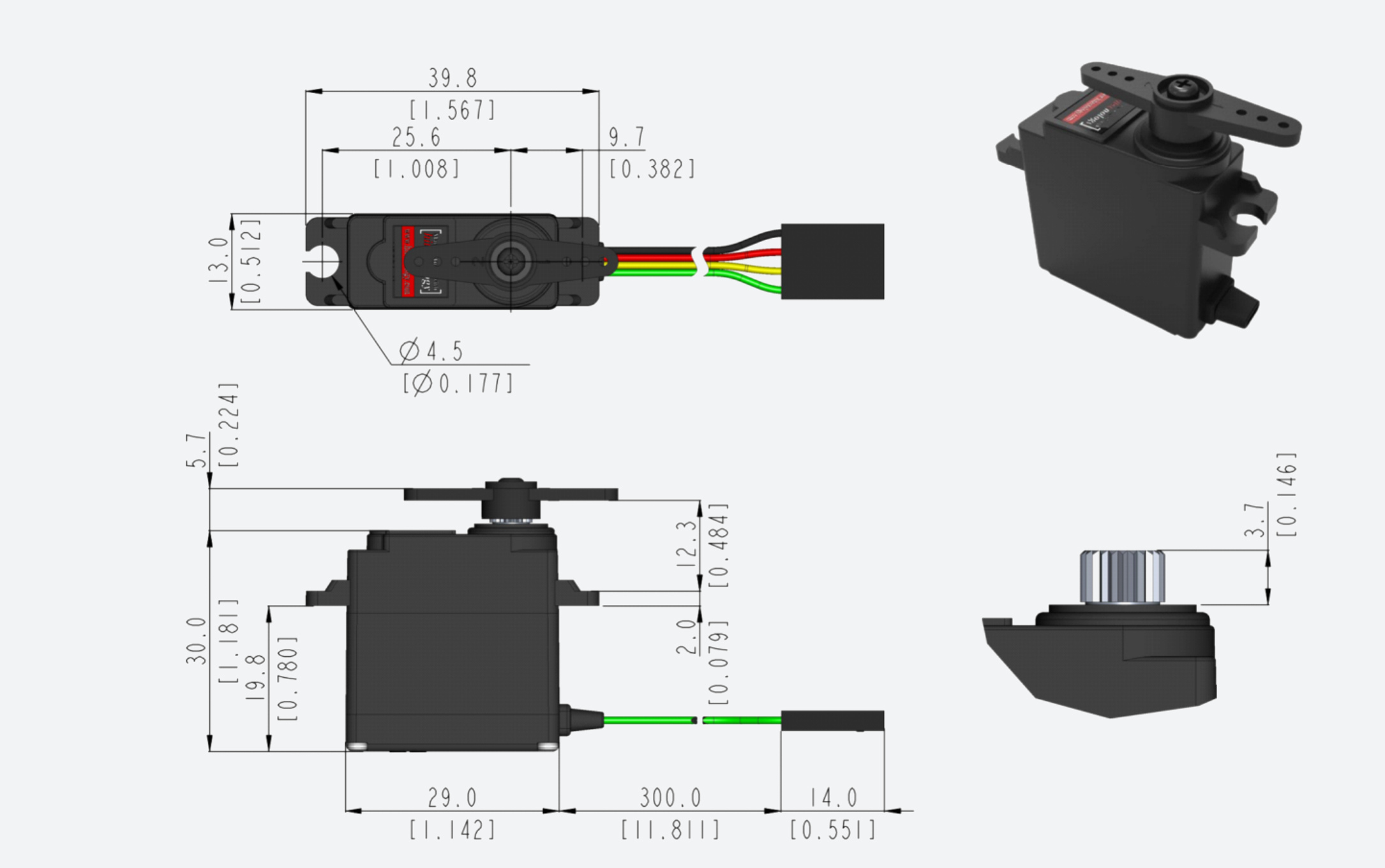

Dimensions (L×W×H)29 × 13 × 30 mm

Motor TypeCored Carbon Brush

Gear TypeMetal

ProtocolsCAN

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable Digital Circuit • CAN Bus (2.0A or 2.0B) Protocol Capability <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP65 Rated Cases • Customization and Modification Options Available • Custom Connector Options Available Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
