Our slim wing D141SH is a 10mm, heavy-duty steel gear industrial actuator engineered with an efficient coreless motor. Its high-resolution, ultra-response technology and wide voltage operation are perfect for commercial applications requiring premium quality in a thin size,
D141SH Actuator Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 3.5V ~ 8.4V
Speed (Second @ 60°) 0.10 @ 7.4V
Maximum Torque Range oz. / in. 97.21 @ 7.4V
Maximum Torque Range kg. / cm. 7.0 @ 7.4V
Current Draw at Idle 30mA @ 7.4V
No Load Operating Current Draw 160mA @ 7.4V
Stall Current Draw 2,500mA @ 7.4V
Dead Band Width 2us

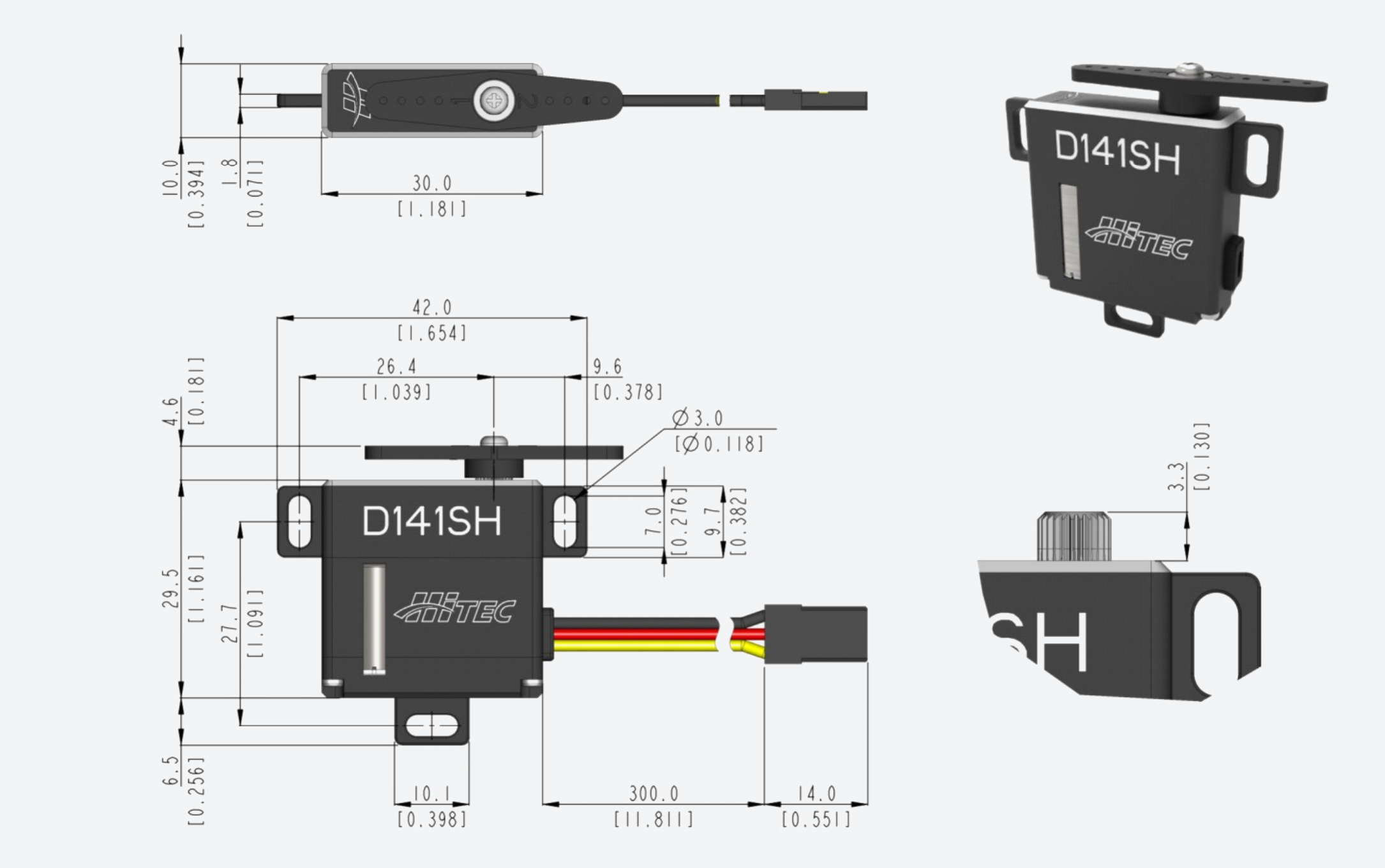

Physical Specifications
Dimensions (Inches) 1.181 x 0.394 x 1.161 in.
Dimensions (Metric) 30.0 x 10.0 x 29.5
Weight (Ounces) 0.917
Weight (Gram) 26.0
Circuit Type 32bit Programable Digital
Motor Type Coreless
Gear Material 1 Metal-Plastic & 4 Steel Gears
Bearing Type 2 Ball Bearing
Output Shaft (type / Ømm) M25T(Ø5)
Case Material Aluminum Alloy
Dust / Water Resistance IP4X
Connector Gauge (AWG) / Strand Count 24AWG
