SG50BL-CAN-24V-CIRCULAR-CONN

50mm, Waterproof, Brushless, Steel Gear Actuator (24V)

CAN DroneCAN Brushless

520

KGF·CM

Max Torque

0.5

SEC/60°

Speed

1450

GRAMS

Weight

Torque520 kgf·cm

Speed0.5 sec/60°

Operating Voltage18 ~ 32 V

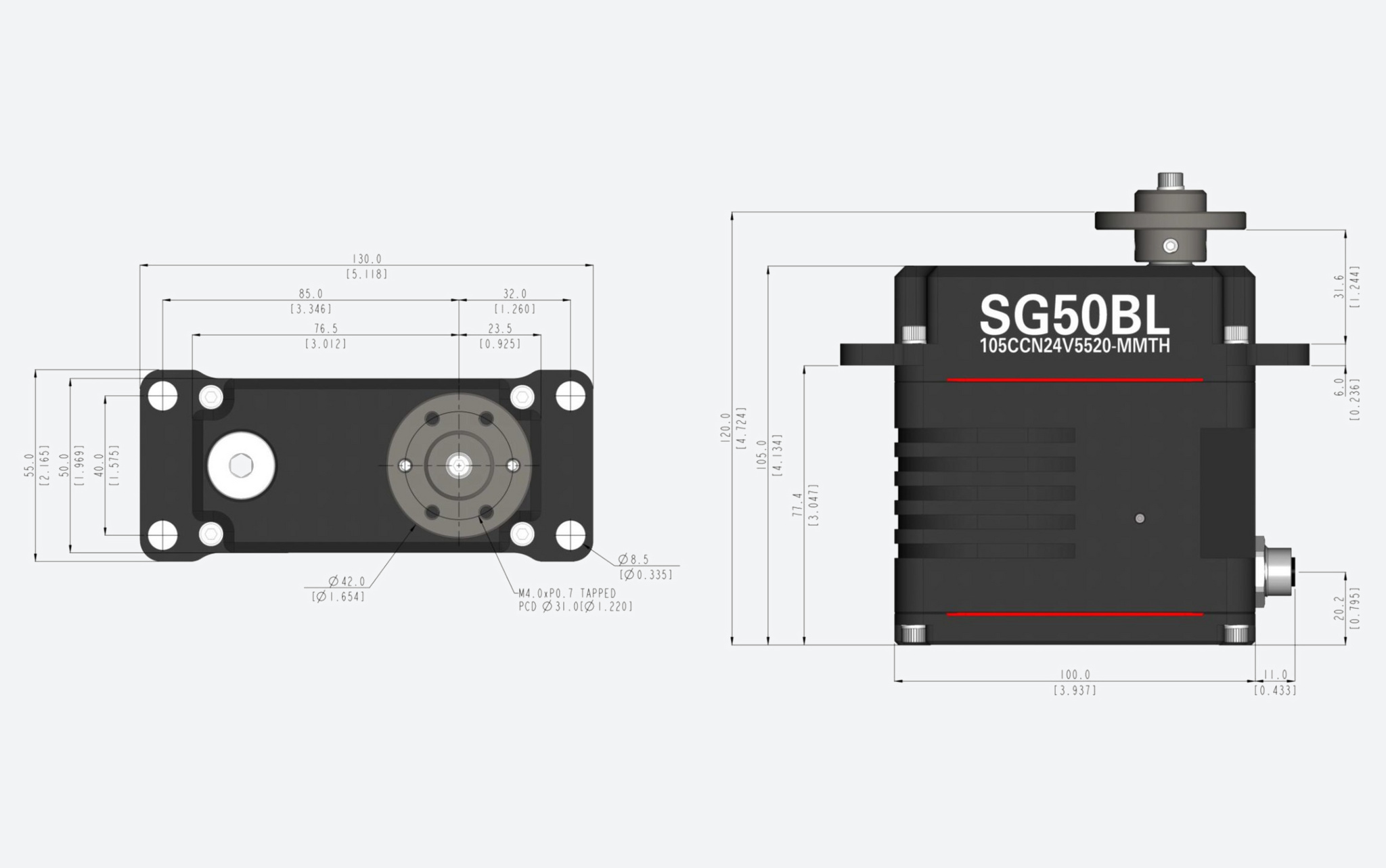

Dimensions (L×W×H)100 × 50 × 105 mm

Motor TypeBrushless

Gear TypeSteel

ProtocolsCAN,DroneCAN

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Capable of a wide 18~32-volt operating range, the robust SG50BL is designed with a high-performance brushless motor, magnetic encoder, and durable, hardened steel gears. It includes CAN 2.0 A/B or DroneCAN (formerly UAVCAN) control options with 360 degrees and multi-turn proportional rotation. Its waterproof 50mm case and monster torque range bring the power and durability required for robotic, automation and commercial applications requiring robust force, precision and installed durability.

Downloads

SG50BL_3Dmodel

ZIP Datasheet

SG50BL-CAN_Specsheet_v2.05_25C

PDF Datasheet
