HS-5125MG

Slim Metal Gear Wing Servo

PWM Cored Metal Brush

3.5

KGF·CM

Max Torque

0.13

SEC/60°

Speed

GRAMS

Weight

Torque3 ~ 3.5 kgf·cm

Speed0.17 ~ 0.13 sec/60°

Operating Voltage4.8 ~ 6 V

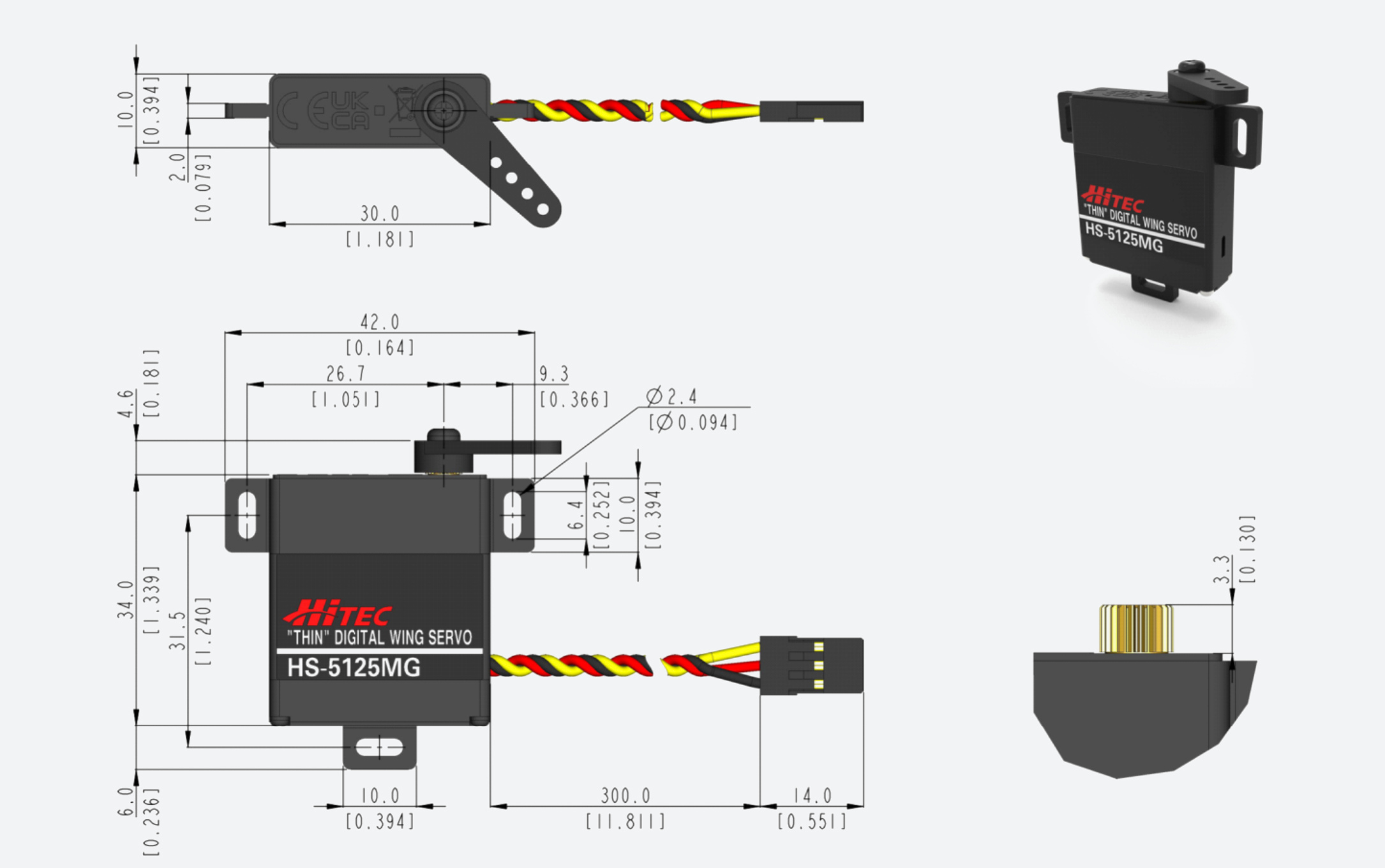

Dimensions (L×W×H)30 × 10 × 34 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability. Features • Super Thin Programmable Digital Wing Servo • Strong Metal Gears • Dual Ball Bearings • Standard Programmable Digital Circuit for Greater Holding Power • 10mm Design Fits Perfectly in Slim Aircraft and Glider Wings Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
