SG15BL-CAN-12V-CIRCULAR-CONN
SG15BL-CAN-12V-CIRCULAR-CONN
SG15BL-CAN-12V-CIRCULAR-CONN Click to enlarge

SG15BL-CAN-12V-CIRCULAR-CONN

15mm, Waterproof, Brushless, High Torque Actuator with Circular Connector (12V)

CAN DroneCAN BLDC
11
KGF·CM
Max Torque
0.12
SEC/60°
Speed
40
GRAMS
Weight
Torque11 kgf·cm
Speed0.12 sec/60°
Operating Voltage9 ~ 15 V

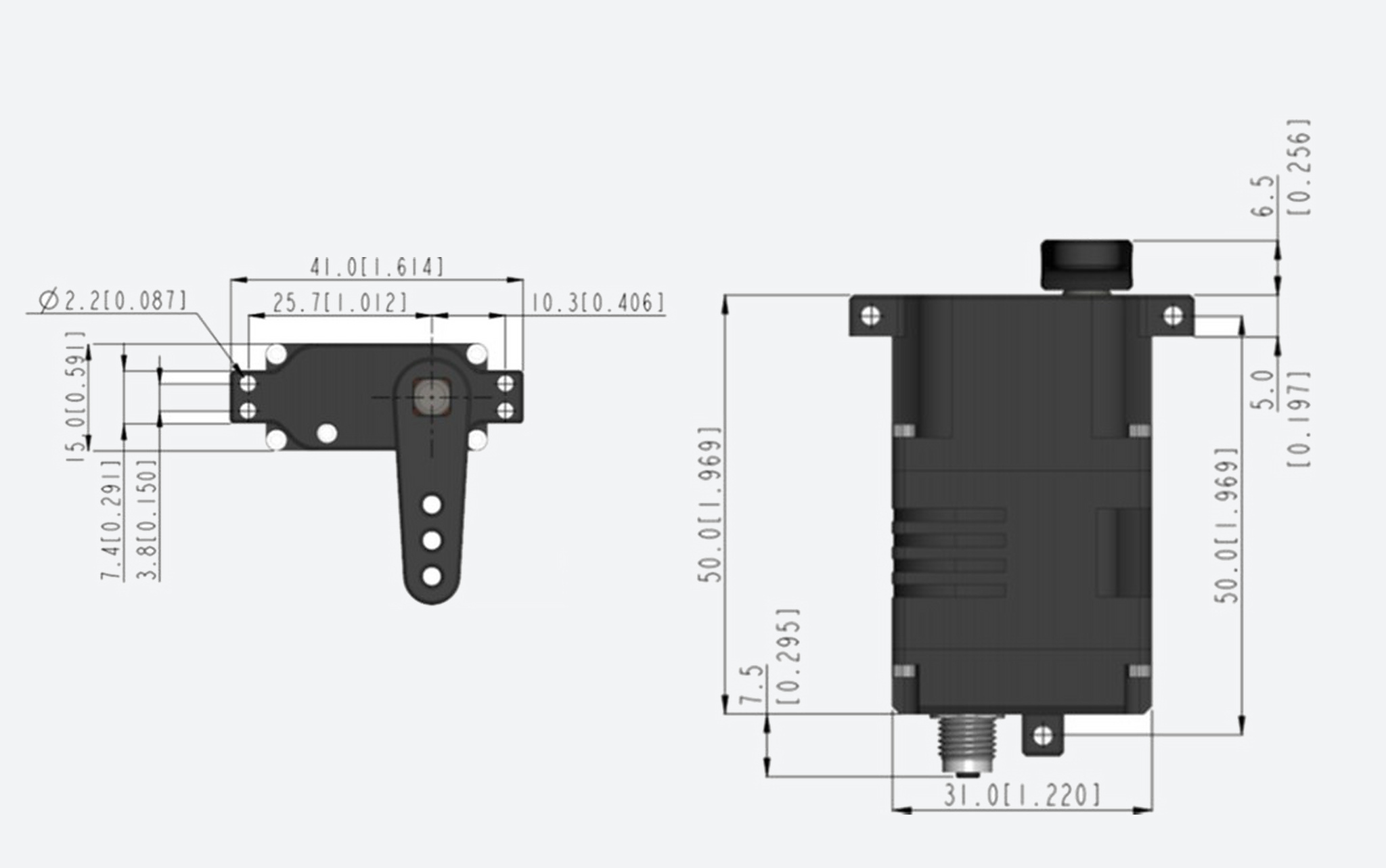

Dimensions (L×W×H)31 × 15 × 50 mm
Motor TypeBLDC
Gear TypeSteel
ProtocolsCAN,DroneCAN
Product Inquiry
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
 .With an operating voltage of 9~15 volts, the rugged SG15BL is designed with a high-performance brushless motor, magnetic encoder, and durable, hardened steel gears. It includes CAN 2.0 A/B or DroneCAN (formerly UAVCAN) control options with 360 degrees and multi-turn proportional rotation. With smooth and decisive movement and accuracy along with a true waterproof rating, this aluminum case 15mm micro servo is designed for industrial applications requiring maximum performance in tight spaces.
Downloads
SG15BL-CAN_Specsheet_v2.07_25C
PDF Datasheet
SG15BL_WITH-TRAY_3Dmodel
ZIP Datasheet
