MD245MW-RS485

17mm, Coreless, Wide Voltage, High Speed, Metal Gear Actuator(7.4V) / RS-485 Protocol

RS485 Coreless Metal Brush

6.4

KGF·CM

Max Torque

0.11

SEC/60°

Speed

GRAMS

Weight

Torque4.2 ~ 6.4 kgf·cm

Speed0.17 ~ 0.11 sec/60°

Operating Voltage4.8 ~ 7.4 V

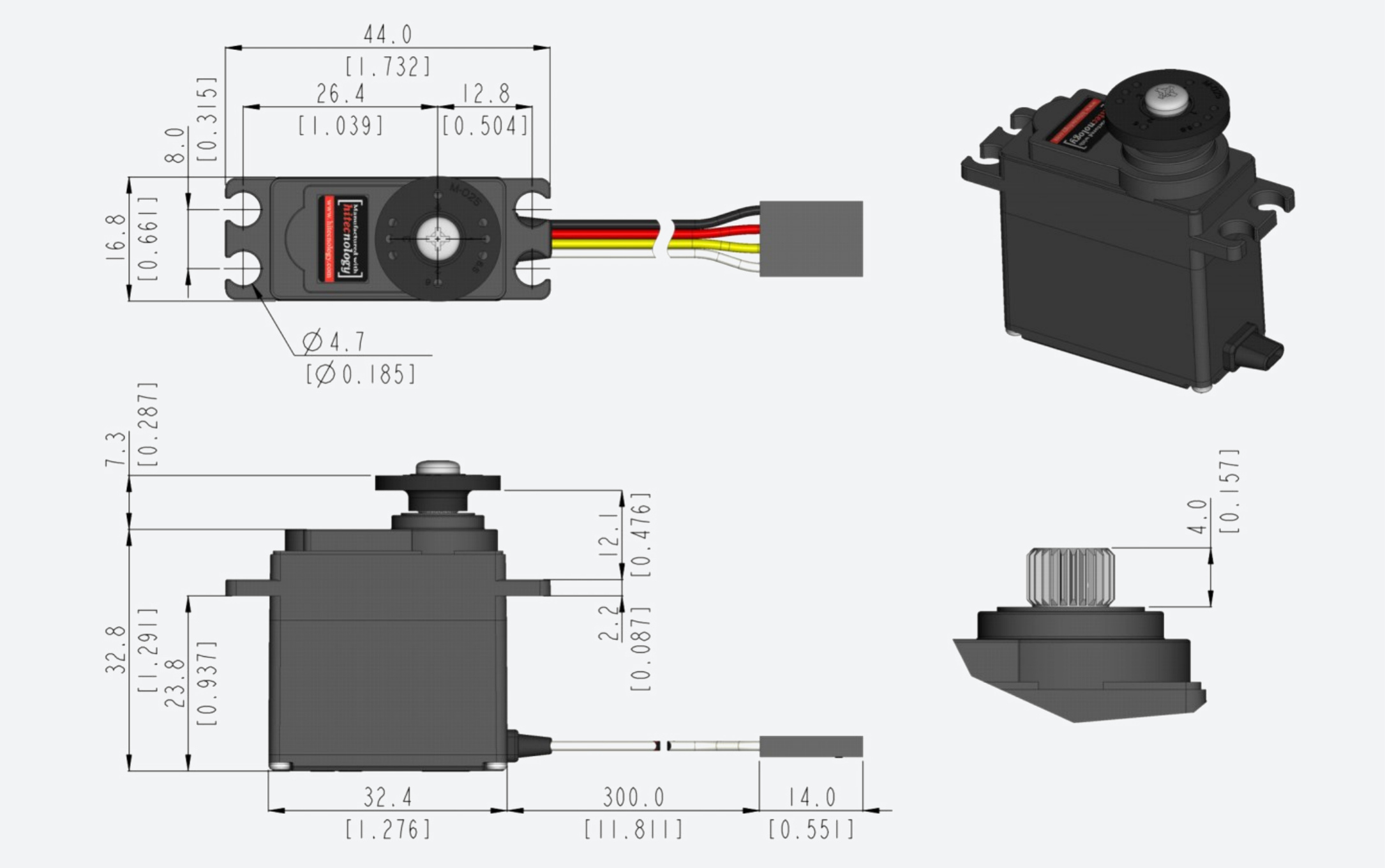

Dimensions (L×W×H)32.4 × 16.8 × 32.8 mm

Motor TypeCoreless Metal Brush

Gear TypeMetal

ProtocolsRS485

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable Digital Circuit • RS-485 Protocol <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP-65 Rated Cases • 25 Tooth Output Shaft • Customization and Modification Options Available • Custom Connector Options Available Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
