SG33BLT-24V-DB9SUB-CONN

33mm, Waterproof, Brushless, High Torque Actuator with DB9 SUB Connector (24V)

PWM TTL RS485 BLDC

147

KGF·CM

Max Torque

0.19

SEC/60°

Speed

480

GRAMS

Weight

Torque147 kgf·cm

Speed0.19 sec/60°

Operating Voltage18 ~ 32 V

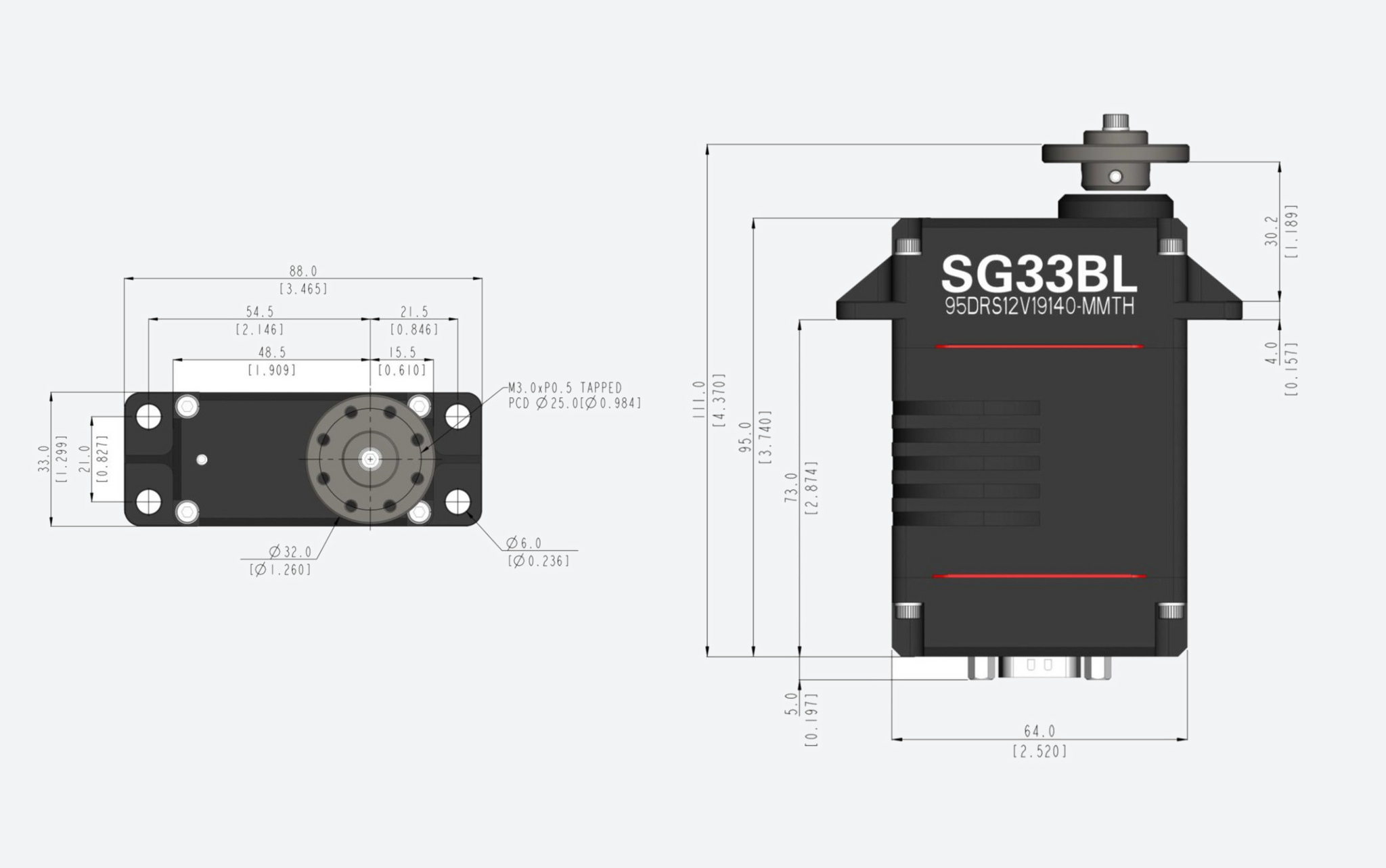

Dimensions (L×W×H)64 × 33 × 95 mm

Motor TypeBLDC

Gear TypeSteel

ProtocolsPWM,TTL,RS485

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The mighty Hitec SG33BLT Series servo actuators operate on DroneCAN (formerly UAVCAN), CAN 2.0 A/B, RS485, PWM and TTL command protocols, and feature brushless motors, magnetic encoders, and hardened steel gears. They are also environmentally sealed with an IP67 waterproof case rating. The SG33BLT Series was initially developed for the automotive industry requiring minimal support equipment and wiring, saving unnecessary installation complexity, cost and weight. This same functionality is now enjoying widespread adoption of CAN and DroneCAN systems within the UAV environment. With options for both 9~15-volt and 18~32-volt operations, and DB9SUB, Circular, & Gland Cable connectivity, the SG33BLT Actuator Series is sure to have a solution for your needs.
