HS-5087MH
HS-5087MH
HS-5087MH Click to enlarge

HS-5087MH

HV Premium Digital Metal Gear Micro Servo

PWM Cored Metal Brush
4.3
KGF·CM
Max Torque
0.13
SEC/60°
Speed
21.9
GRAMS
Weight
Torque3.6 ~ 4.3 kgf·cm
Speed0.17 ~ 0.13 sec/60°
Operating Voltage6 ~ 7.4 V

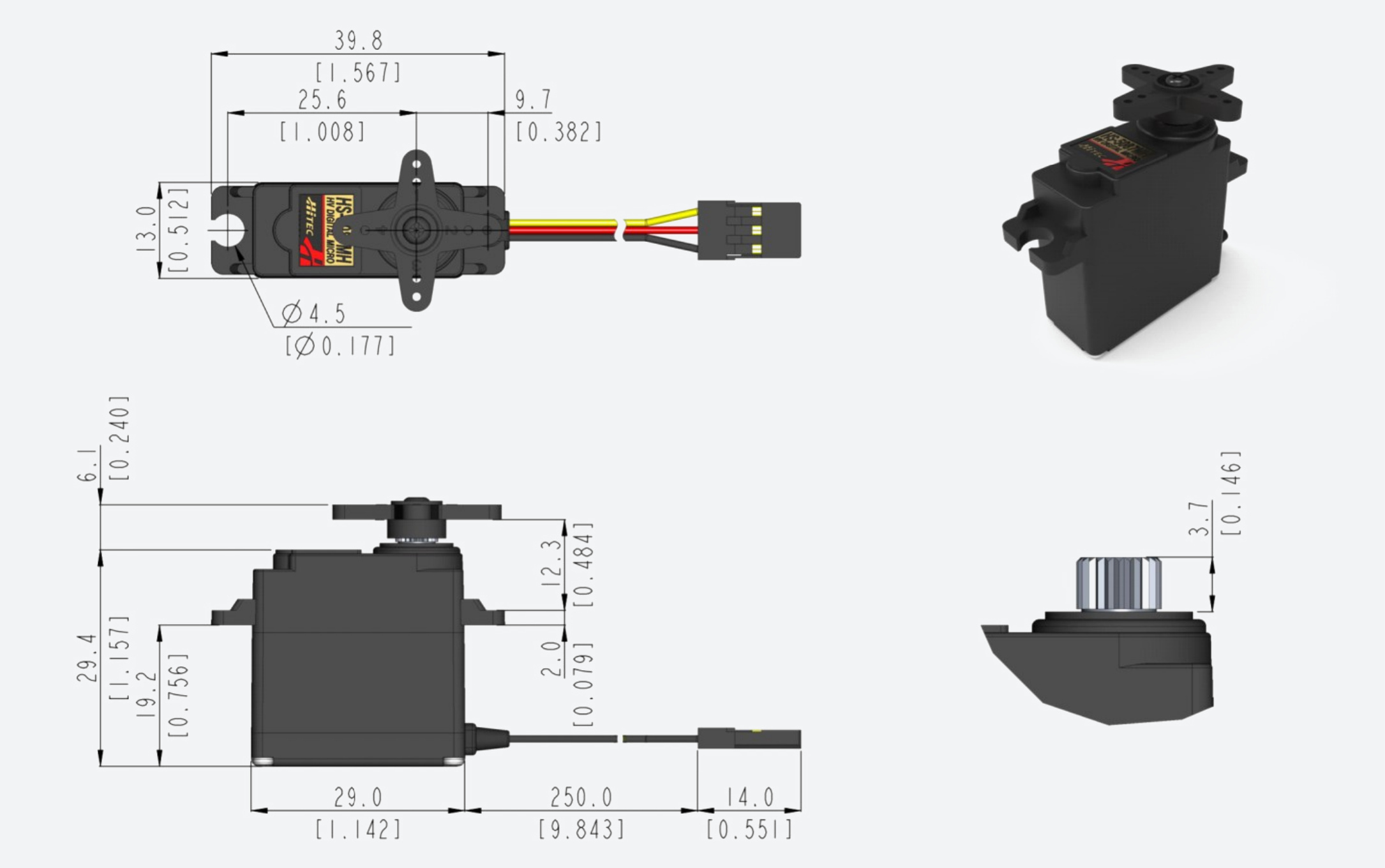

Dimensions (L×W×H)29 × 13 × 30 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Micro Servo! Major Power! The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters. Features • Our Smallest 7.4v 2-Cell LiPo Capable Servo • Rugged Metal Gears • Ball Bearing-Supported Output Shaft • Standard Programmable Digital Circuit for More Holding Power • Standard Servo Performance in a Micro Package Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
hs-5087mh_3dmodl
ZIP Datasheet
HS-5087MH_Specsheet(v2.1)_22K
PDF Datasheet
More Products
View All →
DPC-CAN
DPC-CAN
CAN Servo Programmer

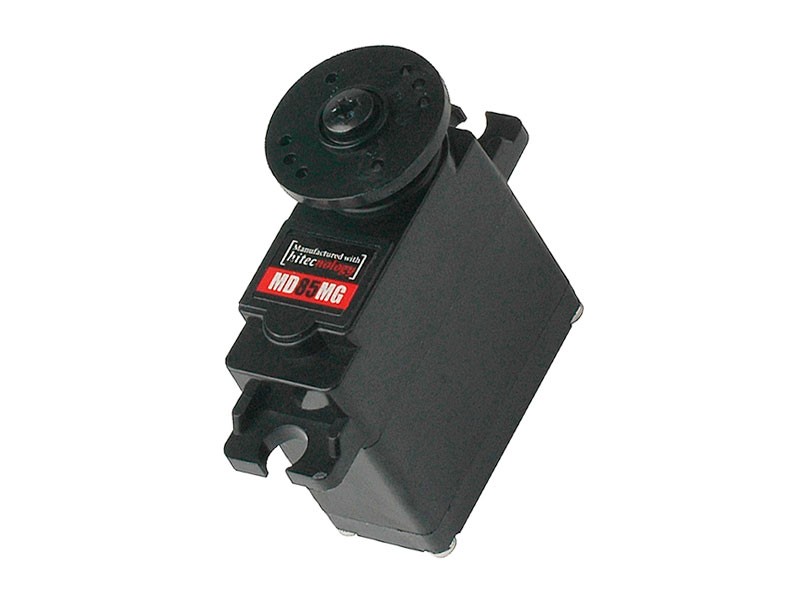

MD85MG-DroneCAN
