Our ultra-premium MDB961WP-DroneCAN-28V is engineered with an efficient brushless motor and magnetic encoder delivering uncompromised performance and reliability. Operating at a wide voltage range from 8V up to 32 volts, this powerhouse actuator produces massive torque and high speeds with 32-bit digital programmability and IP-67 waterproof rating. Perfect for DroneCAN (UAVCAN v0) command protocols, the MDB961WP-DroneCAN-28V is ideal for industrial applications requiring unbeatable precision, strength and durability.
MDB961WP-DroneCAN-28V Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 8.0V ~ 32.0V
Speed (Second @ 60°) 0.14 @ 28.0V
Maximum Torque Range oz. / in. 833.24 @ 28.0V
Maximum Torque Range kgf. / cm. 60.0 @ 28.0V
Current Draw at Idle 11mA @ 28.0V
No Load Operating Current Draw 200mA @ 28.0V
Stall Current Draw 3,000mA @ 28.0V
Dead Band Width n/a

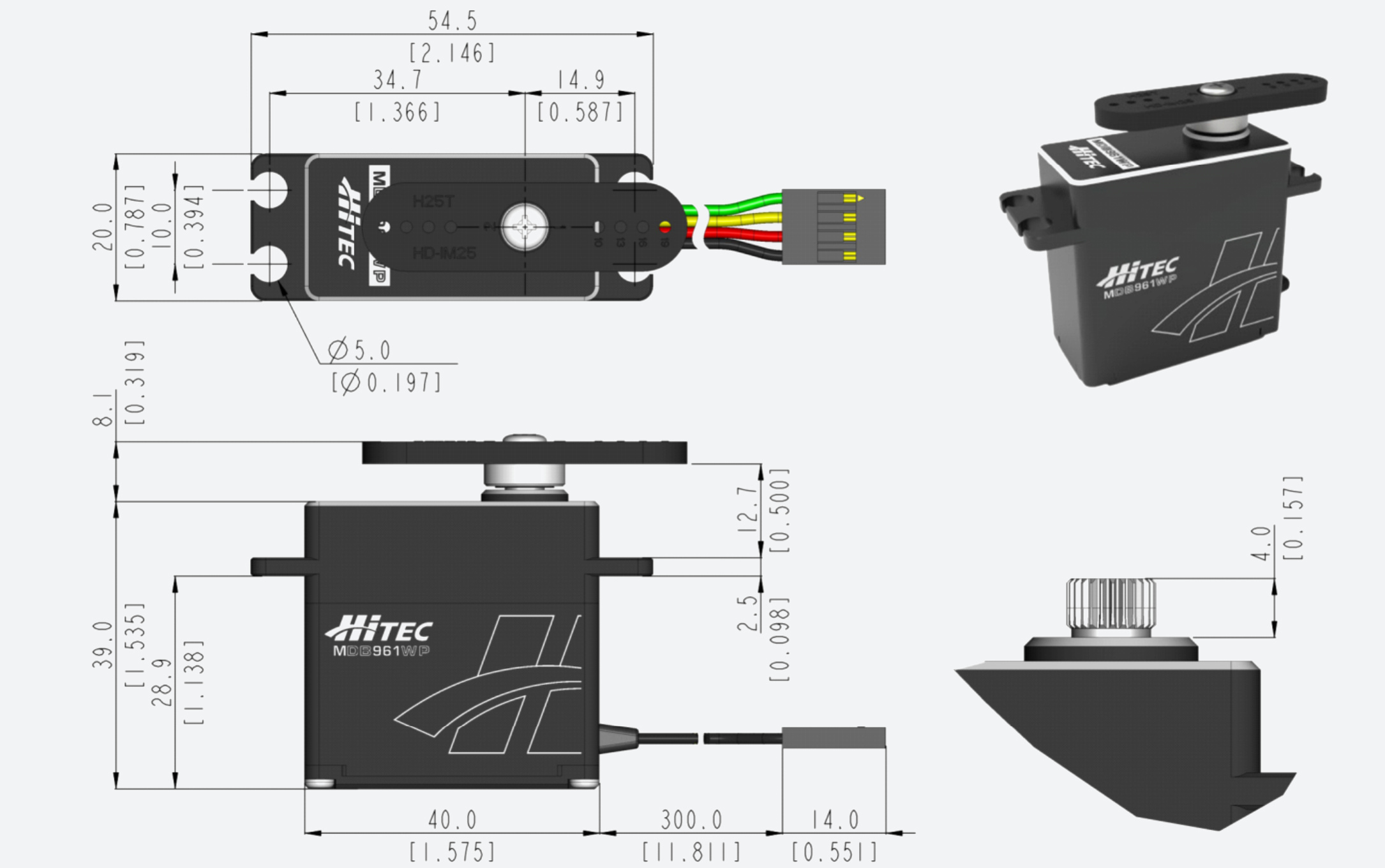

Physical Specifications
Dimensions (Inches) 1.575 x 0.787 x 1.535 in.
Dimensions (Metric) 40.0 x 20.0 x 39.0
Weight (Ounces) 3.175
Weight (Gram) 90.0
Circuit Type 32bit Programable Digital
Motor Type Brushless
Gear Material 5 Hardened Steel Gears
Bearing Type 2 Ball Bearings
Output Shaft (type / Ømm) 25T(Ø6)
Case Material Aluminum Alloy
Dust / Water Resistance IP67 Rated
Connector Gauge (AWG) / Strand Count 20AWG
