HS-5625MG
HS-5625MG
HS-5625MG Click to enlarge

HS-5625MG

High Speed, Metal Gear Digital Sport Servo

PWM Cored Metal Brush
9.4
KGF·CM
Max Torque
0.14
SEC/60°
Speed
60
GRAMS
Weight
Torque7.9 ~ 9.4 kgf·cm
Speed0.17 ~ 0.14 sec/60°
Operating Voltage4.8 ~ 6 V

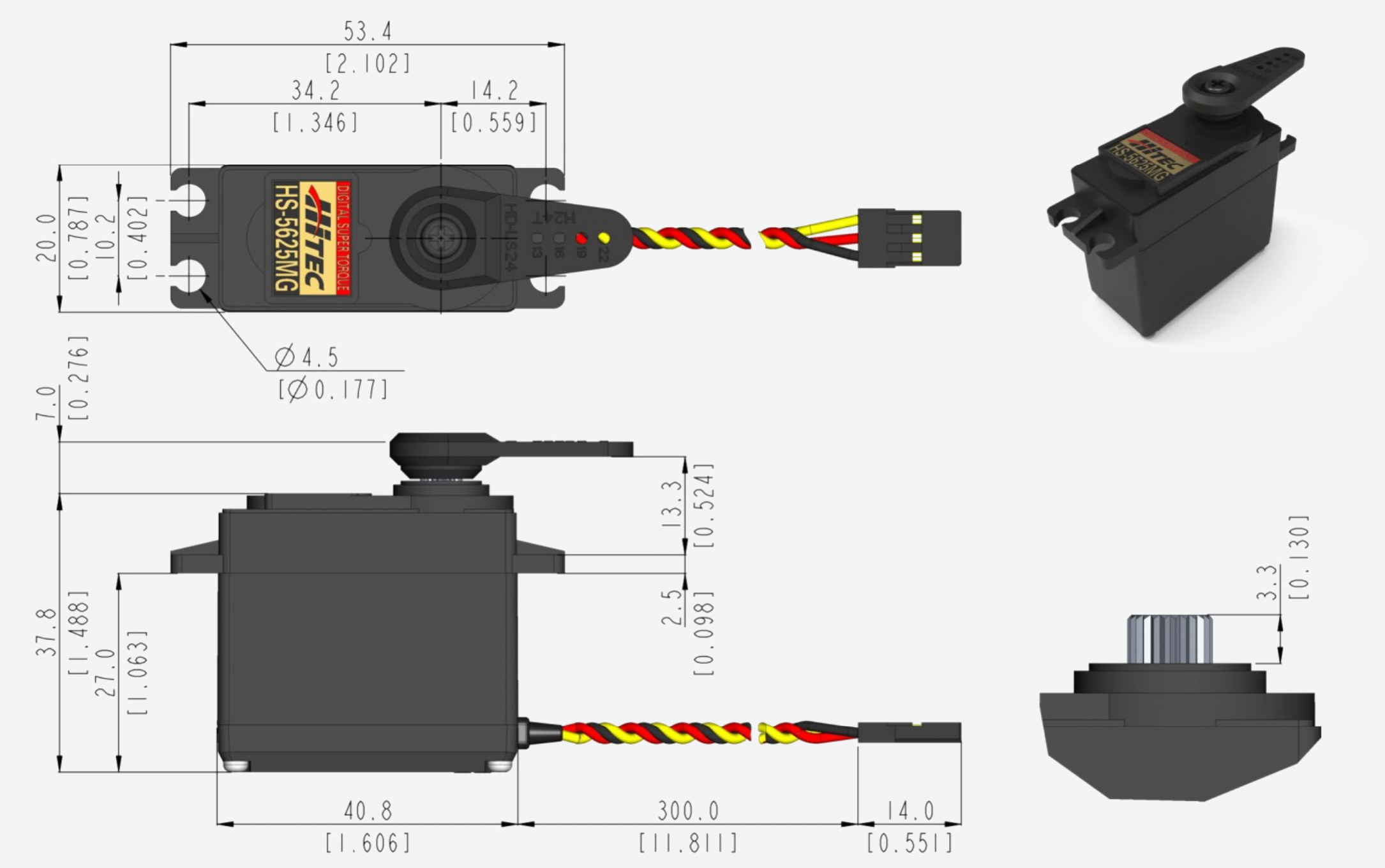

Dimensions (L×W×H)40.6 × 19.8 × 37.8 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice.   With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results! Note: Metal Horn (R-ML) Included Features • Most Popular High Speed Standard Digital Servo • Strong Three-Pole Ferrite Motor • Metal Gear Train with MP Gear Technology • Dual Ball Bearing-Supported Output Shaft • Standard Programmable Digital Circuit Provides Fine Resolution and Centering Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
hs-5625mg_3dmodl
ZIP Datasheet
HS-5625MG_Specsheet(v2.1)_22K
PDF Datasheet
