HS-765HB

Karbonite, Sail Control Servo

PWM Cored Metal Brush

13.2

KGF·CM

Max Torque

0.23

SEC/60°

Speed

104.8

GRAMS

Weight

Torque11 ~ 13.2 kgf·cm

Speed0.28 ~ 0.23 sec/60°

Operating Voltage4.8 ~ 6 V

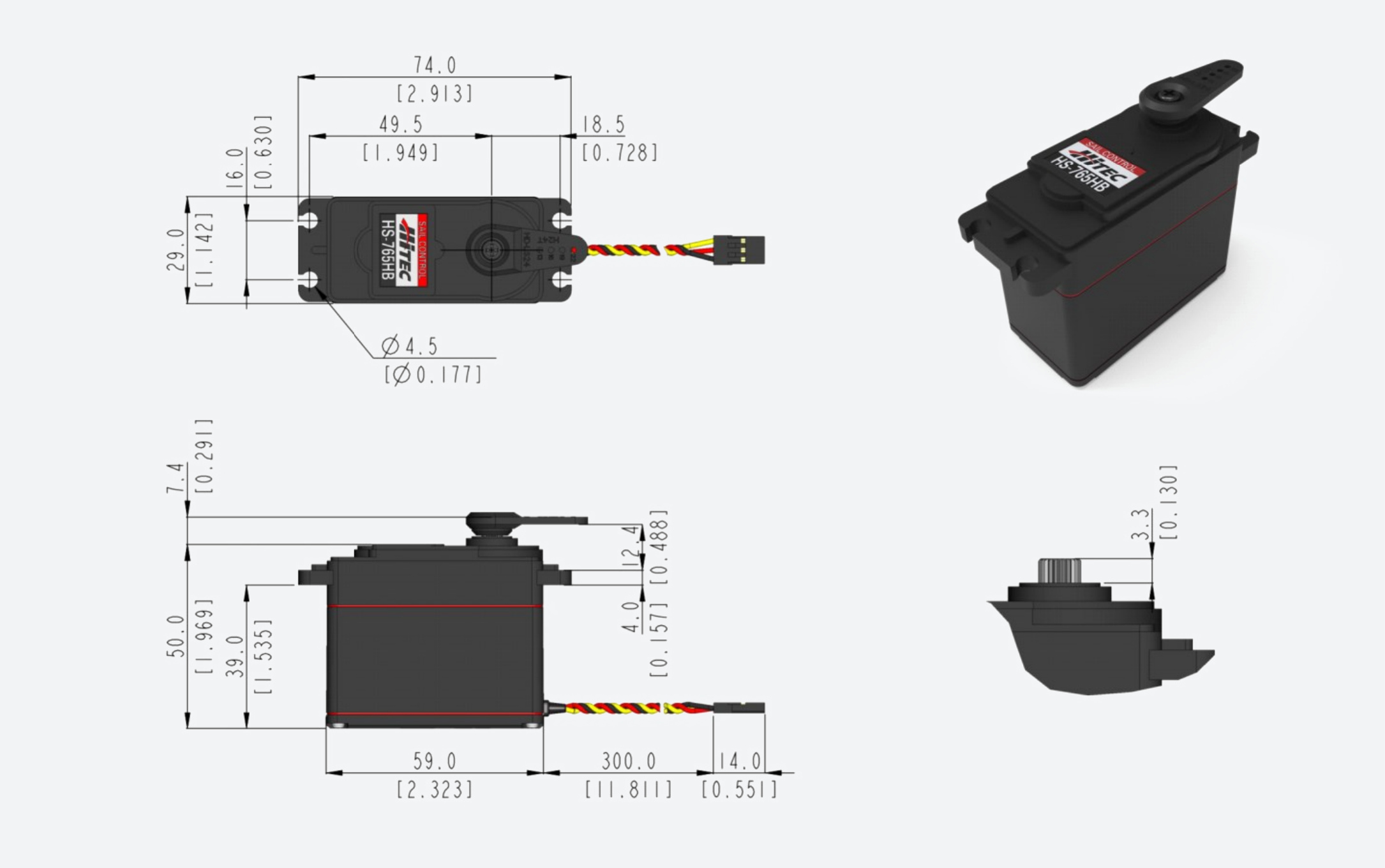

Dimensions (L×W×H)59 × 29 × 50 mm

Motor TypeCored Metal Brush

Gear TypeKarbonite

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters. Features • 4.9 inch Sail Arm with 140* Movement • Strong Karbonite Gear Train • Dual Ball Bearing-Supported Output Shaft • Water and Dust-Resistant Case

Downloads

hs-765hb_3dmodel

ZIP Datasheet

HS-765HB_Specsheet(v2.1)_22L

PDF Datasheet
