HS-5245MG
HS-5245MG
HS-5245MG Click to enlarge

HS-5245MG

Mini Metal Gear Servo

PWM Cored Metal Brush
5.5
KGF·CM
Max Torque
0.12
SEC/60°
Speed
32
GRAMS
Weight
Torque4.4 ~ 5.5 kgf·cm
Speed0.15 ~ 0.12 sec/60°
Operating Voltage4.8 ~ 6 V

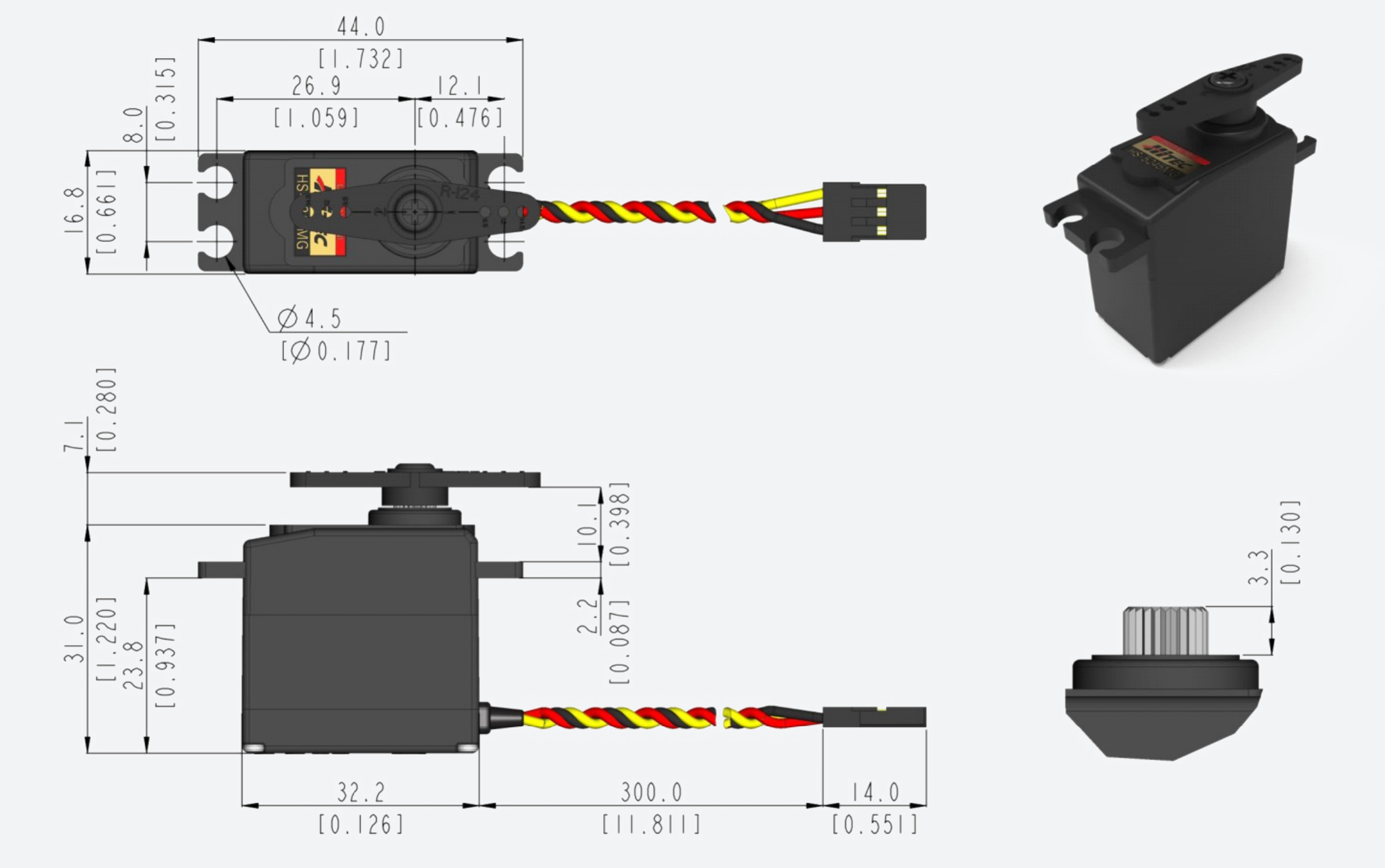

Dimensions (L×W×H)32.4 × 16.8 × 30.8 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo. Features • High Speed and High Torque in a Mini Package • Durable Metal Gears • Dual Ball Bearings • Standard Programmable Digital Circuit for Greater Holding Power • Fast, High Torque Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
hs-5245mg_3dmodl
ZIP Datasheet
HS-5245MG_Specsheet(v2.1)_22K
PDF Datasheet
More Products
View All →
MD245MW-RS485
MD245MW-RS485
17mm, Coreless, Wide Voltage, High Speed, Metal Gear Actuator(7.4V) / RS-485 Protocol

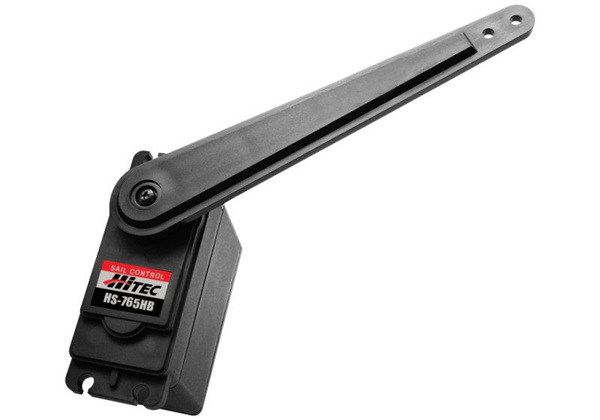

HS-765HB
