MD250MW

15mm, Coreless, Wide Voltage, High Torque, Metal Gear Actuator(7.4V)

PWM TTL Cored Carbon Brush

7.5

KGF·CM

Max Torque

0.13

SEC/60°

Speed

GRAMS

Weight

Torque4.9 ~ 7.5 kgf·cm

Speed0.2 ~ 0.13 sec/60°

Operating Voltage4.8 ~ 7.4 V

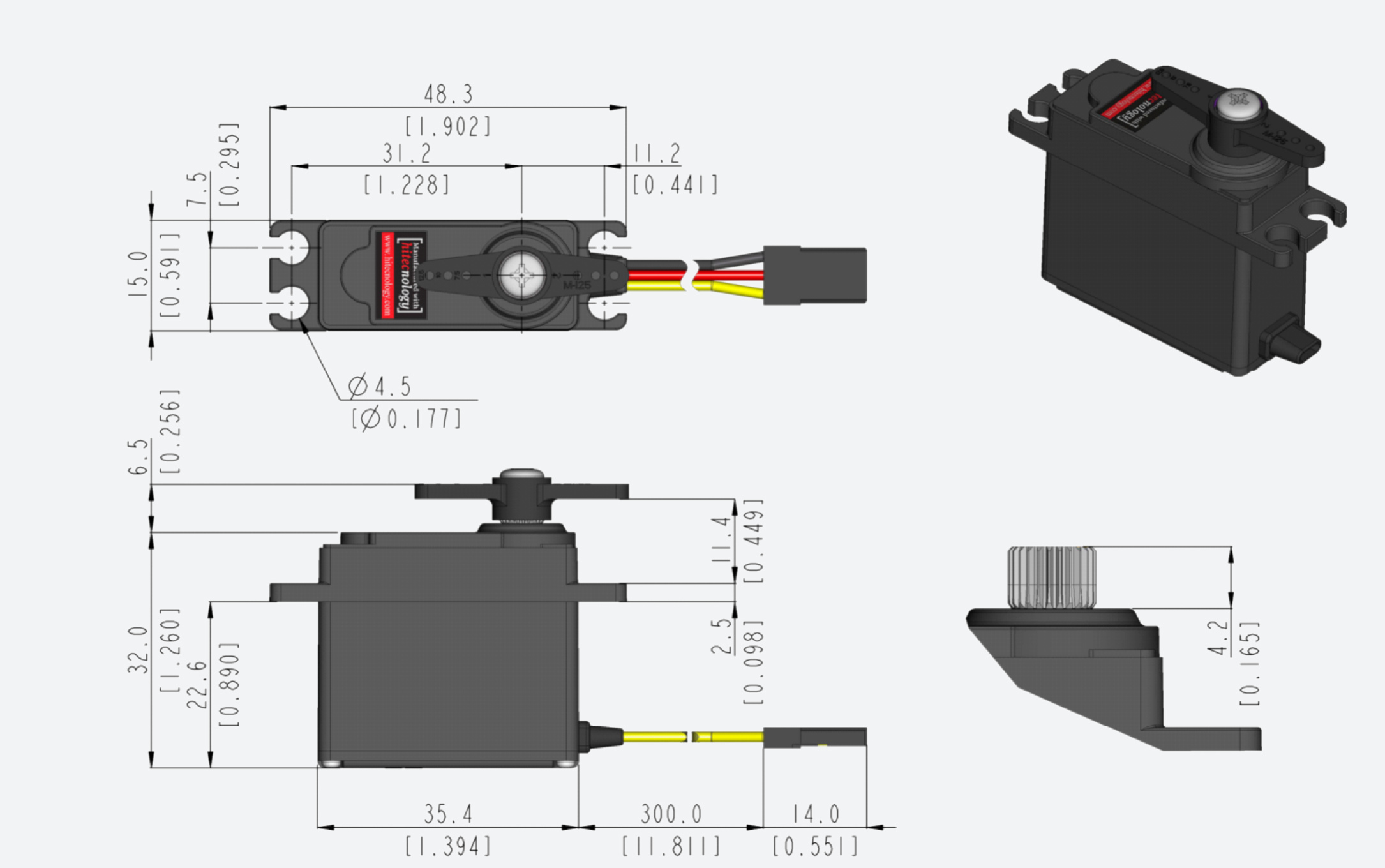

Dimensions (L×W×H)35 × 15 × 33 mm

Motor TypeCored Carbon Brush

Gear TypeSteel

ProtocolsPWM,TTL

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable Digital Circuit • PWM & TTL Protocol (Standard) <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP-65 Rated Cases • 25 Tooth Output Shaft • Customization and Modification Options Available • Custom Connector Options Available Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
