HS-40

Economical, Nano, Nylon Gear Servo

PWM Cored Metal Brush

0.75

KGF·CM

Max Torque

0.11

SEC/60°

Speed

4.8

GRAMS

Weight

Torque0.6 ~ 0.75 kgf·cm

Speed0.12 ~ 0.11 sec/60°

Operating Voltage4.8 ~ 6 V

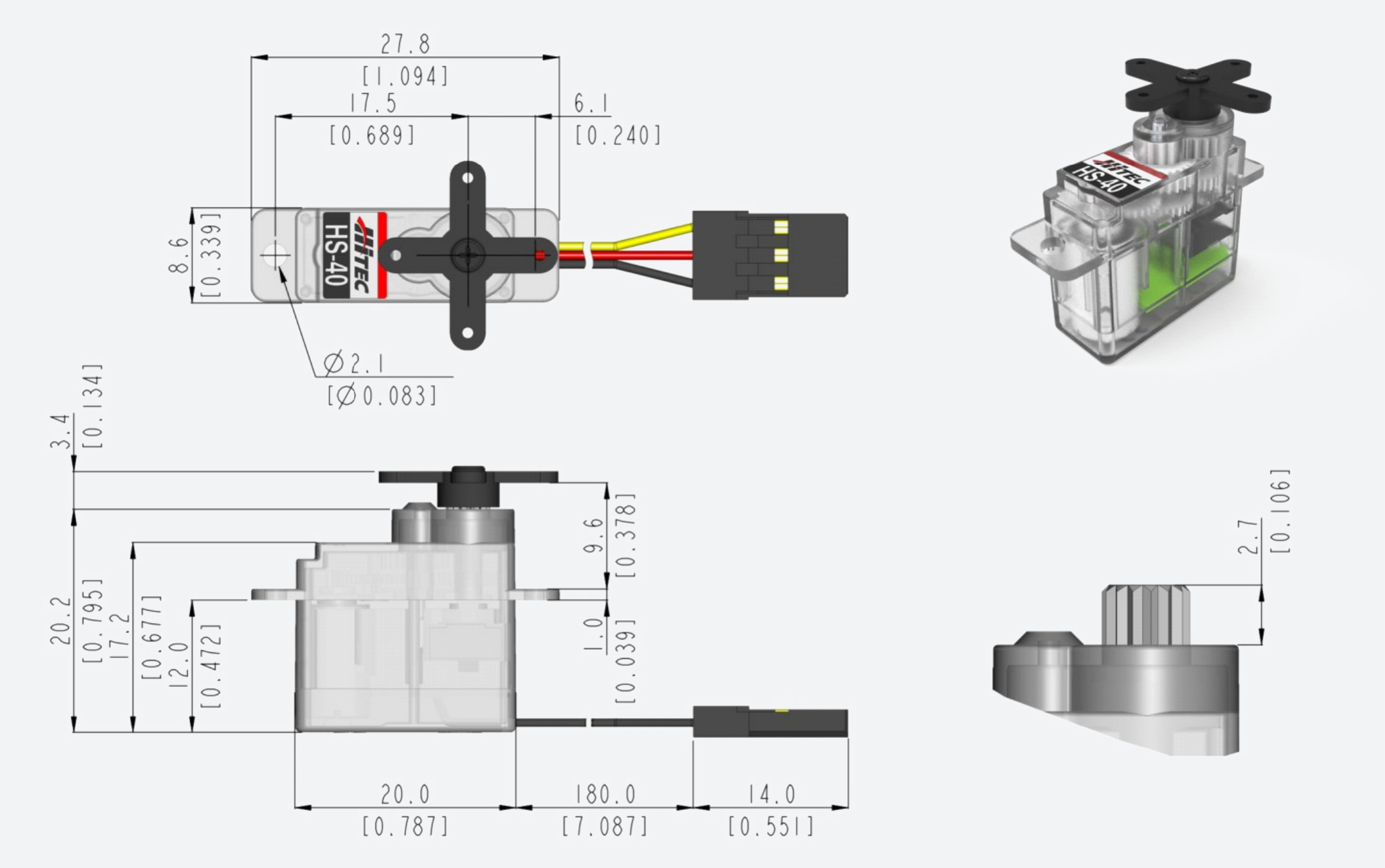

Dimensions (L×W×H)20 × 8.6 × 17 mm

Motor TypeCored Metal Brush

Gear TypeNylon

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Our research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet! Features • Nylon Gears • Three-Pole Motor • 4.8 & 6.0V Operation • Economically Priced

Downloads

HS-40_3dmodel

ZIP Datasheet

HS-40_Specsheet(v2.1)_22L

PDF Datasheet
