HS-5646WP
HS-5646WP
HS-5646WP Click to enlarge

HS-5646WP

High Voltage, High Torque, Programmable Digital Waterproof Servo

PWM Cored Metal Brush
12.9
KGF·CM
Max Torque
0.18
SEC/60°
Speed
61
GRAMS
Weight
Torque11.3 ~ 12.9 kgf·cm
Speed0.2 ~ 0.18 sec/60°
Operating Voltage6 ~ 7.4 V

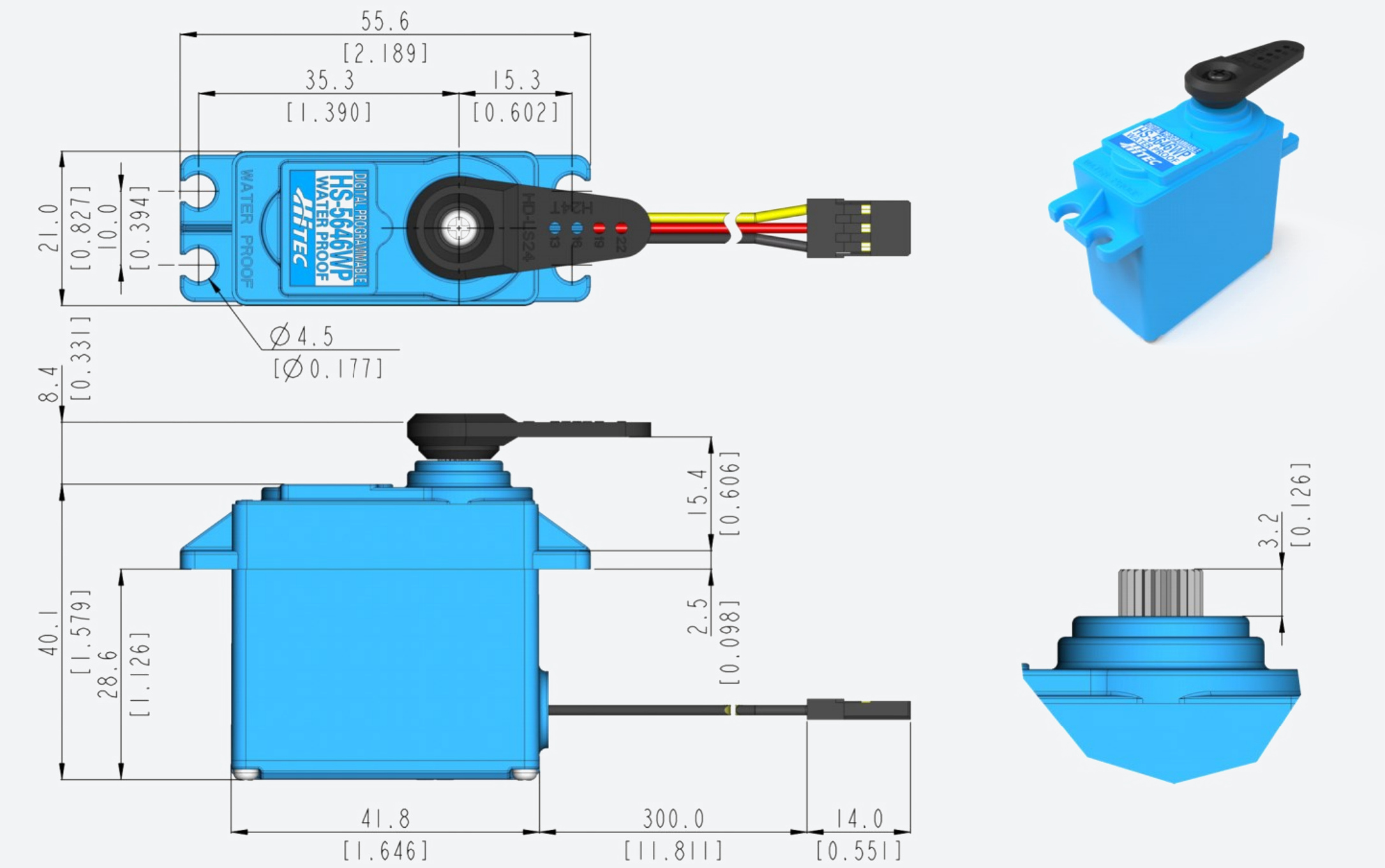

Dimensions (L×W×H)41.8 × 21 × 40 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-5646WP will dependably keep your mind at ease. The upgraded version of this servo is now available : D646WP Features • Industry's First IP67-Rated Waterproof Case • Strong Three-Pole Ferrite Motor • Metal Gear Train with MP First Gear • Dual Ball Bearing-Supported Output Shaft • 7.4v 2-Cell LiPo Capability • Standard Programmable Digital Circuitry Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
hs-5646wp_3dmodl
ZIP Datasheet
HS-5646WP_Specsheet(v2.1)_22K
PDF Datasheet
