HS-805MG

Mega Giant Scale, Metal Gear Servo

PWM Cored Carbon Brush

24.7

KGF·CM

Max Torque

0.14

SEC/60°

Speed

197

GRAMS

Weight

Torque19.8 ~ 24.7 kgf·cm

Speed0.19 ~ 0.14 sec/60°

Operating Voltage4.8 ~ 6 V

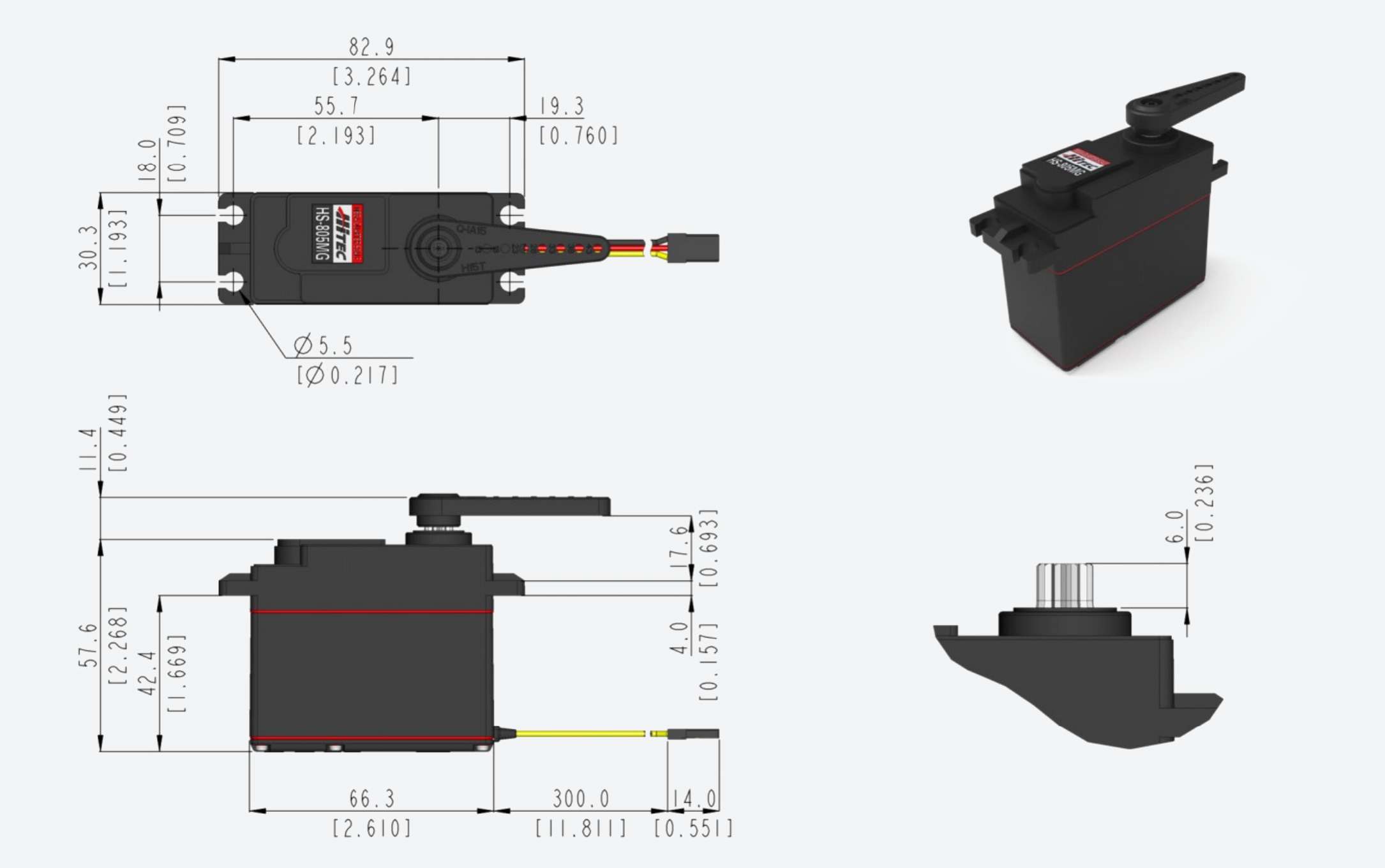

Dimensions (L×W×H)66 × 30 × 57.6 mm

Motor TypeCored Carbon Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The HS-805MG heavy duty supersized servo was designed to handle the punishment dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to take abuse and keep on going. Features • Large 8mm Output shaft • Dual Ball Bearings • Heavy Duty Metal Gear Train • Water and Dust Resistant Case

Downloads

HS-805MG_3dmodel

ZIP Datasheet

HS-805MG_Specsheet(v2.1)_22L

PDF Datasheet
