D85MG
D85MG
D85MG Click to enlarge

D85MG

Micro, 32-Bit, Metal Gear Servo

PWM TTL Cored Metal Brush
4.3
KGF·CM
Max Torque
0.13
SEC/60°
Speed
24
GRAMS
Weight
Torque3.6 ~ 4.3 kgf·cm
Speed0.17 ~ 0.13 sec/60°
Operating Voltage4.8 ~ 6 V

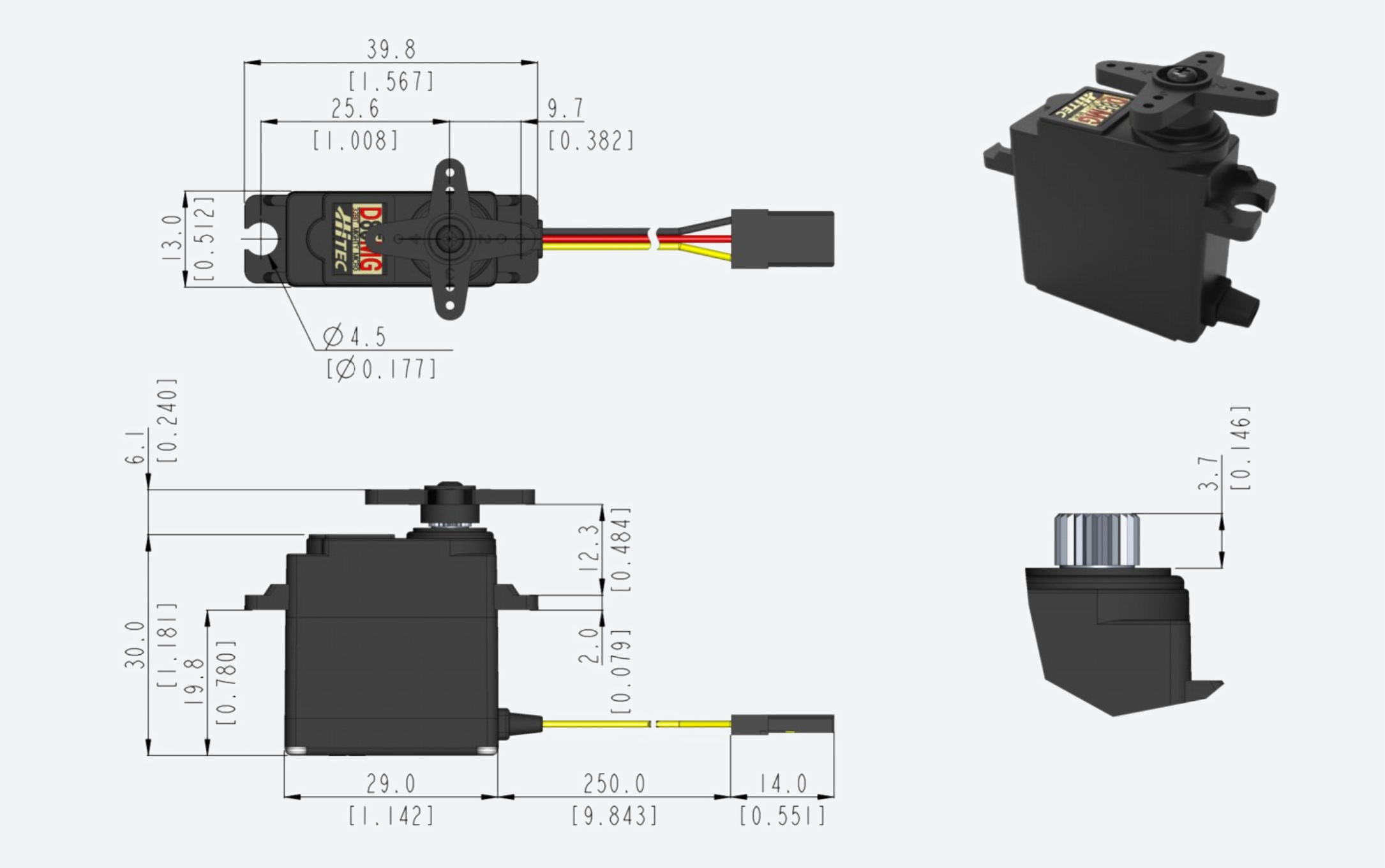

Dimensions (L×W×H)29 × 13 × 30 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM,TTL
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Engineered with our state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the  popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance. • Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles                     (no internal combustion engines, electric only)
Downloads
D85MG_3dmode
ZIP Datasheet
D85MG_Specsheet(v2.1)_22I
PDF Datasheet
