HS-785HB

Karbonite, 3.5 Turn Winch Servo

PWM Cored Metal Brush

13.2

KGF·CM

Max Torque

0.23

SEC/60°

Speed

108.8

GRAMS

Weight

Torque11 ~ 13.2 kgf·cm

Speed0.28 ~ 0.23 sec/60°

Operating Voltage4.8 ~ 6 V

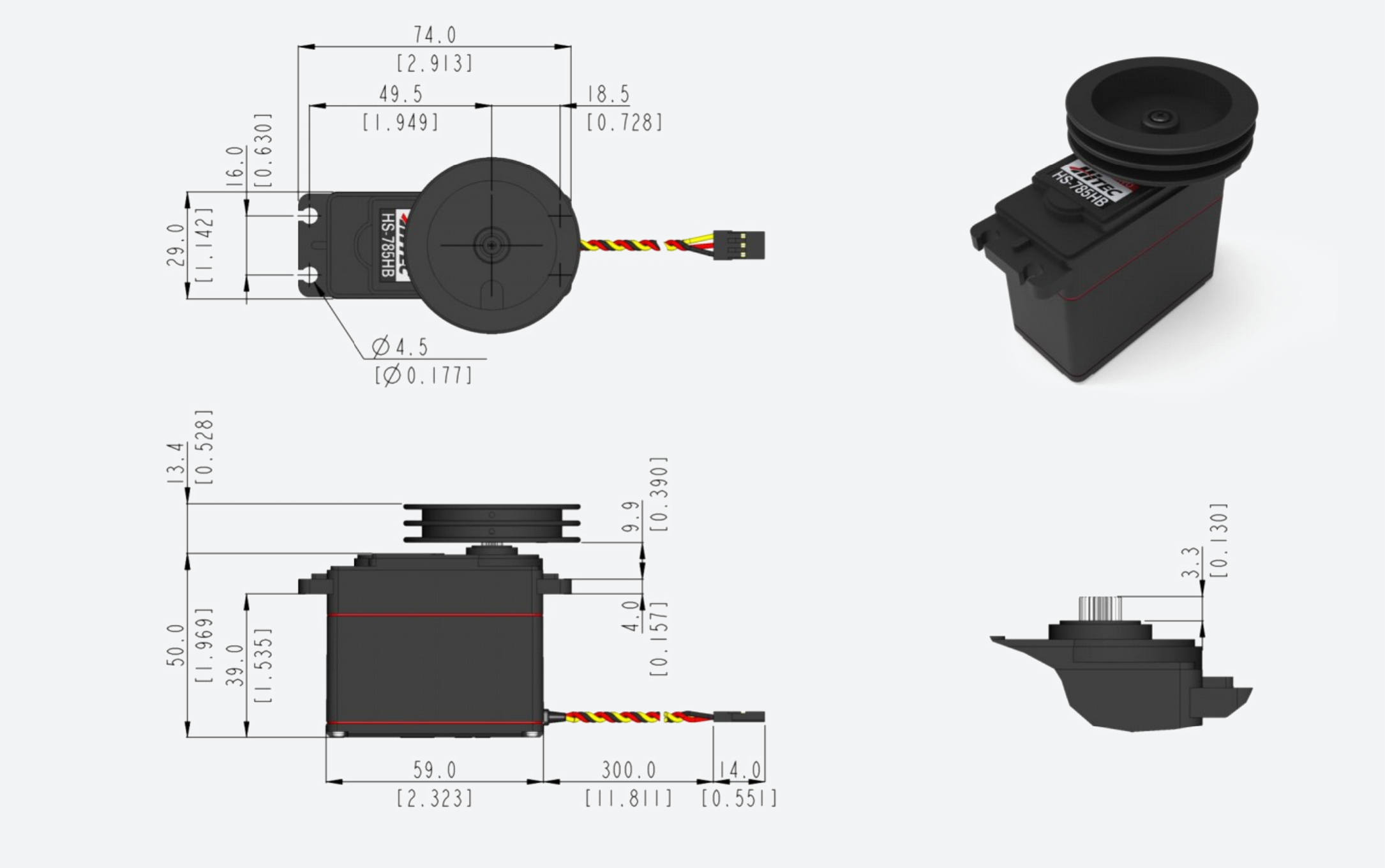

Dimensions (L×W×H)59 × 29 × 50 mm

Motor TypeCored Metal Brush

Gear TypeKarbonite

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The HS-785HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service. Features • Large Drum Wheel with 3.5 Revolutions of Travel • Strong Karbonite Gear Train • Dual Ball Bearing-Supported Output Shaft • Water and Dust-Resistant Case

Downloads

hs-785hb_3dmodel

ZIP Datasheet

HS-785HB_Specsheet(v2.1)_22L

PDF Datasheet
