HS-65MG

Mighty Metal Gear Feather Servo

PWM Cored Metal Brush

2.2

KGF·CM

Max Torque

0.11

SEC/60°

Speed

11.9

GRAMS

Weight

Torque1.8 ~ 2.2 kgf·cm

Speed0.14 ~ 0.11 sec/60°

Operating Voltage4.8 ~ 6 V

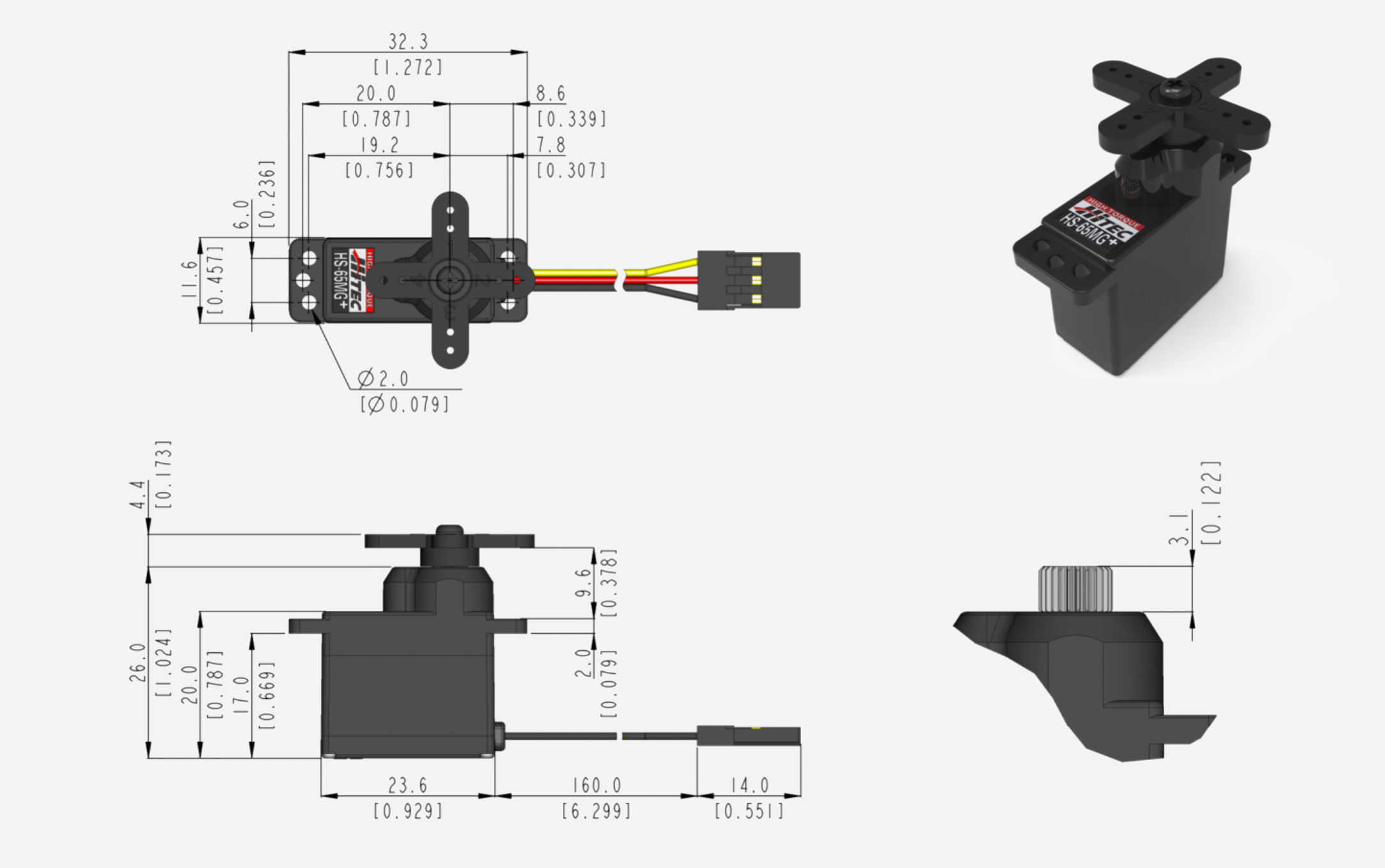

Dimensions (L×W×H)23.6 × 11.6 × 24 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars. Features • Top Selling Metal Gear Feather Servo • High Performance Three-Pole Motor • Rugged Metal Gear for Added Durability • Ball Bearing-Supported Output Shaft

Downloads

HS-65MG_3dmodel

ZIP Datasheet

HS-65MG_Specsheet(v2.1)_22L

PDF Datasheet
