HS-5496MH

HV, Standard, Metal Gear Digital Sport Servo

PWM Cored Metal Brush

7.2

KGF·CM

Max Torque

0.15

SEC/60°

Speed

GRAMS

Weight

Torque6 ~ 7.2 kgf·cm

Speed0.18 ~ 0.15 sec/60°

Operating Voltage6 ~ 7.4 V

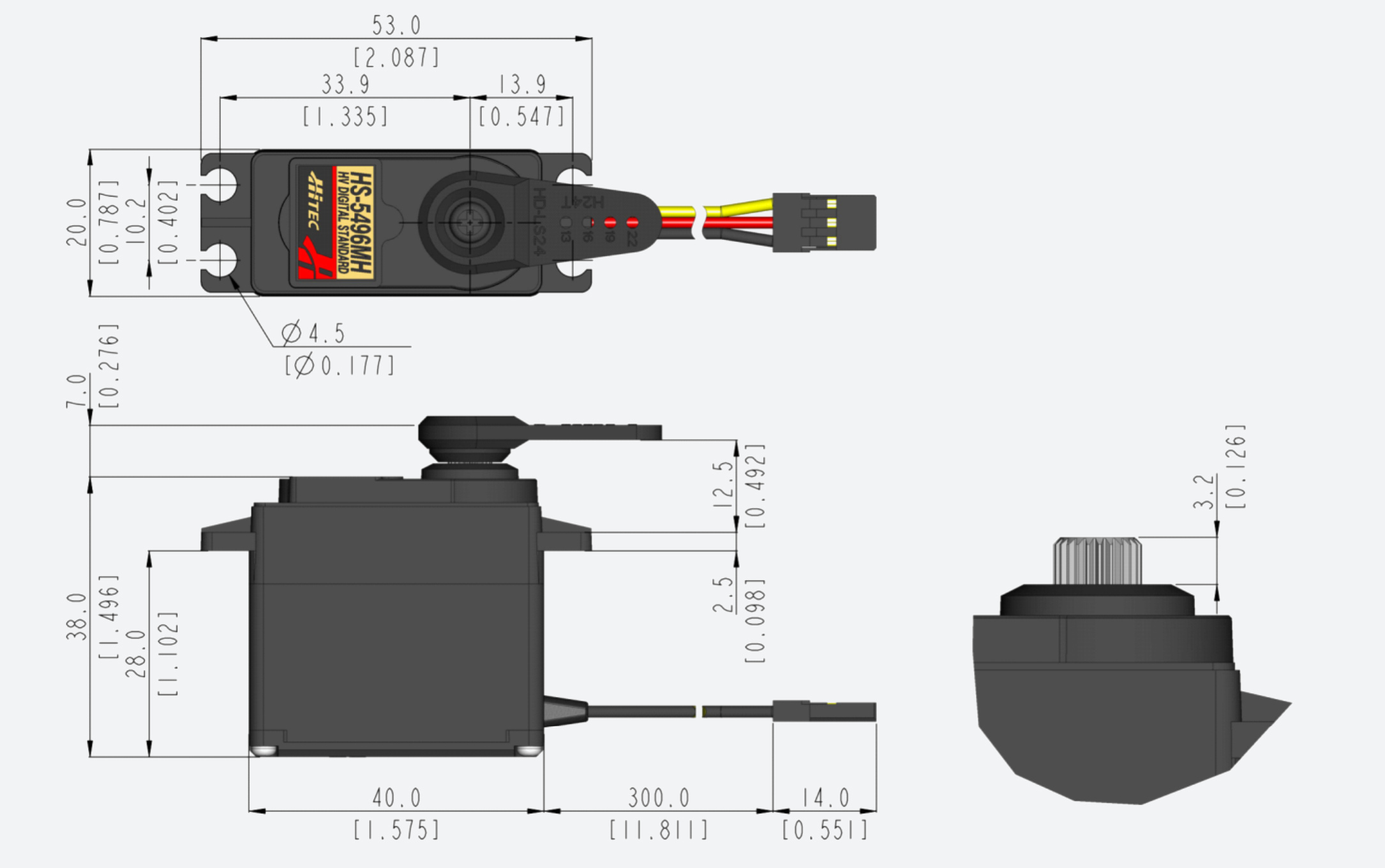

Dimensions (L×W×H)39.8 × 19.8 × 38 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Digital Performance at an Analog Price At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5496MH metal gear digital sport servo. Based on the popular HS-5485HB, the HS-5496MH is the perfect match for match for sport airplanes up to 25% scale as well as sport cars and trucks. With 7.4 volt, 2-cell LiPo battery capability, The HS-5496MH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec. Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
