HS-5645MG

High Torque, Metal Gear Digital Sport Servo

PWM Cored Metal Brush

12.1

KGF·CM

Max Torque

0.18

SEC/60°

Speed

GRAMS

Weight

Torque10.3 ~ 12.1 kgf·cm

Speed0.23 ~ 0.18 sec/60°

Operating Voltage4.8 ~ 6 V

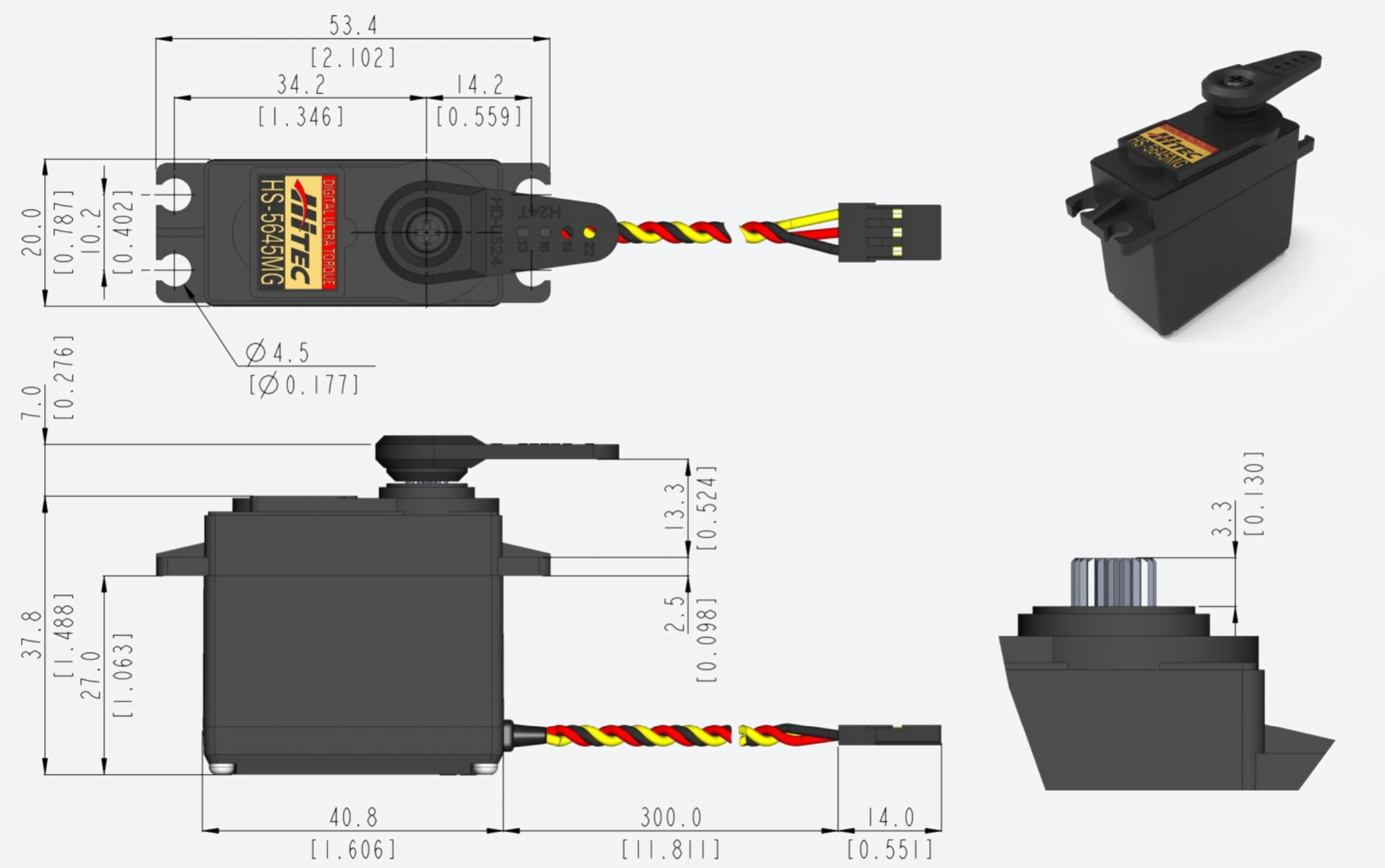

Dimensions (L×W×H)40.6 × 19.8 × 37.8 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The digital version of our popular HS-645 is the HS-5645MG, featuring a programmable digital circuit and our custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother. Note: Metal Horn (R-ML) Included Features • Top Selling High Torque Standard Digital Servo • Strong Three-Pole Ferrite Motor • Metal Gear Train with MP Gear Technology • Dual Ball Bearing-Supported Output Shaft • Standard Programmable Digital Circuit Provides Fine Resolution and Centering Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
