Hitec's latest DB-Series brushless servo is the high-performance, low profile DB778WP. Manufactured with our “hitecnology” industrial servo innovation, the DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars. Engineered with an ultra-efficient brushless motor, high-resolution digital circuit, hardened steel gears and an all-aluminum, IP-67 rated waterproof case, the DB778WP excels when pushed to the limits on ultra-high bite carpet or clay tracks.
Features
• Voltage Range is 4.0V - 8.4V
• Ultra-Efficient Brushless Motor
• Hardened Steel Gears
• All Aluminum Case
• IP-67 Waterproof Rated
• High Response, High Resolution Circuitry
• 32-Bit MCU Technology / 4096 Resolution
• Smart Sense Technology for Servo Analytics
• Full Programmability with DPC11 or HFP-30 (sold separately)
• H25T Industry Standard Output Spline
DB778WP Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.0V ~ 8.4V
Speed (Second @ 60°) 0.10 @ 7.4V
Maximum Torque Range oz. / in. 249.97 @ 7.4V
Maximum Torque Range kg. / cm. 18.0 @ 7.4V
Current Draw at Idle 28mA @ 7.4V
No Load Operating Current Draw 600mA @ 7.4V
Stall Current Draw 4,500mA @ 7.4V
Dead Band Width 1usec

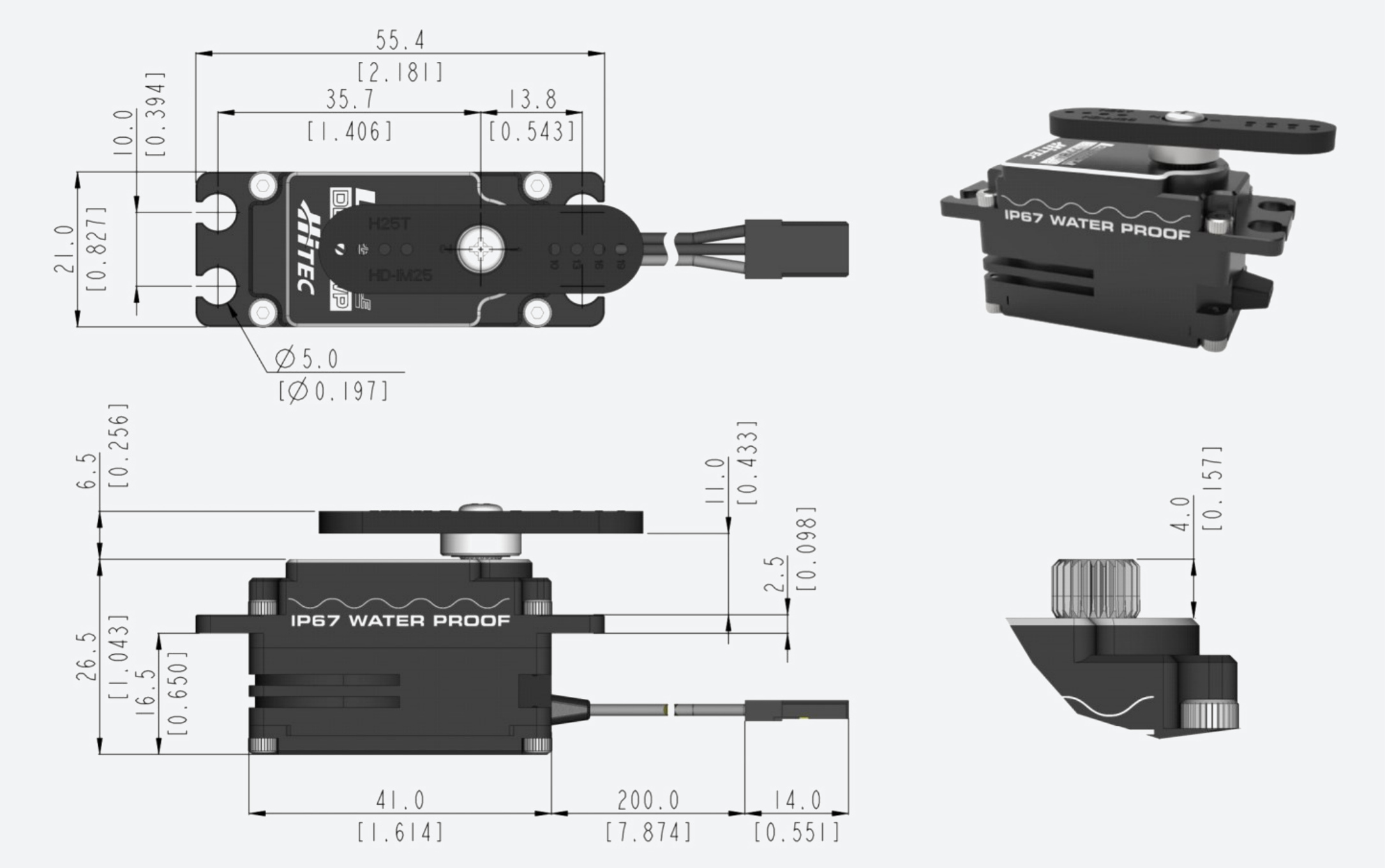

Physical Specifications
Dimensions (Inches) 1.614 x 0.827 x 1.043 in.
Dimensions (Metric) 41.0 x 21.0 x 26.5
Weight (Ounces) 2.328
Weight (Gram) 66.0
Circuit Type 32bit Programable Digital
Motor Type Brushless
Gear Material 5 Hardened Steel Gears
Bearing Type 2 Ball Bearing
Output Shaft (type / Ømm) H25T / Ø6
Case Material Rugged Aluminum Alloy
IP-Rating IP-67
Connector Gauge (AWG) / Strand Count 20AWG
Radio Control Applications
Parkflyer N / A
Sport Plane N / A
Sailplane N / A
3D Performance N / A
Scale N / A
Electric Helicopter N/A
Gas Helicopter N/A
On Road 1/10th
Monster Truck N/A
Buggies 1/10th
Truggies N/A
Short Course / Truck N/A
Crawlers N / A
Sail Boat N / A
Power Boat N / A
