MD845WP

32mm Standard Steel Gear Waterproof

PWM TTL Cored Carbon Brush

KGF·CM

Max Torque

0.17

SEC/60°

Speed

227

GRAMS

Weight

Torque32.5 ~ 50 kgf·cm

Speed0.26 ~ 0.17 sec/60°

Operating Voltage4.8 ~ 7.4 V

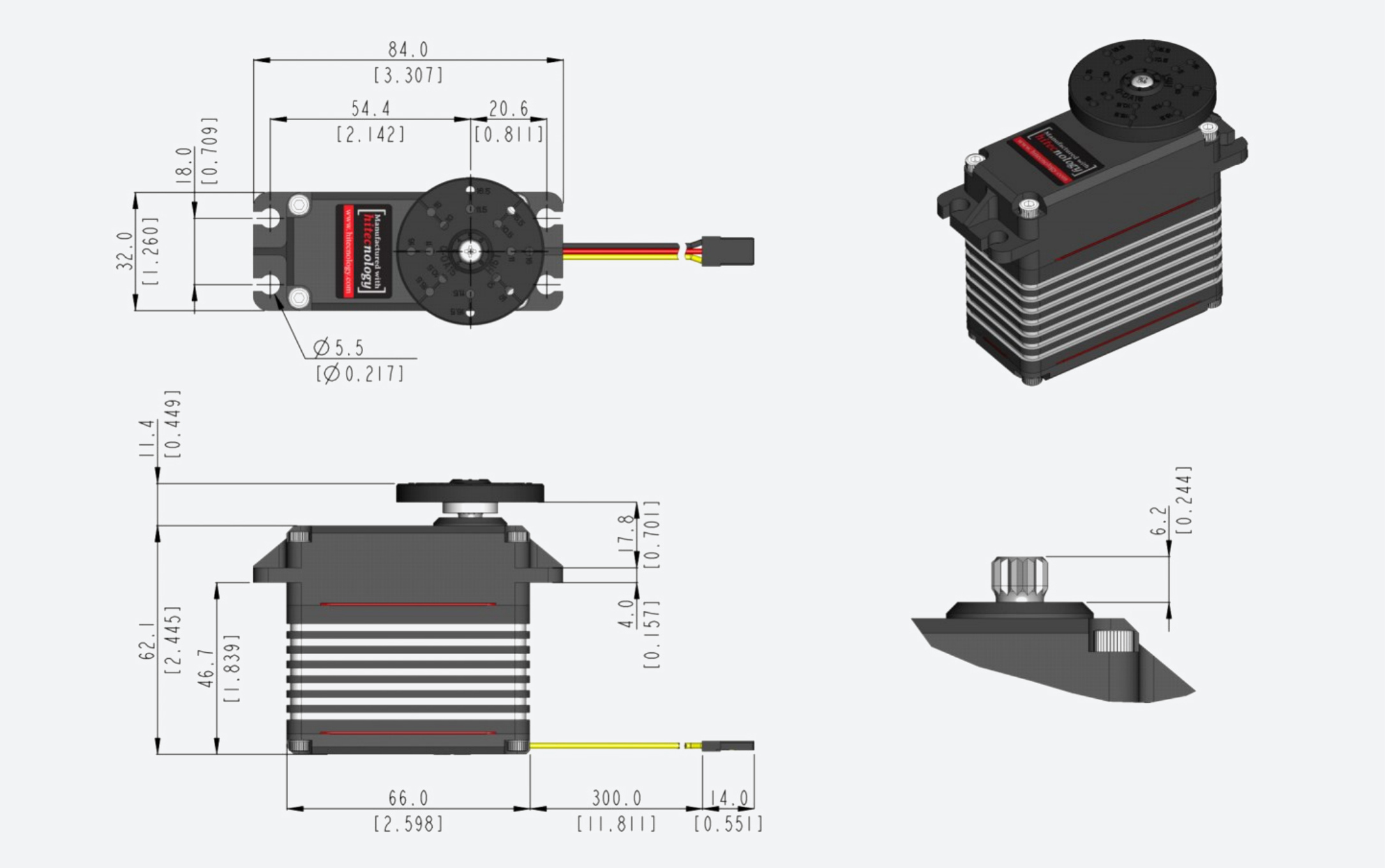

Dimensions (L×W×H)66 × 32 × 62 mm

Motor TypeCored Carbon Brush

Gear TypeSteel

ProtocolsPWM,TTL

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable PWM Digital Circuit • PWM or TTL Protocol Capability <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 7.4V) • Heavy-Duty, Long Life Motors • IP67 Rated Cases • 15 Tooth Output Shaft • Customization and Modification Options Available • Custom Connector Options Available Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
