HS-755HB
HS-755HB
HS-755HB Click to enlarge

HS-755HB

Karbonite Gear, Giant Scale Servo

PWM Cored Metal Brush
13.2
KGF·CM
Max Torque
0.23
SEC/60°
Speed
97.5
GRAMS
Weight
Torque11 ~ 13.2 kgf·cm
Speed0.28 ~ 0.23 sec/60°
Operating Voltage4.8 ~ 6 V

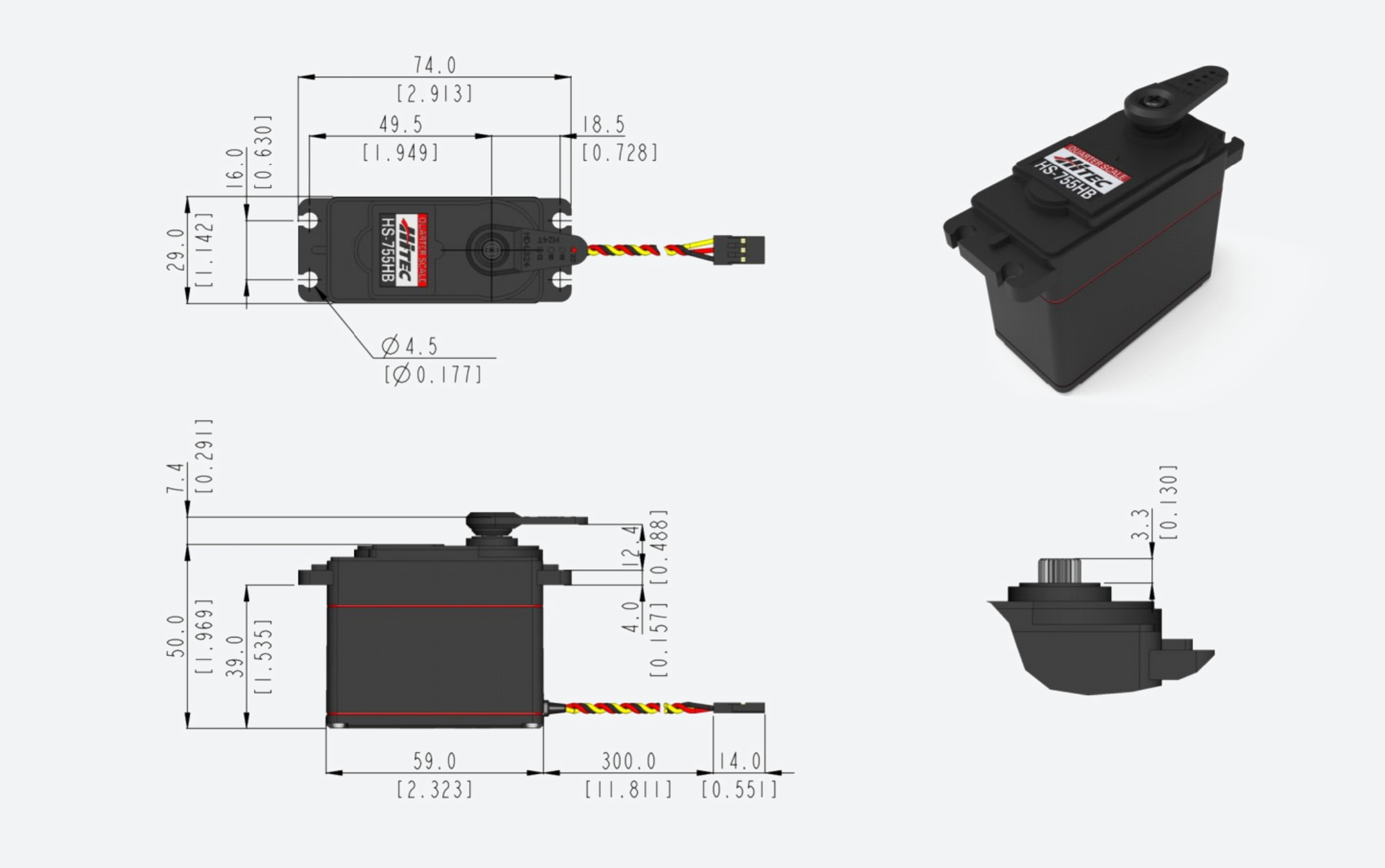

Dimensions (L×W×H)59 × 29 × 50 mm
Motor TypeCored Metal Brush
Gear TypeKarbonite
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Hitec’s expansive line-up of servos include the HS-755HB and HS-755MG “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts. Features • Economical Choice in a Giant, Analog Servo • Tough Karbonite Gears • Dual Ball Bearing-Supported Output Shaft • Water and Dust Resistant Case
Downloads
hs-755hb_3dmodel
ZIP Datasheet
HS-755HB_Specsheet(v2.1)_22L
PDF Datasheet
