HS-5055MG
HS-5055MG
HS-5055MG Click to enlarge

HS-5055MG

Economy Metal Gear Feather Servo

PWM Cored Metal Brush
1.6
KGF·CM
Max Torque
0.17
SEC/60°
Speed
9.5
GRAMS
Weight
Torque1.3 ~ 1.6 kgf·cm
Speed0.2 ~ 0.17 sec/60°
Operating Voltage4.8 ~ 6 V

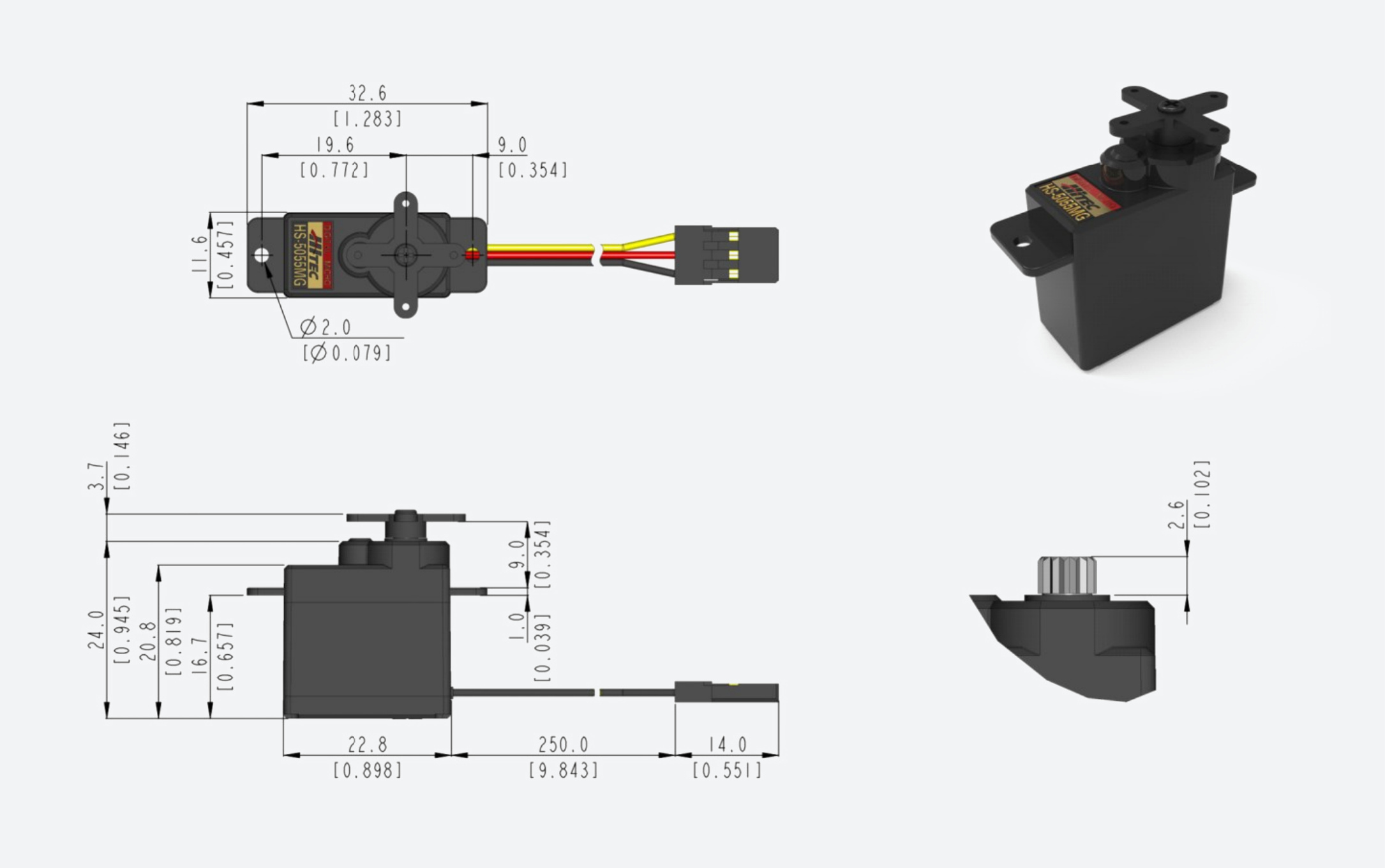

Dimensions (L×W×H)22.8 × 11.6 × 24 mm
Motor TypeCored Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Since its introduction, the HS-55 has set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Enter the new HS-5055MG digital, metal geared version... with this new servo Hitec takes ultra micro performance to the next level without breaking the bank. The new HS-5055MG is a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes. Features • Digital Circuit for Increased Performance and Holding Power • Smooth Coreless Motor • Rugged Metal Gears • Standard Programmable Digital Circuit • Economical, Feather, Digital Servo Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
hs-5055mg_3dmodl
ZIP Datasheet
HS-5055MG_Specsheet(v2.1)_22K
PDF Datasheet
