D89MW
D89MW
D89MW Click to enlarge

D89MW

32-Bit, Wide Voltage, Metal Gear Servo

PWM TTL Coreless
8.5
KGF·CM
Max Torque
0.11
SEC/60°
Speed
25
GRAMS
Weight
Torque5.3 ~ 8.5 kgf·cm
Speed0.17 ~ 0.11 sec/60°
Operating Voltage4.8 ~ 7.4 V

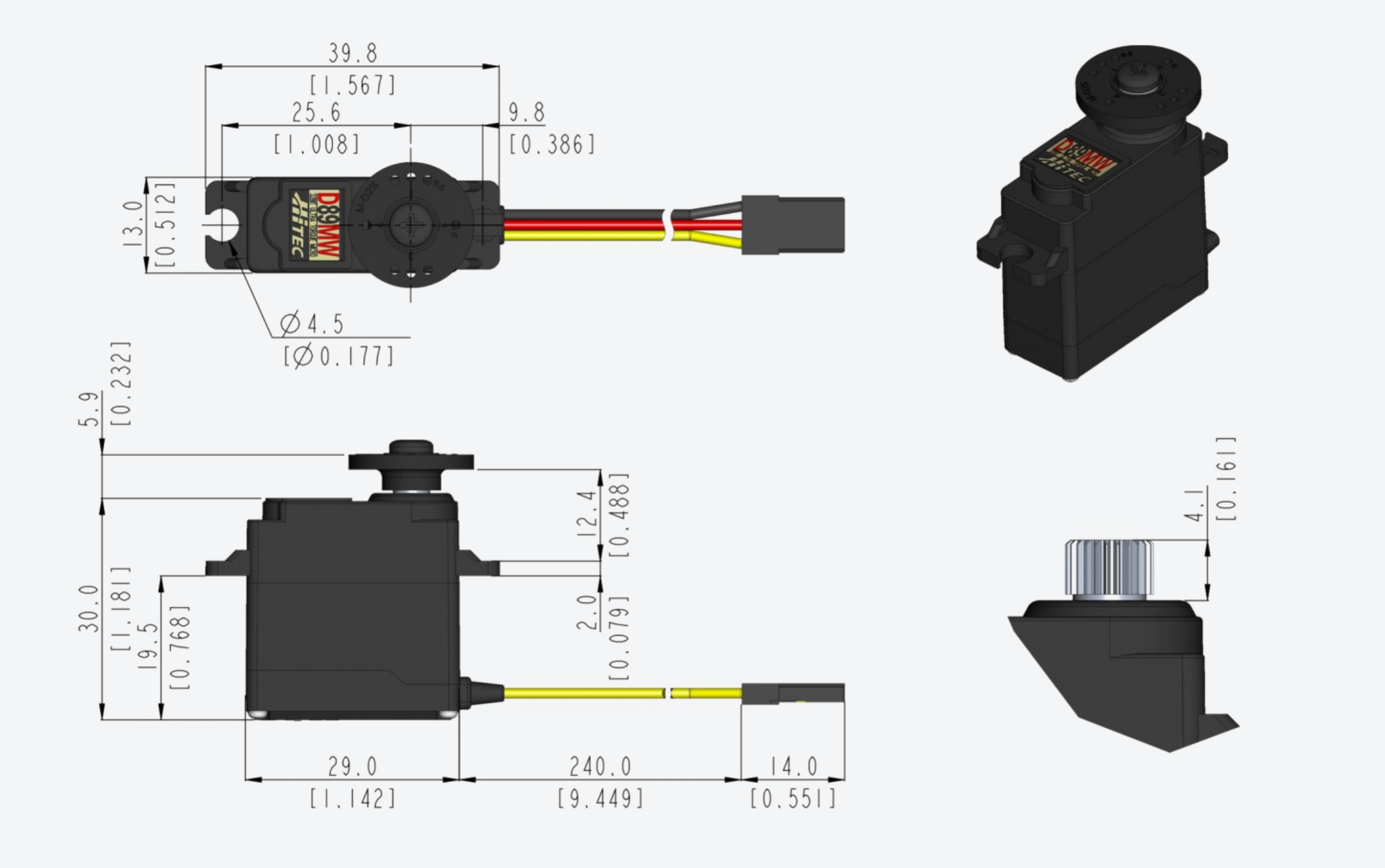

Dimensions (L×W×H)29 × 13 × 30 mm
Motor TypeCoreless
Gear TypeMetal
ProtocolsPWM,TTL
Product Inquiry
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.
Downloads
D89MW_3dmode
ZIP Datasheet
D89MW_Specsheet(v2.1)_22H
PDF Datasheet
