MD65MG-DroneCAN

11.6mm, Cored, Standard Voltage, High Speed, Metal Gear Actuator (6V) / DroneCAN, UAVCAN(v0.0)

DroneCAN Cored Metal Brush

2.2

KGF·CM

Max Torque

0.14

SEC/60°

Speed

GRAMS

Weight

Torque1.8 ~ 2.2 kgf·cm

Speed0.11 ~ 0.14 sec/60°

Operating Voltage4.8 ~ 6 V

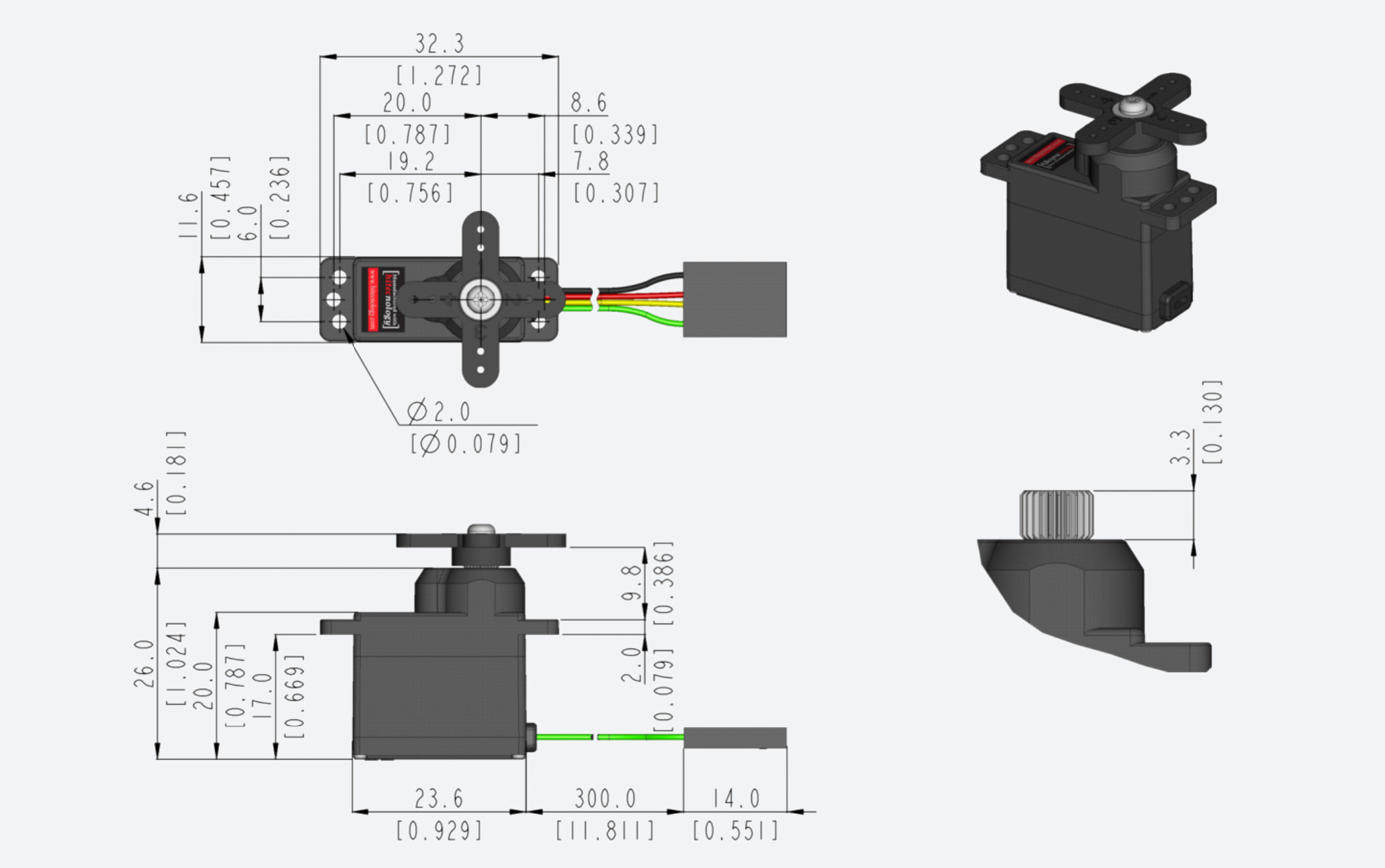

Dimensions (L×W×H)23.6 × 11.6 × 25.8 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsDroneCAN

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Features • High Resolution 32-bit Programmable Digital Circuit • UAVCAN , DroneCAN(v0.0) Protocol Capability <- Manual Link • Magnetic Encoder Position Sensor • Wide Operating Voltage (4.8 ~ 6.0V) • Heavy-Duty, Long Life Motors • IP65 Rated Cases • Customization and Modification Options Available • Custom Connector Options Available Parts and Accessories • Replacement Gear Set • Replacement Case Set • Applicable Horns and Mounting Hardware Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Overload Protection • Data Save / Load • Program Reset
