HS-1005SGT

Industrial Grade, Giant Scale Servo

PWM Cored Carbon Brush

110

KGF·CM

Max Torque

0.19

SEC/60°

Speed

363

GRAMS

Weight

Torque84 ~ 110 kgf·cm

Speed0.26 ~ 0.19 sec/60°

Operating Voltage12 ~ 15 V

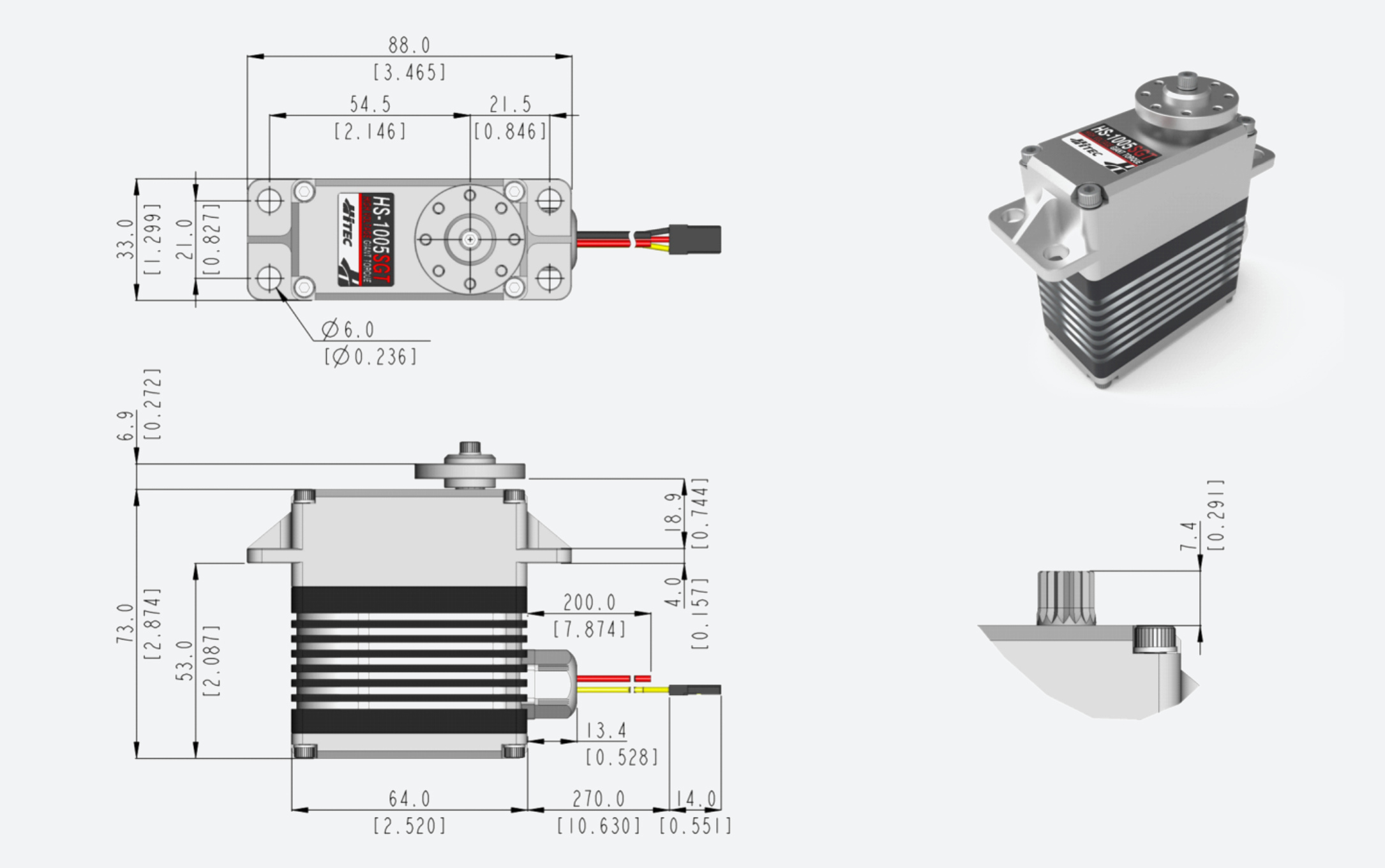

Dimensions (L×W×H)64 × 33 × 73 mm

Motor TypeCored Carbon Brush

Gear TypeSteel

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The ultra heavy duty, giant scale HS-1005SGT delivers digital precision and high voltage punch to your most demanding projects. Designed with an all-aluminum, EMI-shielded case, solid steel gears and non-programmable digital circuitry, this powerhouse servo can tackle the most extreme 1/5th scale vehicle stunts and giant scale aerobatic maneuvers in addition to the industrial applications that inspired its original design. Capable of operating on 14.8 volts, the HS-1005SGT is the ultimate in power and durability. Features • High Response Digital MOSFET Amplifier • Hardened Steel Gears with MPD First Gear • Long Life Potentiometer
