Our MDB1200WP industrial actuator offers a contactless magnetic encoder, brushless motor and IP67-certified water & dust-proof protection, making it suitable for many demanding industrial applications. This 30mm powerhouse delivers over 1500 oz-inches of torque at 7.4V and features an aluminum alloy case to dissipate heat, two ball bearings and five hardened steel gears, and PWM control protocol. Program numerous parameters to optimize the installation and performance for your industrial applications.
MDB1200WP Actuator Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.0V ~ 8.4V
Speed (Second @ 60°) 0.18 @ 7.4V
Maximum Torque Range oz. / in. 1,527.61 @ 7.4V
Maximum Torque Range kg. / cm. 110.0 @ 7.4V
Current Draw at Idle 20mA @ 7.4V
No Load Operating Current Draw 550mA @ 7.4V
Stall Current Draw 4,300mA @ 7.4V
Dead Band Width 2us
Physical Specifications

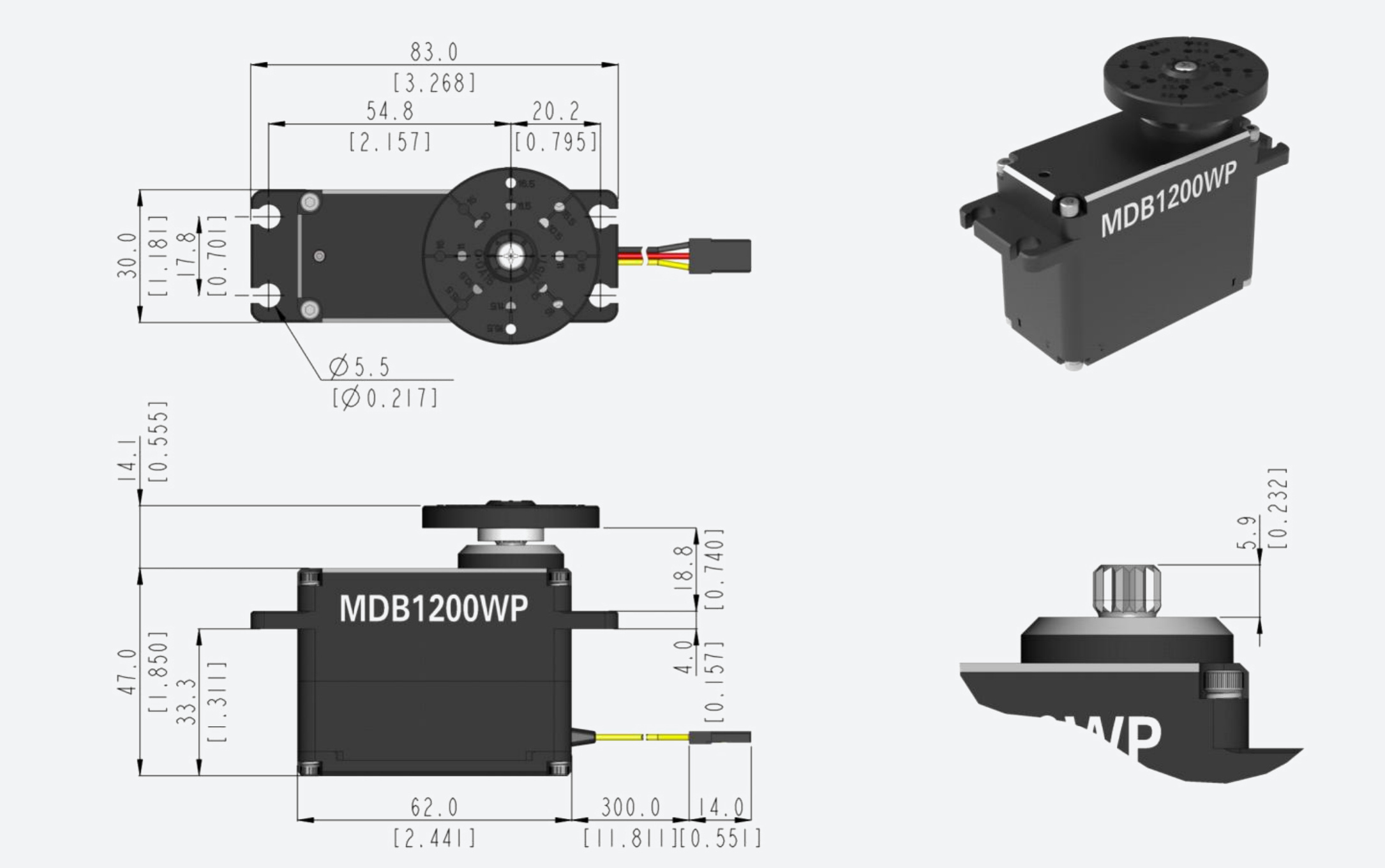

Dimensions (Inches) 2.441 x 1.181 x 1.850 in.
Dimensions (Metric) 62.0 x 30.0 x 47.0
Weight (Ounces) 9.171
Weight (Gram) 260.0
Circuit Type 32bit Programable Digital
Motor Type Brushless
Gear Material 5 Hardened Steel Gears
Bearing Type 2 Ball Bearings & 2 Needle Bearing
Output Shaft (type / Ømm) 15T(Ø8)
Case Material Aluminum Alloy
Dust / Water Resistance IP67 Rated
Connector Gauge (AWG) / Strand Count 20AWG
