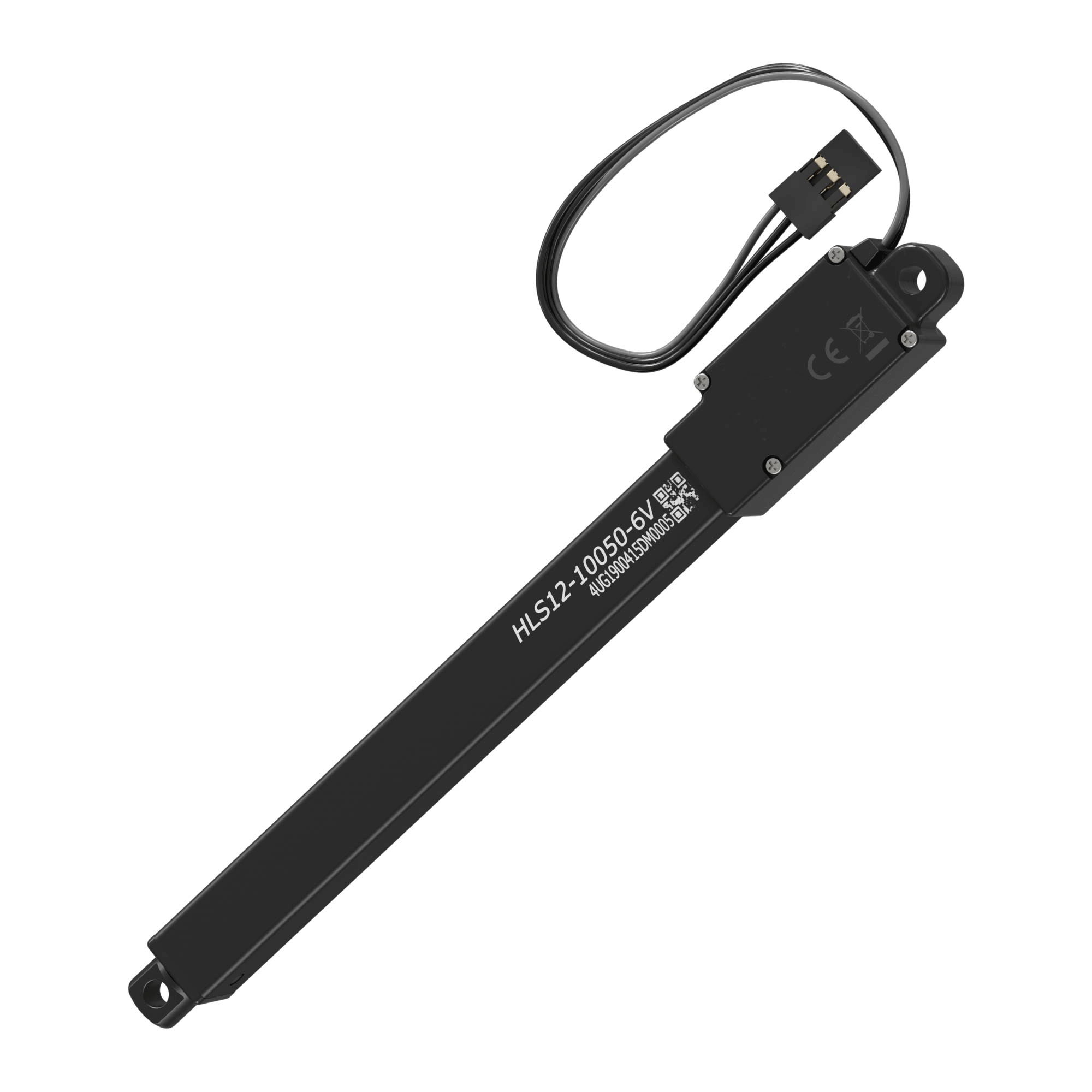

With 100mm of travel and a 50:1 gear ratio, the HLS12-10050 is ideal for longer stroke applications requiring the fastest transit speeds.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 900 - 2100µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Additional thrust is available with the high gear ratios of our
HLS12-100100, HLS12-100210 and HLS12-100380 versions.
Applications requiring less excursion will be better matched to our HLS12-30XX and HLS12-50XX series linear actuators.
