HS-625MG

High Speed, Metal Gear Premium Sport Servo

PWM Cored Metal Brush

6.8

KGF·CM

Max Torque

0.15

SEC/60°

Speed

55.2

GRAMS

Weight

Torque5.5 ~ 6.8 kgf·cm

Speed0.18 ~ 0.15 sec/60°

Operating Voltage4.8 ~ 6 V

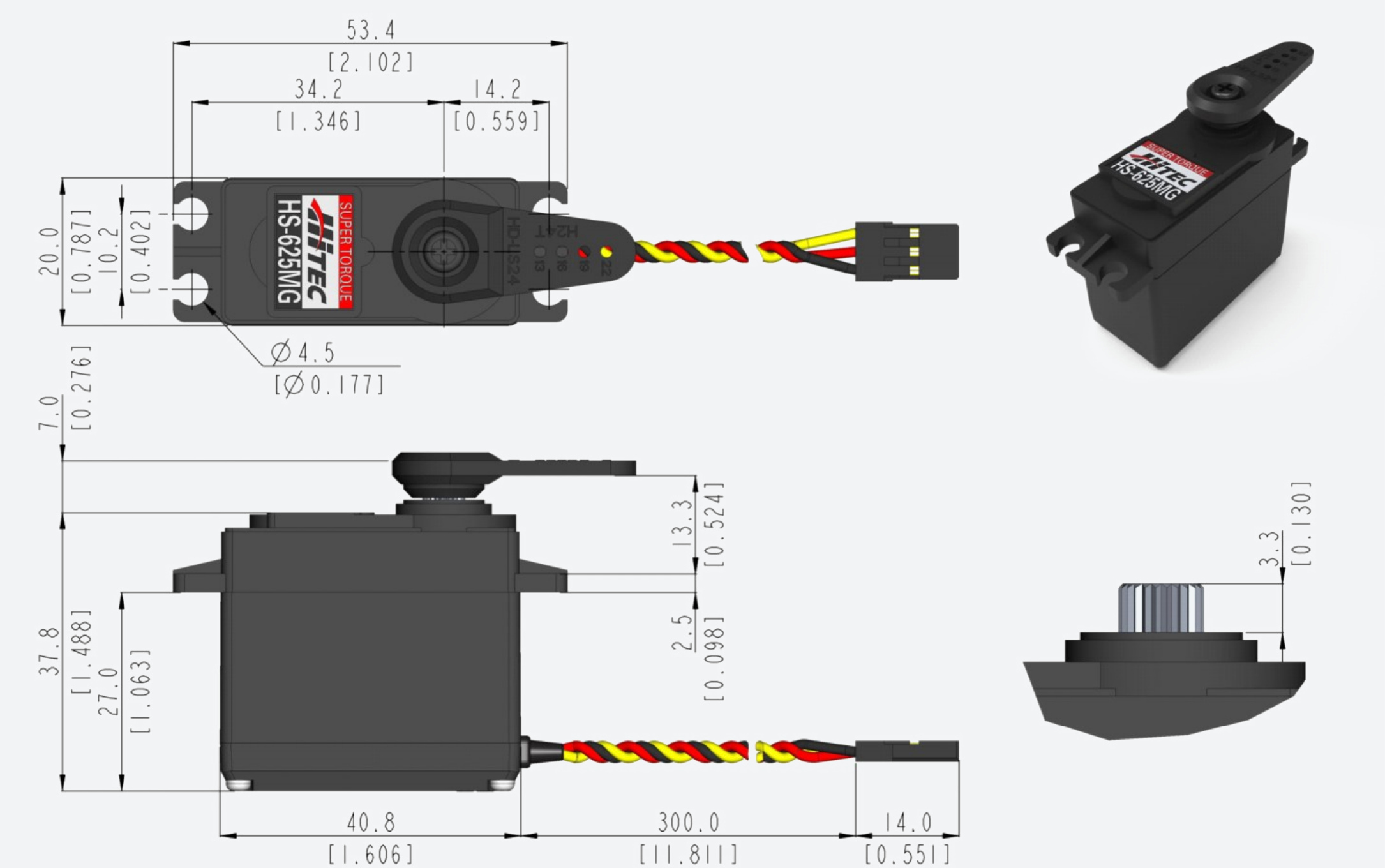

Dimensions (L×W×H)40.6 × 19.8 × 37.8 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles. Features • Affordable High Speed Metal Gear Servo • Strong Three-Pole Ferrite Motor • Heavy Duty Metal Gear Train • Revolutionary Metal/Plastic First Gear (MP Gear) • Dual Ball Bearing-Supported Output Shaft

Downloads

hs-625mg_3dmodel

ZIP Datasheet

HS-625MG_Specsheet(v2.1)_22L

PDF Datasheet
