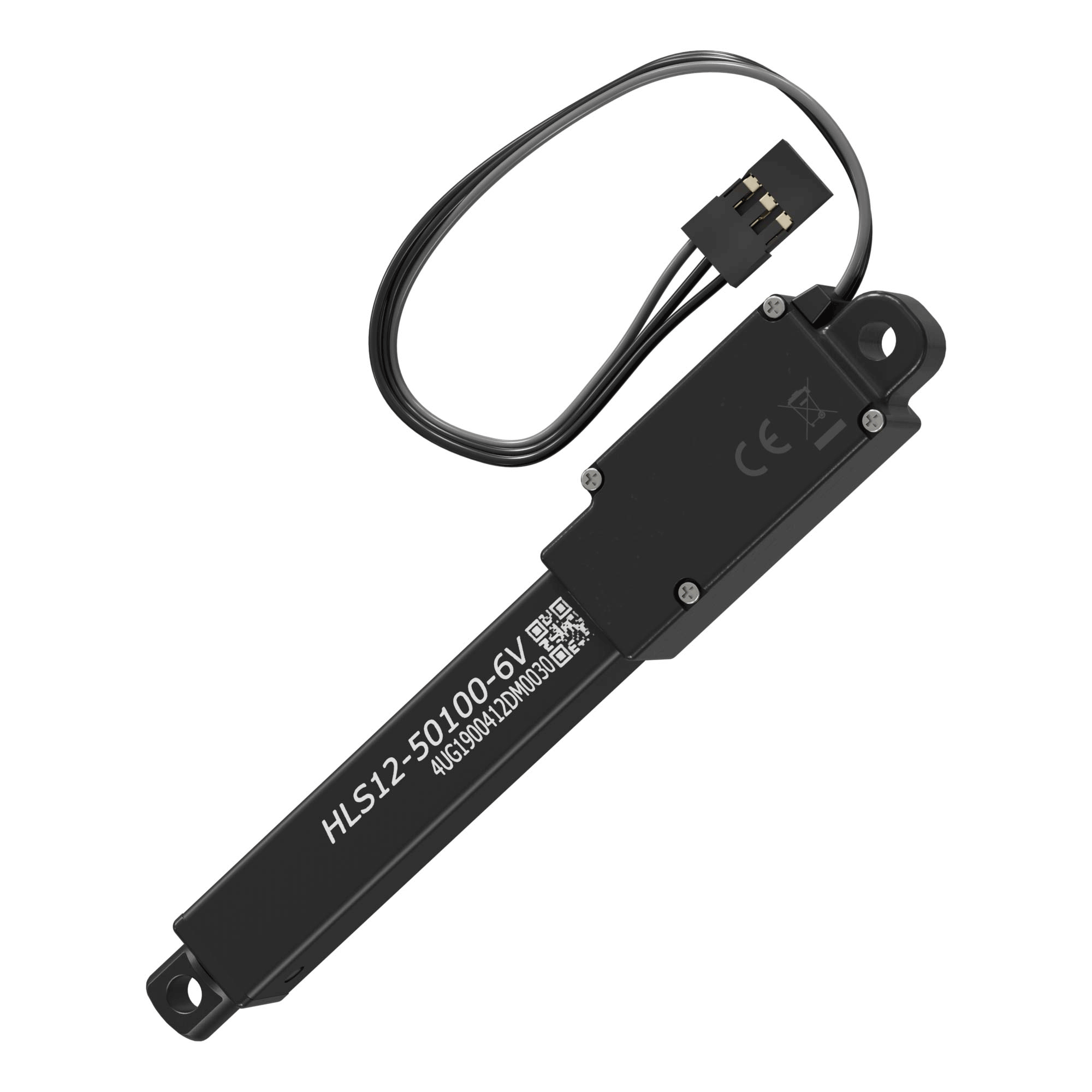

With 50mm of travel and a 100:1 gear ratio, the HLS12-50100 is ideal for medium stroke applications requiring a faster transit speed with more power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 900 - 2100µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
The HLS12-5050 offers more speed, while additional thrust is available with the high gear ratios of our HLS12-50210 and HLS12-50380 versions.
Applications requiring less travel will be better matched to our HLS12-30XX linear actuators, while the HLS12-100XX series offers more excursion.
