HS-5085MG

Premium Metal Gear Micro Servo

PWM Cored Metal Brush

4.3

KGF·CM

Max Torque

0.13

SEC/60°

Speed

21.9

GRAMS

Weight

Torque3.6 ~ 4.3 kgf·cm

Speed0.17 ~ 0.13 sec/60°

Operating Voltage4.8 ~ 6 V

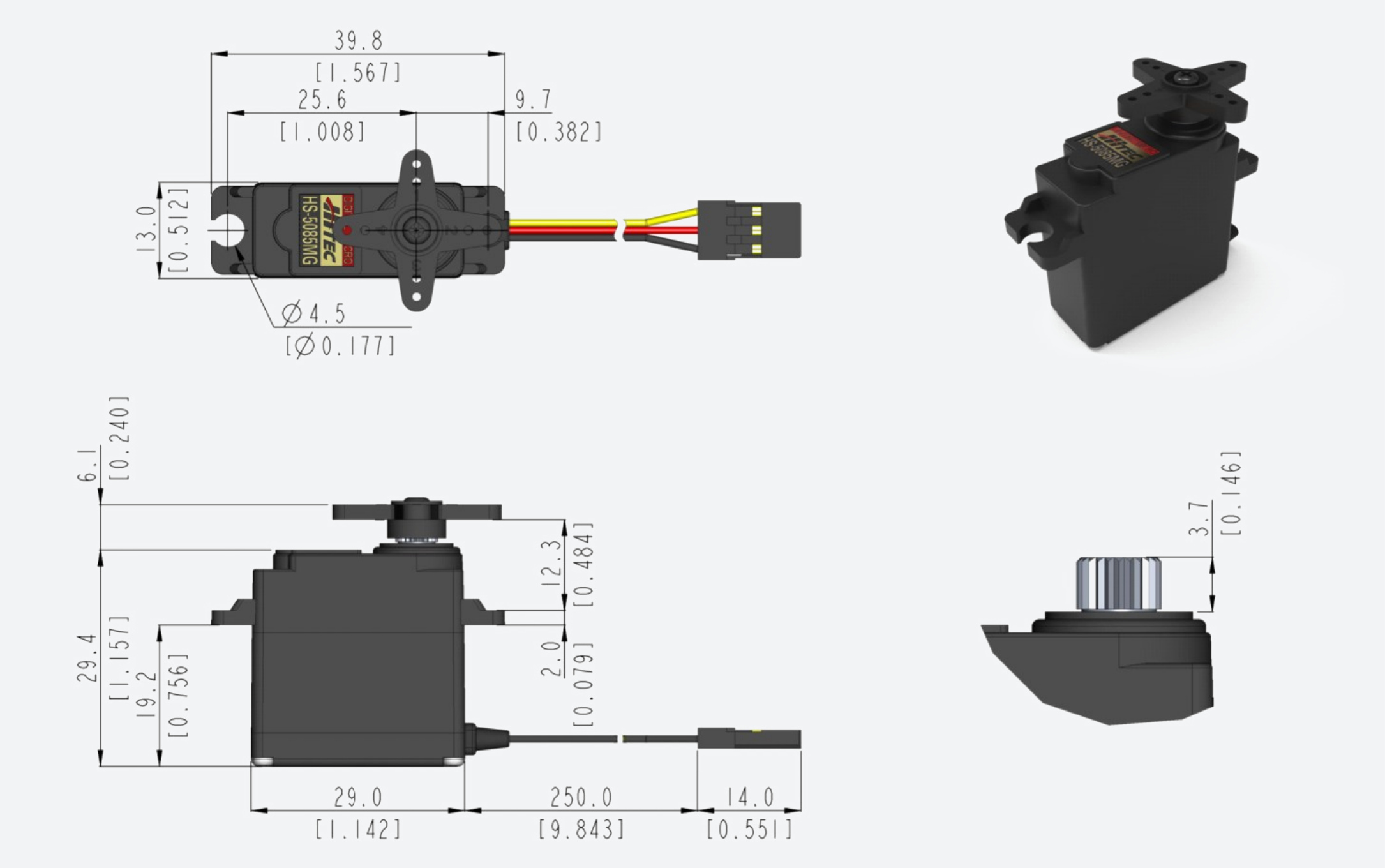

Dimensions (L×W×H)29 × 13 × 30 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

A digital version of one of Hitec’s most popular microi servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque. The upgraded version of this servo is now available : D85MG Features • Standard Servo Performance from a Micro Servo • Rugged Metal Gears • Ball Bearing-Supported Output Shaft • Standard Programmable Digital Circuit • Stronger Holding Power than the Analog Version Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
