HS-5070MH

Ultra Torque, Metal Gear Feather Servo

PWM Cored Metal Brush

3.8

KGF·CM

Max Torque

0.12

SEC/60°

Speed

12.7

GRAMS

Weight

Torque3.1 ~ 3.8 kgf·cm

Speed0.15 ~ 0.12 sec/60°

Operating Voltage6 ~ 7.4 V

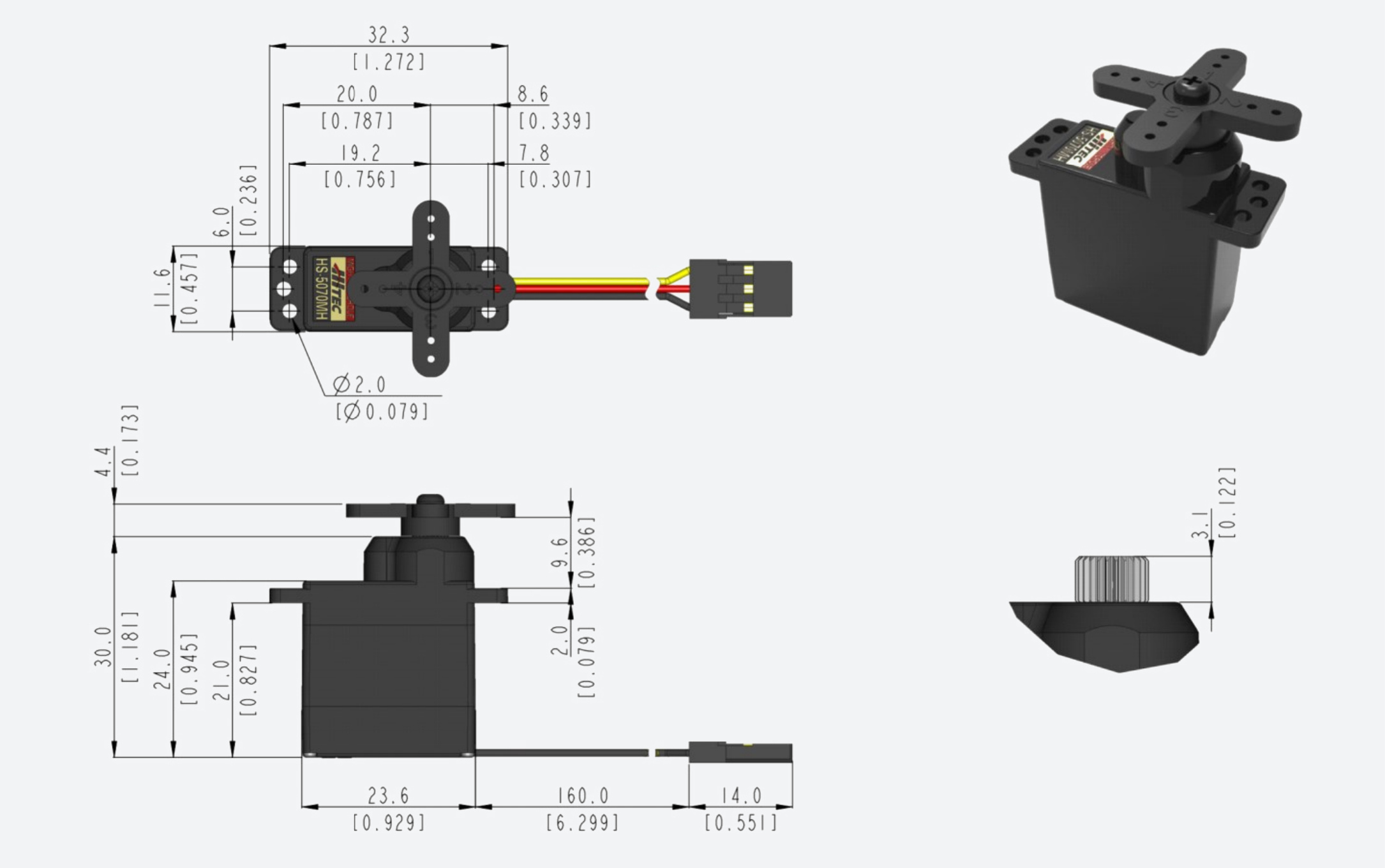

Dimensions (L×W×H)23.6 × 11.6 × 29 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec! Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
