D845WP
D845WP
D845WP Click to enlarge

D845WP

Digital Mega Scale Monster Torque Waterproof Servo

PWM TTL Cored Carbon Brush
50
KGF·CM
Max Torque
0.17
SEC/60°
Speed
227
GRAMS
Weight
Torque32.5 ~ 50 kgf·cm
Speed0.26 ~ 0.17 sec/60°
Operating Voltage4.8 ~ 7.4 V

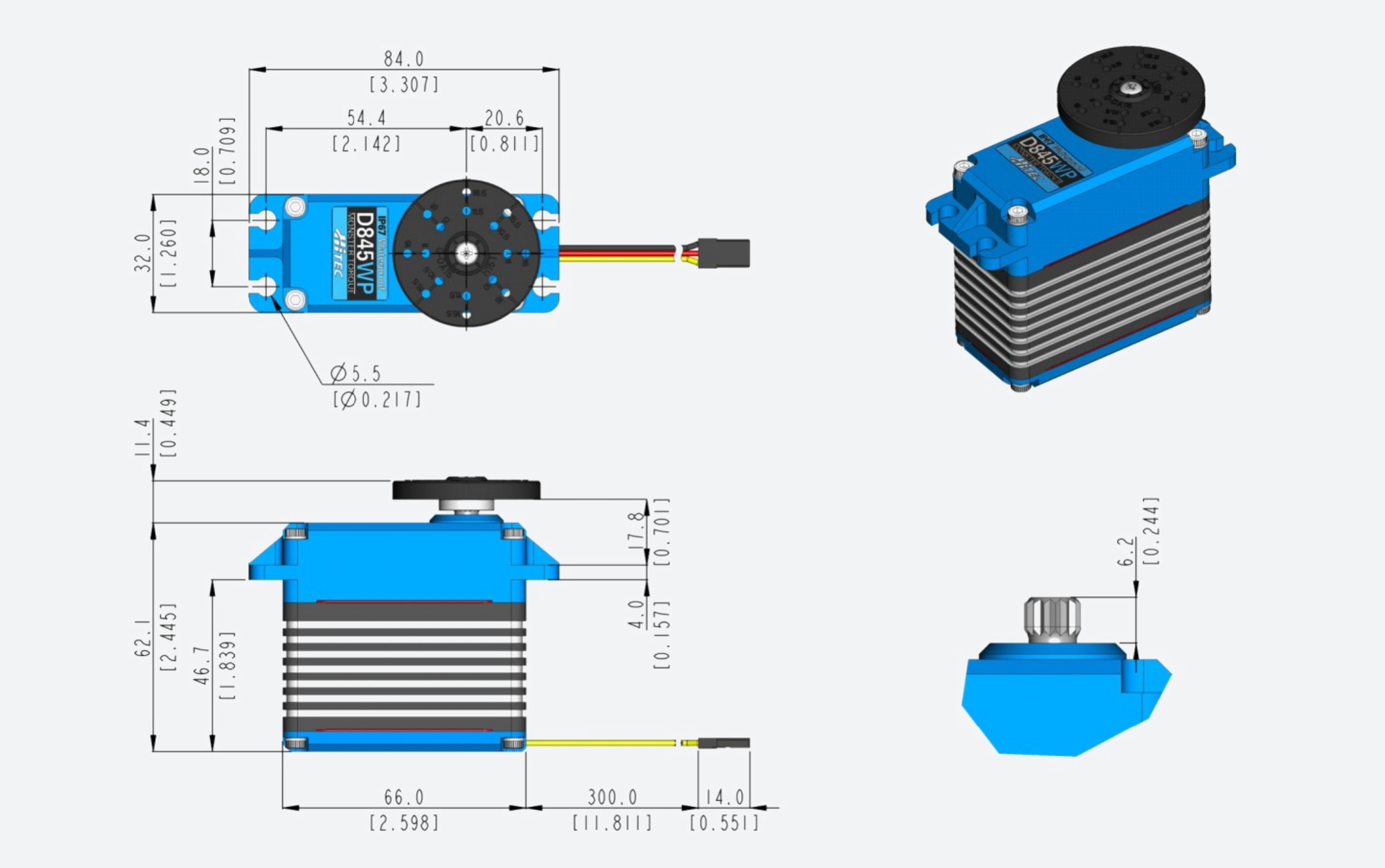

Dimensions (L×W×H)66 × 32 × 62 mm
Motor TypeCored Carbon Brush
Gear TypeSteel
ProtocolsPWM,TTL
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
The D845WP servo is a IP-67 rated servo capable of being truly waterproof, dust resistant, and ready for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with our entire “D” line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D845WP produces the mighty torque and reliability required to take bashers to the next level.
Downloads
D845WP_3dmodel
ZIP Datasheet
D845WP_Specsheet(v2.1)_22H
PDF Datasheet
