HS-225MG

Metal Gear Mighty Mini Servo

PWM Cored Metal Brush

4.4

KGF·CM

Max Torque

0.13

SEC/60°

Speed

GRAMS

Weight

Torque3.7 ~ 4.4 kgf·cm

Speed0.15 ~ 0.13 sec/60°

Operating Voltage4.8 ~ 6 V

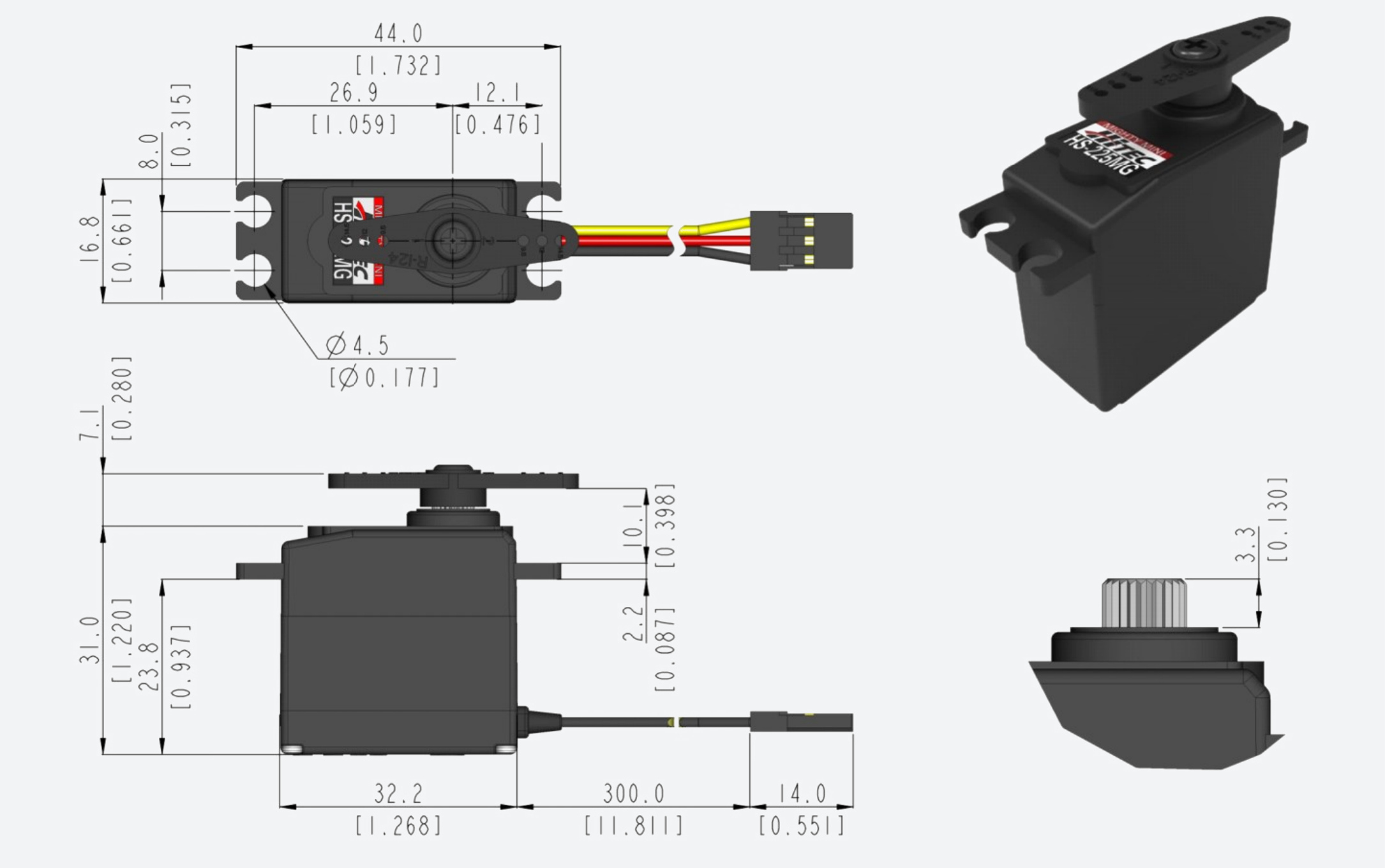

Dimensions (L×W×H)32.4 × 16.8 × 31 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology. Features • Full Size Performance in a Mini Package • Durable Metal Gears • Top Ball Bearings • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

Downloads

hs-225mg_3dmodel

ZIP Datasheet

HS-225MG_Specsheet(v2.1)_22L

PDF Datasheet
