HS-5765MH

High Voltage, Metal Gear, Giant Scale Servo

PWM Cored Metal Brush

KGF·CM

Max Torque

0.13

SEC/60°

Speed

172.3

GRAMS

Weight

Torque20 ~ 25 kgf·cm

Speed0.16 ~ 0.13 sec/60°

Operating Voltage4.8 ~ 6 V

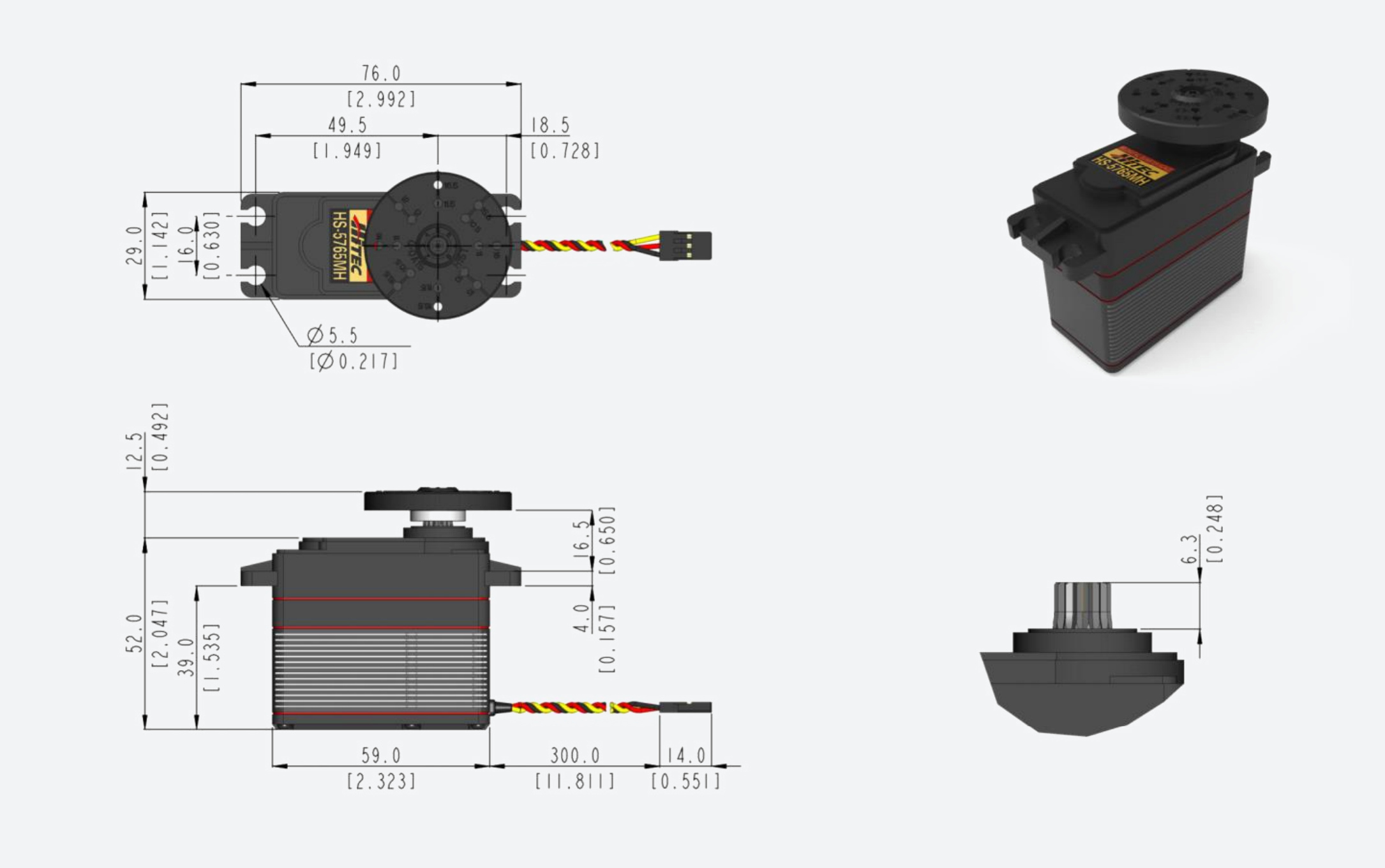

Dimensions (L×W×H)59 × 29 × 52 mm

Motor TypeCored Metal Brush

Gear TypeMetal

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

When it comes to your big RC projects, size does matter - that’s why Hitec engineered the HS-5765MH. This high voltage cousin of our popular HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty, metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, our giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5thon and off-road vehicles to large high-powered boats and giant scale aircraft! Features • Large 10mm Output shaft • Triple Ball Bearings • Heavy Duty Metal Gear Train • Water and Dust Resistant Case Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
