Featuring a torsionally rigid design and construction, the DB951WP boasts hardened steel gears, an ultra-efficient brushless motor, and a waterproof aluminum case, CNC-machined from solid billet stock. This powerhouse delivers an impressive 528 oz-in of torque with blistering speeds of 0.10 sec/60° @ 7.4 volts. Its superior precision, durability and speedy gear ratio make it the perfect servo for commercial applications demanding maximum performance and pinpoint accuracy.
Features
• Robust All Aluminum Case
• 25-tooth Horn Gear Spline
• High Speed, Steel Gear Servo
• Efficient, Brushless Motor
• Dual Ball Bearing Supported Output Shaft
• Fully Programmable, Digital Amplifier
• IP-67 Waterproof Rating
• Faster Gear Ratio Version of Hitec's DB961WP
• IP67 Waterproof Rating
Specifications
• Speed: 0.10 sec/60°
• Torque: 38.0 kgf•cm
• Dimensions: 40.0 x 20.0 x 39.0mm (1.58 x 0.79 x 1.54 in)
• Weight: 90.0g
DB951WP Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.0V ~ 8.4V
Speed (Second @ 60°) 0.10 @ 7.4V
Maximum Torque Range oz. / in. 527.72 @ 7.4V
Maximum Torque Range kg. / cm. 38.0 @ 7.4V
Current Draw at Idle 35mA @ 7.4V
No Load Operating Current Draw 350mA @ 7.4V
Stall Current Draw 6,500mA @ 7.4V
Dead Band Width 1us
Physical Specifications

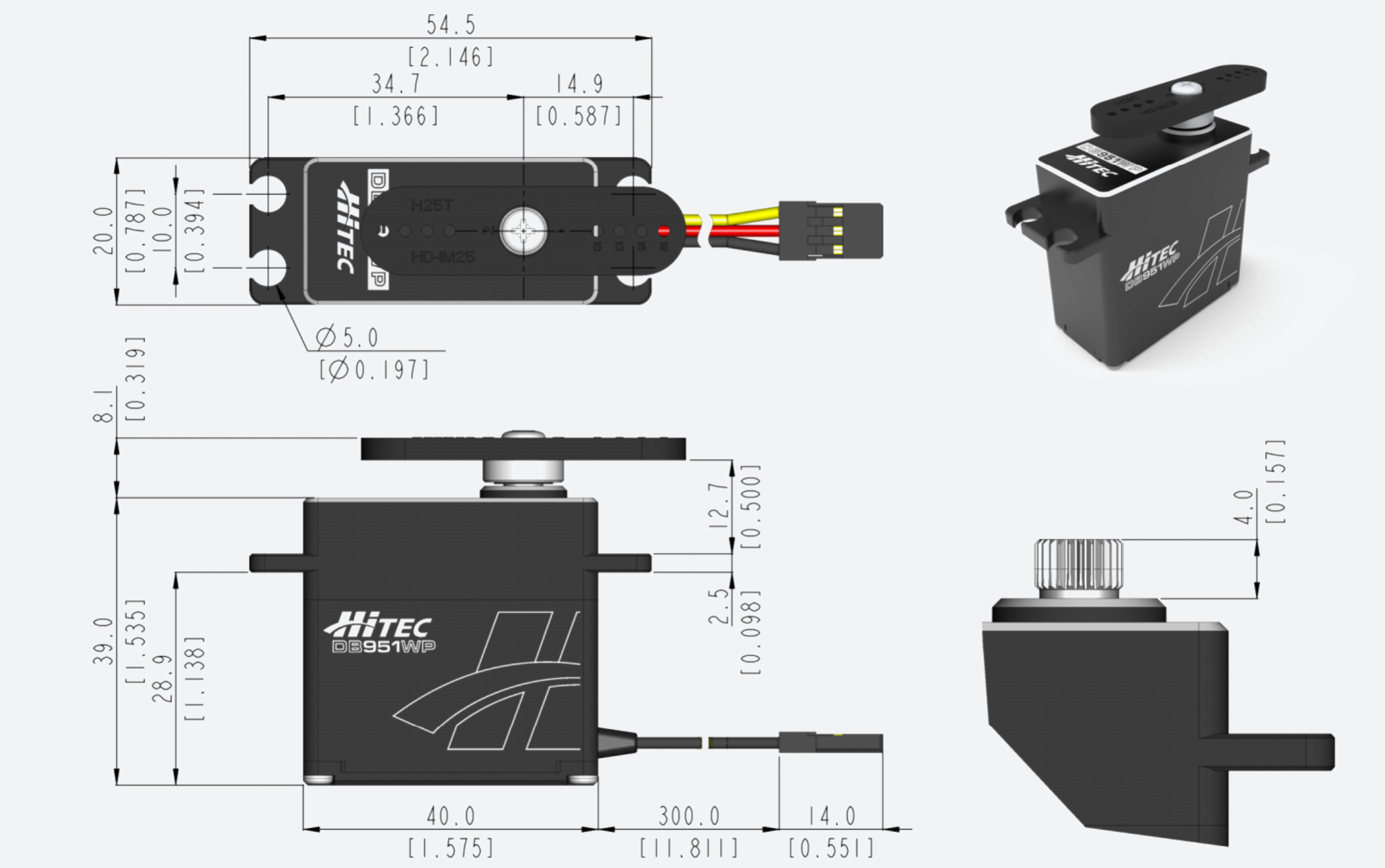

Dimensions (Inches) 1.575 x 0.787 x 1.535 in.
Dimensions (Metric) 40.0 x 20.0 x 39.0
Weight (Ounces) 3.175
Weight (Gram) 90.0
Circuit Type 32bit Programable Digital
Motor Type Brushless
Gear Material 5 Hardened Steel Gears
Bearing Type 2 Ball Bearings
Output Shaft (type / Ømm) 25T(Ø6)
Case Material Aluminum Alloy
Dust / Water Resistance IP67 Rated
Connector Gauge (AWG) / Strand Count 20AWG
