With 100mm of travel and a 210:1 gear ratio, the HLS12-100210 is ideal for short stroke applications requiring higher power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 900 - 2100µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
The HLS12-10050 and HLS12-100100 offer more speed, while additional thrust is available with our high gear ratio HLS12-100380 version.
Applications requiring less excursion will be better matched to our HLS12-30XX and HLS12-50XX series linear actuators.
General Specifications

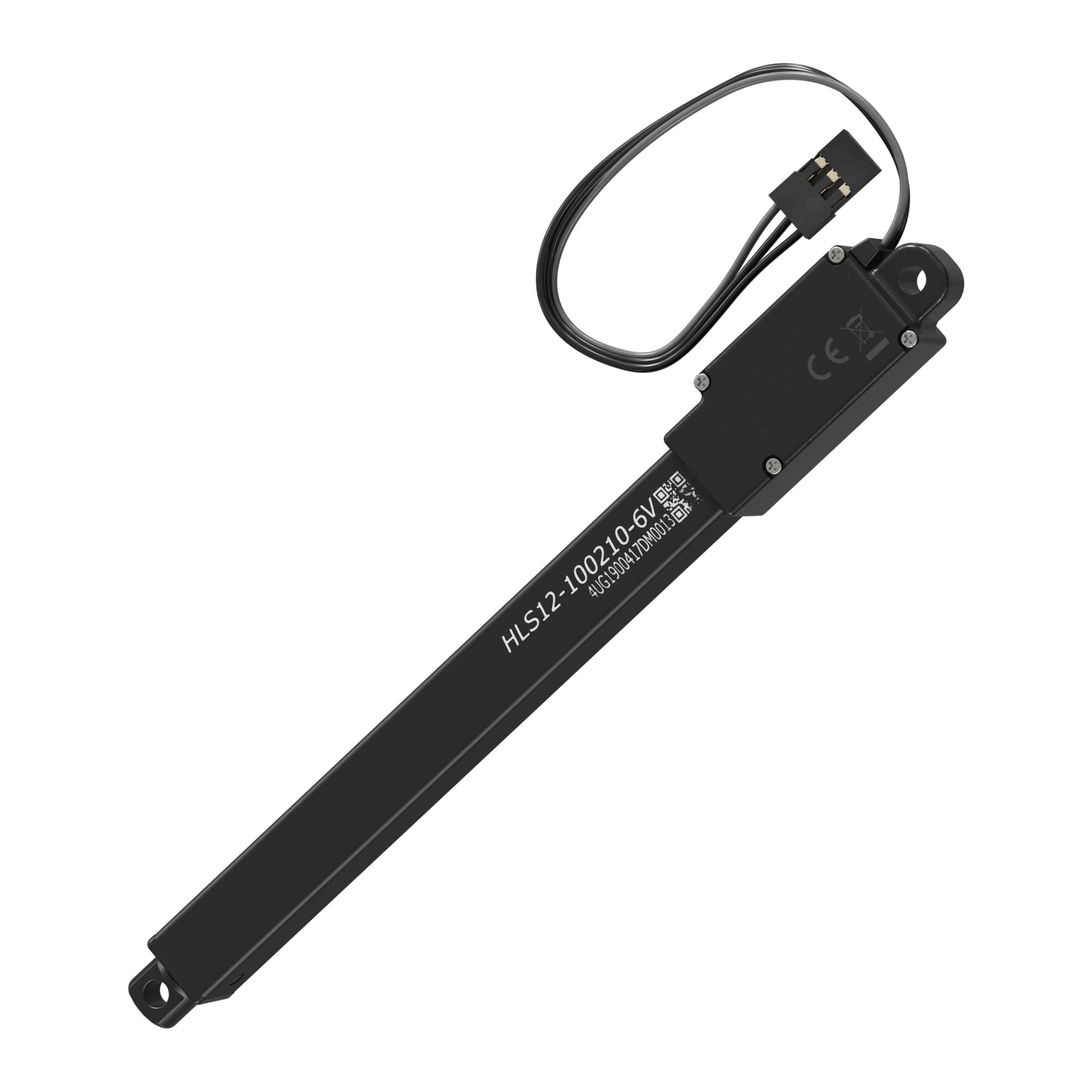

HLS12-100210-6V Linear servo - Lead 5mm
Control System PWM
Operating Voltage 4.0v ~ 8.4V
Motor Type Cored Metal Brush
Controller (MCU) 32bit Programmable Digital
Lead Screw LEAD 5mm
Gear Ratio 210 : 1
at 4.8V
No Load Speed : 4.9mm/s
Current : 80mA
Maximum Efficiency Point Load : 2.9kgf (28.24N)
Speed : 3.6mm/s
Current : 160mA
Peak Power Point Load : 5.0kgf (48.64N)
Speed : 2.56mm/s
Current : 240mA
Max Thrust (Lifted) Load : 6.4kg (62.76N)
Speed : 1.84 mm/s
Current : 320 mA
Stall Thrust 8.0kgf (78.45N)
Stall Current 400 mA
Max Static Thrust 16.32kgf (160N) above
at 6.0V
No Load Speed : 6.1mm/s
Current : 100mA
Maximum Efficiency Point Load : 3.6kgf (35.30N)
Speed : 4.5mm/s
Current : 200mA
Peak Power Point Load : 6.2kgf (60.80N)
Speed : 3.2mm/s
Current : 300mA
Max Thrust (Lifted) Load : 8.0kgf (78.45N)
Speed : 2.3mm/s
Current : 400mA
Stall Thrust 10.0kgf (98.07N)
Stall Current 500 mA
Max Static Thrust 20.39kgf (200N) above
at 7.4V
No Load Speed : 7.5mm/s
Current : 130mA
Maximum Efficiency Point Load : 4.4kgf (43.60N)
Speed : 5.56mm/s
Current : 250mA
Peak Power Point Load : 7.7kgf (75.09N)
Speed : 3.95mm/s
Current : 370mA
Max Thrust (Lifted) Load : 9.9kgf (96.89N)
Speed : 2.84mm/s
Current : 490 mA
Stall Thrust 12.4kgf (121.11N)
Stall Current 620 mA
Max Static Thrust 25.19kgf (247N) above
Mechanical
Stroke Spec 100mm
Repeatability ± 0.5mm
Max Side Load (Extended) 1.53kgf (15N)
Weight 56g (1.975oz)
Outline Dimensions 152.0 x 15.0 x 18.0mm (5.984 x 0.591 x 0.709inch)
Operating Temperature Range -10°C ~ +50°C (+14°F ~ +122°F)
Storage Temperature Range -30°C ~ +80°C (-22°F ~ +176°F)
Connector Wire Length 160mm (6.294inch)
Bearing Type Flange Bearing
Case Material Engineering Plastic & Aluminum Pipe
Gear Material 4 Metal Gears
