D485HW
D485HW
D485HW Click to enlarge

D485HW

32-Bit, Wide Voltage, Karbonite Servo

PWM TTL Cored Metal Brush
7.5
KGF·CM
Max Torque
0.15
SEC/60°
Speed
45
GRAMS
Weight
Torque5.2 ~ 7.5 kgf·cm
Speed0.2 ~ 0.15 sec/60°
Operating Voltage4.8 ~ 7.4 V

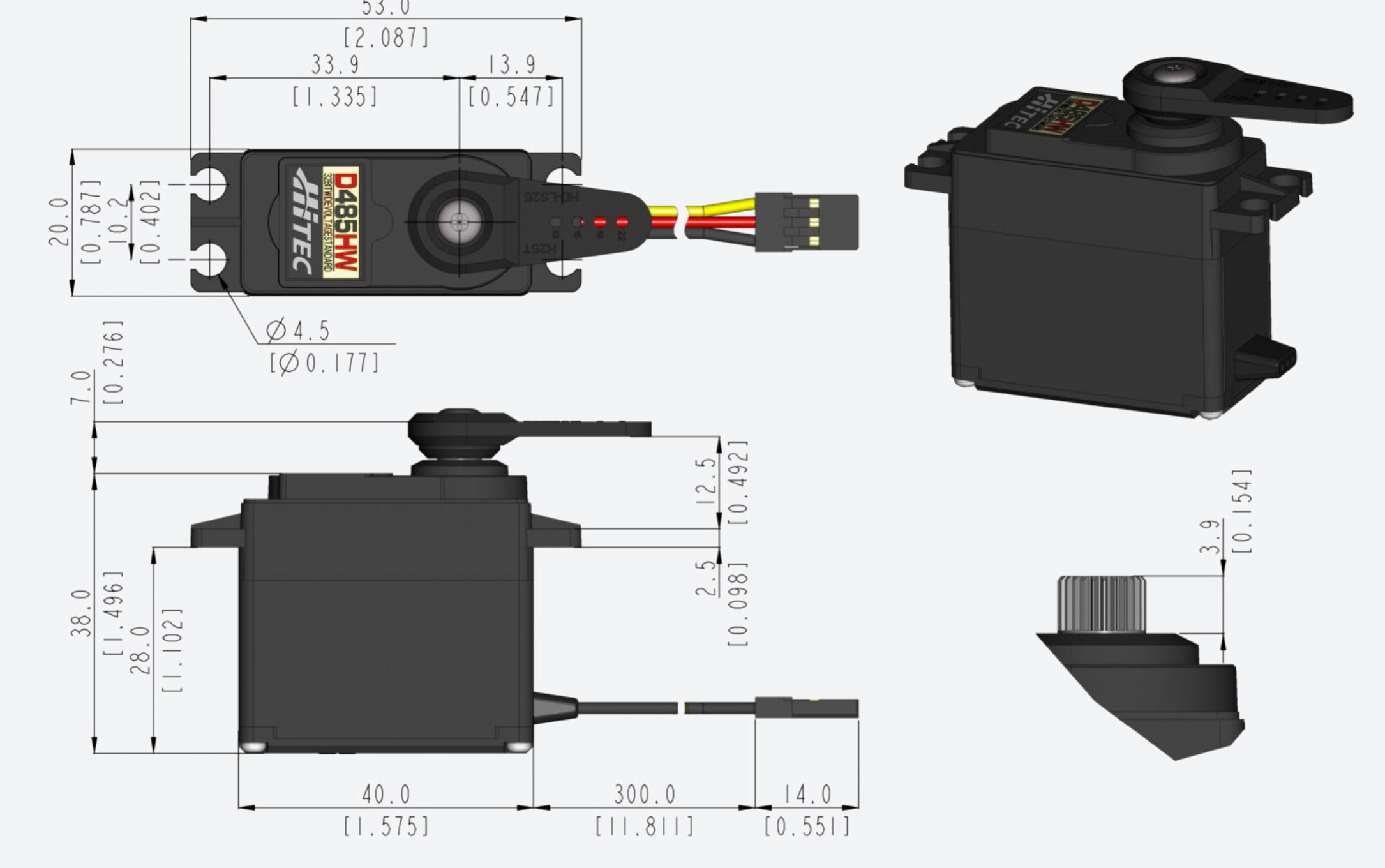

Dimensions (L×W×H)39.8 × 19.8 × 38 mm
Motor TypeCored Metal Brush
Gear TypeKarbonite
ProtocolsPWM,TTL
Product Inquiry
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation. This is the upgraded version of the HS-5485HB and HS-5495BH
Downloads
D485HW_3dmode
ZIP Datasheet
D485HW_Specsheet(v2.1)_22H
PDF Datasheet
