Home Products D646WP
D646WP
D646WP
D646WP Click to enlarge

D646WP

32bit Digital, High Torque, Waterproof Servo

PWM TTL Cord Carbon Brush
11.6
KGF·CM
Max Torque
0.16
SEC/60°
Speed
61
GRAMS
Weight
Torque7.5 ~ 11.6 kgf·cm
Speed0.24 ~ 0.16 sec/60°
Operating Voltage4.8 ~ 7.4 V

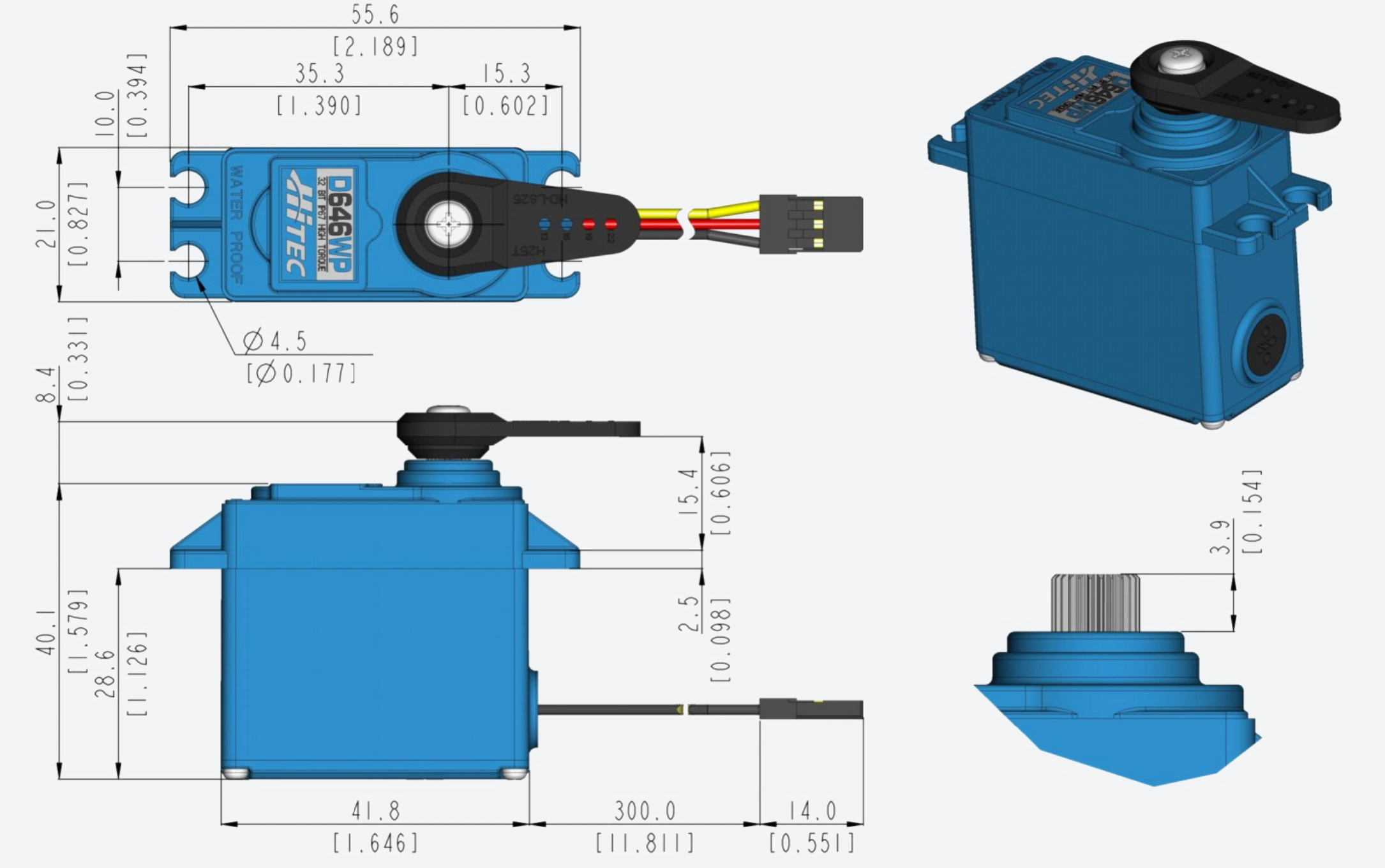

Dimensions (L×W×H)41.8 × 21 × 40 mm
Motor TypeCord Carbon Brush
Gear TypeMetal
ProtocolsPWM,TTL
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the D646WP will dependably keep your mind at ease. This is the upgraded version of the HS-5646WP • Industry's First IP67-Rated Waterproof Case • Strong Three-Pole Ferrite Motor • Metal Gear Train with MP First Gear • Dual Ball Bearing-Supported Output Shaft • 7.4v 2-Cell LiPo Capability • Standard Programmable Digital Circuitry Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
D646WP_3dmode
ZIP Datasheet
D646WP_Specsheet(v2.1)_22H
PDF Datasheet
More Products
View All →

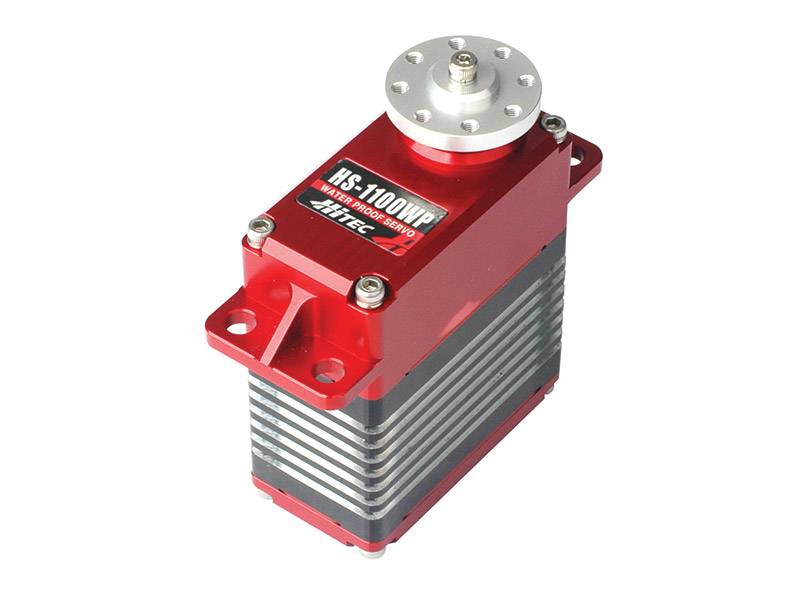

HS-1100WP
HS-1100WP
Ultra-Heavy Duty, Giant, Waterproof Servo

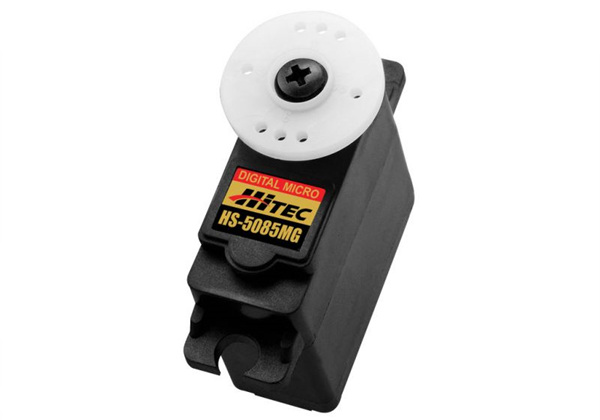

HS-5085MG
HS-5085MG
Premium Metal Gear Micro Servo
SG33BLT-CAN-24V-GLAND-CABLE
SG33BLT-CAN-24V-GLAND-CABLE
33mm, Waterproof, Brushless, High Torque Actuator with Gland Cable (24V)

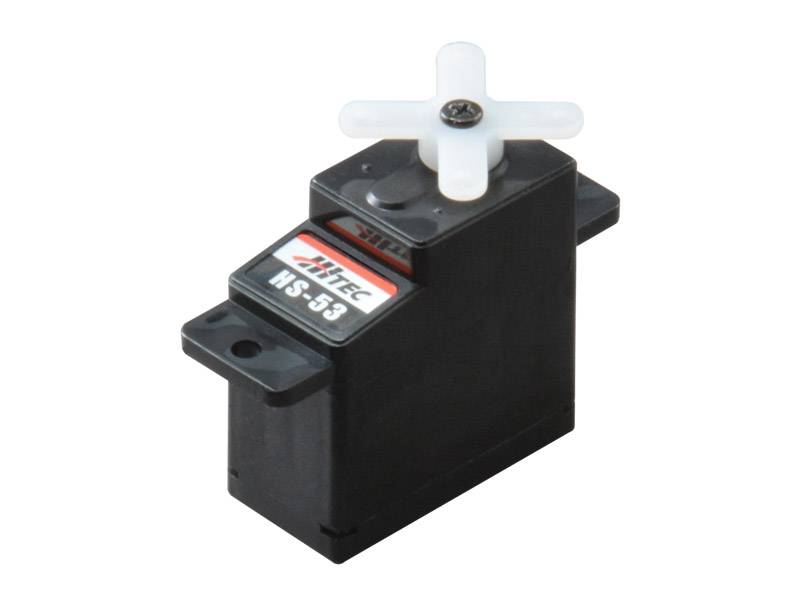

HS-53
