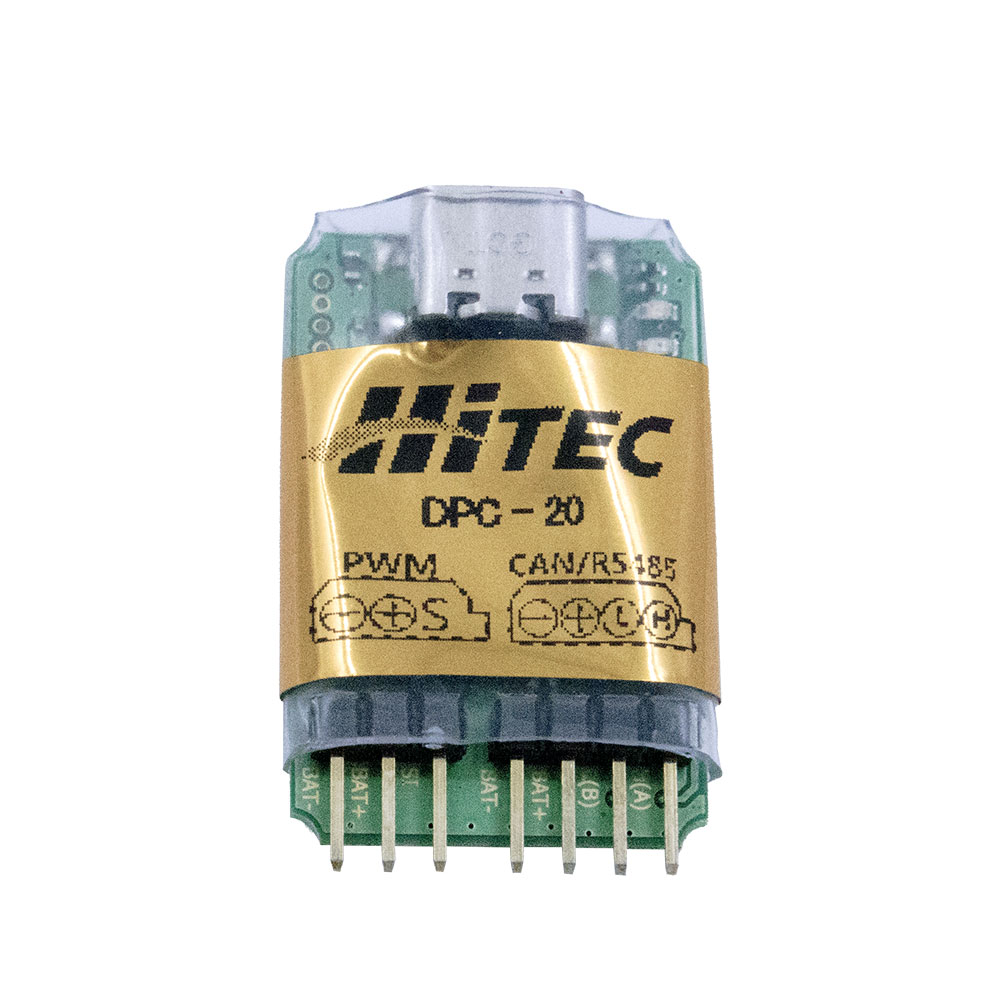

Hitec’s DPC-20 Servo Programmer offers an innovative web-based platform to let you control and configure your Hitec digital servos with the ease of USB-C connectivity and your favorite internet accessible device. You’ll always have access to the latest features and security enhancements without manual intervention or worry. A security protocol features robust measures such as encrypted connections and user authentication to protect sensitive data, prevent unauthorized access and reduce security risks. With a user-friendly interface to enhance your experience, all standard DPC programming functions are available including End Point Adjustments, Direction, Fail Safe, Dead Band, Speed (Slower), Soft Start Rate, Overload Protection, Data Save / Load and Program Reset.
IMPORTANT INFORMATION
• Hardware Type: PC USB-C to 3-pin (PWM/TTL) and 4-pin (RS485/CAN) interface.
• Capable of configuring and testing HITEC digital servo actuators.
• Compatible with various control methods (PWM, RS485, CAN), offering a seamless transition from legacy DPC-11, DPC-485, and DPC-CAN units.
• Different servo actuator series require dedicated UI programs due to variations in communication protocols.
• Ensure you connect the appropriate power supply to the DPC-20 for the connected servo actuator.
• For servo actuators (5/7 Series, 9 Series, D/MD Series), connect to the 3-pin port on the DPC-20, and connect the power supply to the BAT- and BAT+ pins on the 4-pin port, paying careful attention to polarity.
• DPC-20 Wiring Diagrams are located on the DPC-20 UI HUB DOCUMENTATION.
