Now more than ever, today’s competition quality off-road vehicles and giant scale aircraft demand uncompromised quality and performance in the never-ending race for gold. The new Ultra-Premium DB961WP answers that call for increased durability, providing the Pro-Class dependability and reliability you demand, regardless of your mission. Coupling massive torque and high speed with its wide voltage range and high resolution/low deadband circuitry, the DB961WP will deliver your hobby to a new level.
Features
• Voltage Range is 4.0V - 8.4V
• Torque: 763 in./oz. @6V & 7.4V
• Optimized for up to 2-Cell LiPo Use
• Ultra-Performance Brushless Motor
• 32-Bit MCU Technology / 4096 Resolution
• High Resolution/Low Deadband Circuitry
• User Programmable Thermal Cutoff
• Full Programmability
• IP67 Waterproof Rating
• Smart Sense Technology for Servo Analytics
• H25T Industry Standard Output Spline
Next Generation Case Design
• Machined Aluminum
• Dual Oversized Bearings
• Hardened Steel Gear Train
• 3 Hardened Steel Pins
DB961WP Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.0V ~ 8.4V
Speed (Second @ 60°) 0.15 @ 7.4V
Maximum Torque Range oz. / in. 763.81 @ 7.4V
Maximum Torque Range kg. / cm. 55.0 @ 7.4V
Current Draw at Idle 35mA @ 7.4V
No Load Operating Current Draw 500mA @ 7.4V
Stall Current Draw 6,500mA @ 7.4V
Dead Band Width 1us
Physical Specifications

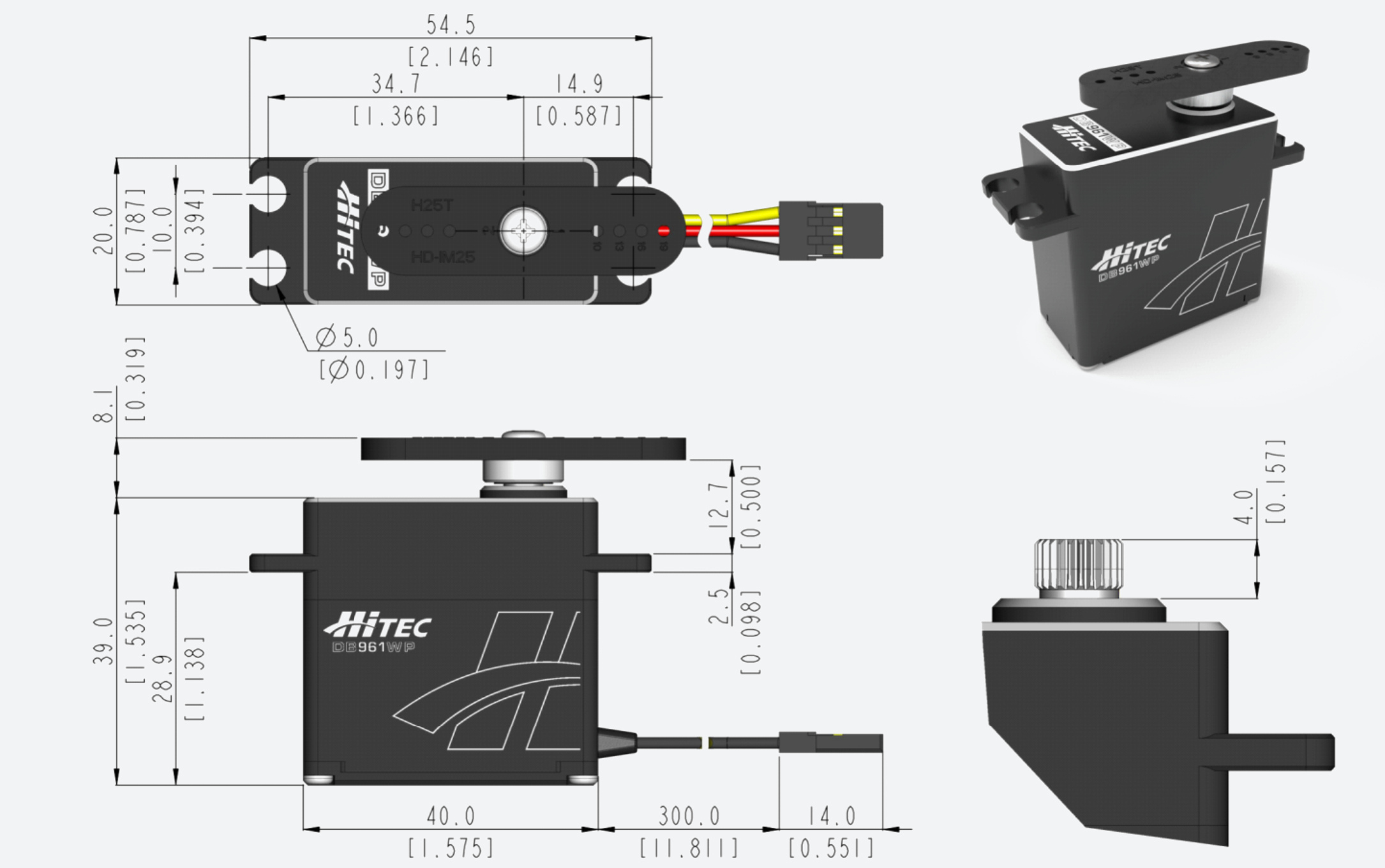

Dimensions (Inches) 1.575 x 0.787 x 1.535 in.
Dimensions (Metric) 40.0 x 20.0 x 39.0
Weight (Ounces) 3.175
Weight (Gram) 90.0
Circuit Type 32bit Programable Digital
Motor Type Brushless
Gear Material 5 Steel Gears
Bearing Type 2 Ball Bearings
Output Shaft (type / Ømm) 25T(Ø6)
Case Material Aluminum
Dust / Water Resistance IP67 Rated
Connector Gauge (AWG) / Strand Count 20AWG
