HS-5565MH
HS-5565MH
HS-5565MH Click to enlarge

HS-5565MH

Economical, High Voltage, High Speed, Coreless, Metal Gear Digital Sport Servo

PWM Coreless Metal Brush
14
KGF·CM
Max Torque
0.09
SEC/60°
Speed
59
GRAMS
Weight
Torque11 ~ 14 kgf·cm
Speed0.11 ~ 0.09 sec/60°
Operating Voltage6 ~ 7.4 V

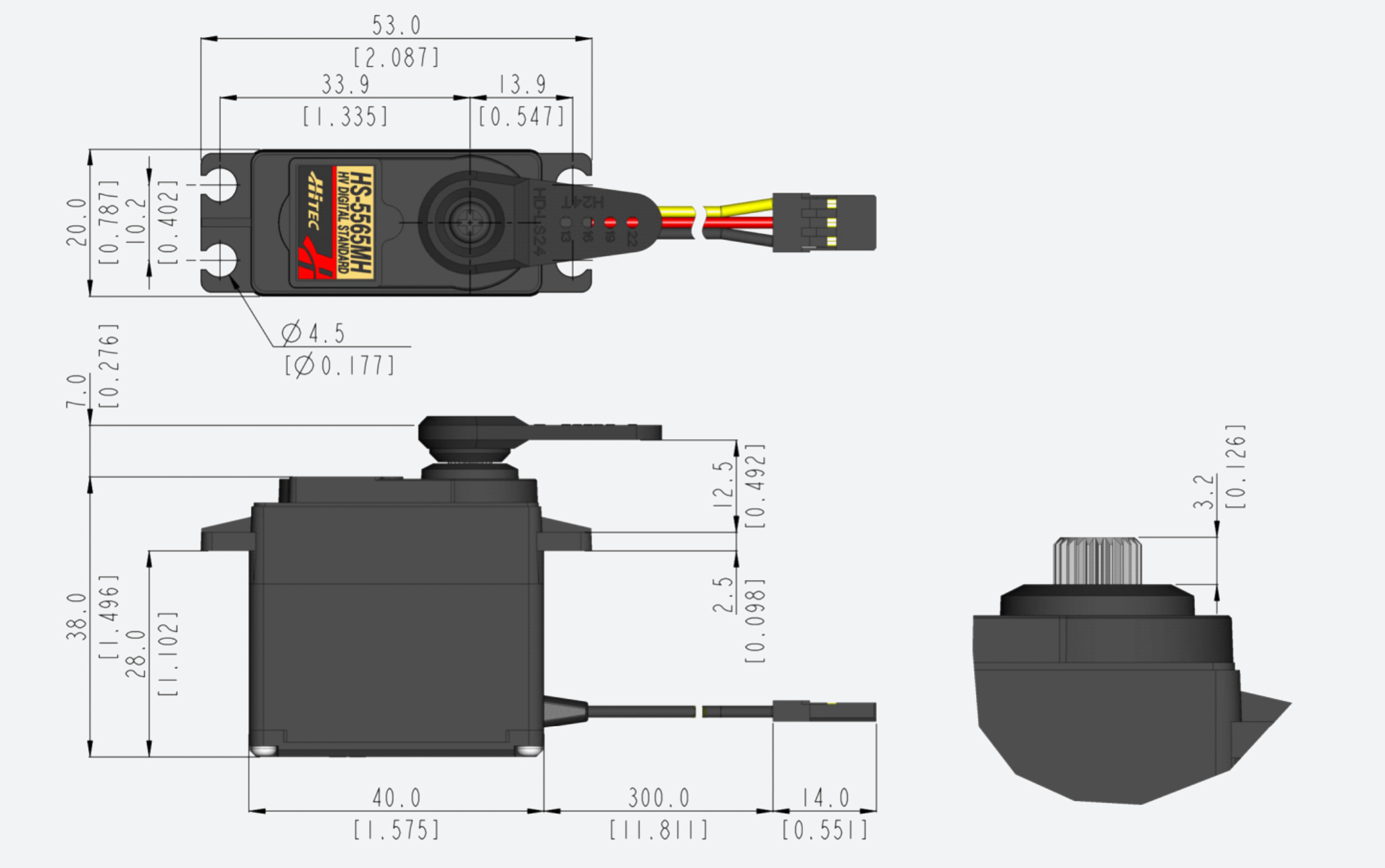

Dimensions (L×W×H)39.8 × 19.8 × 38 mm
Motor TypeCoreless Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Increase your performance not your budget with the high voltage, high speed, digital HS-5565MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for  7.4 volt, 2S LiPo operation The HS-5565MH brings lightning speed and acceleration to your 1/10th scale touring cars, buggies and short course vehicles, helicopters up to .90-size and sport to high performance aircraft up to 25 percent. Features • Our Most Economically Priced High Speed Digital Coreless Servo • Quick and Precise Coreless Motor • Heavy Duty Metal Gears • 7.4v 2-Cell LiPo Capability • Standard Programmable Digital Circuit Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset
Downloads
HS-5565MH_3dmodl
ZIP Datasheet
HS-5565MH_Specsheet(v2.1)_22K(1)
PDF Datasheet
More Products
View All →
SG33BLT-CAN-12V-GLAND-CABLE
SG33BLT-CAN-12V-GLAND-CABLE
33mm, Waterproof, Brushless, High Torque Actuator with Gland Cable (12V)
HS-125MG
HS-125MG
Slim Metal Gear Wing Servo

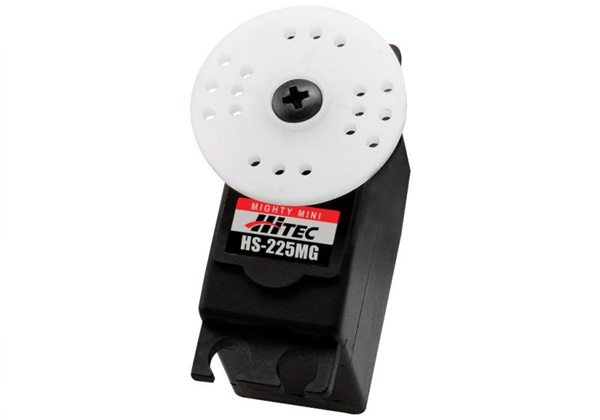

HS-225MG
