HS-81

Standard Micro Servo

PWM Cored Metal Bursh

KGF·CM

Max Torque

0.09

SEC/60°

Speed

16.6

GRAMS

Weight

Torque2.6 ~ 3 kgf·cm

Speed0.11 ~ 0.09 sec/60°

Operating Voltage4.8 ~ 6 V

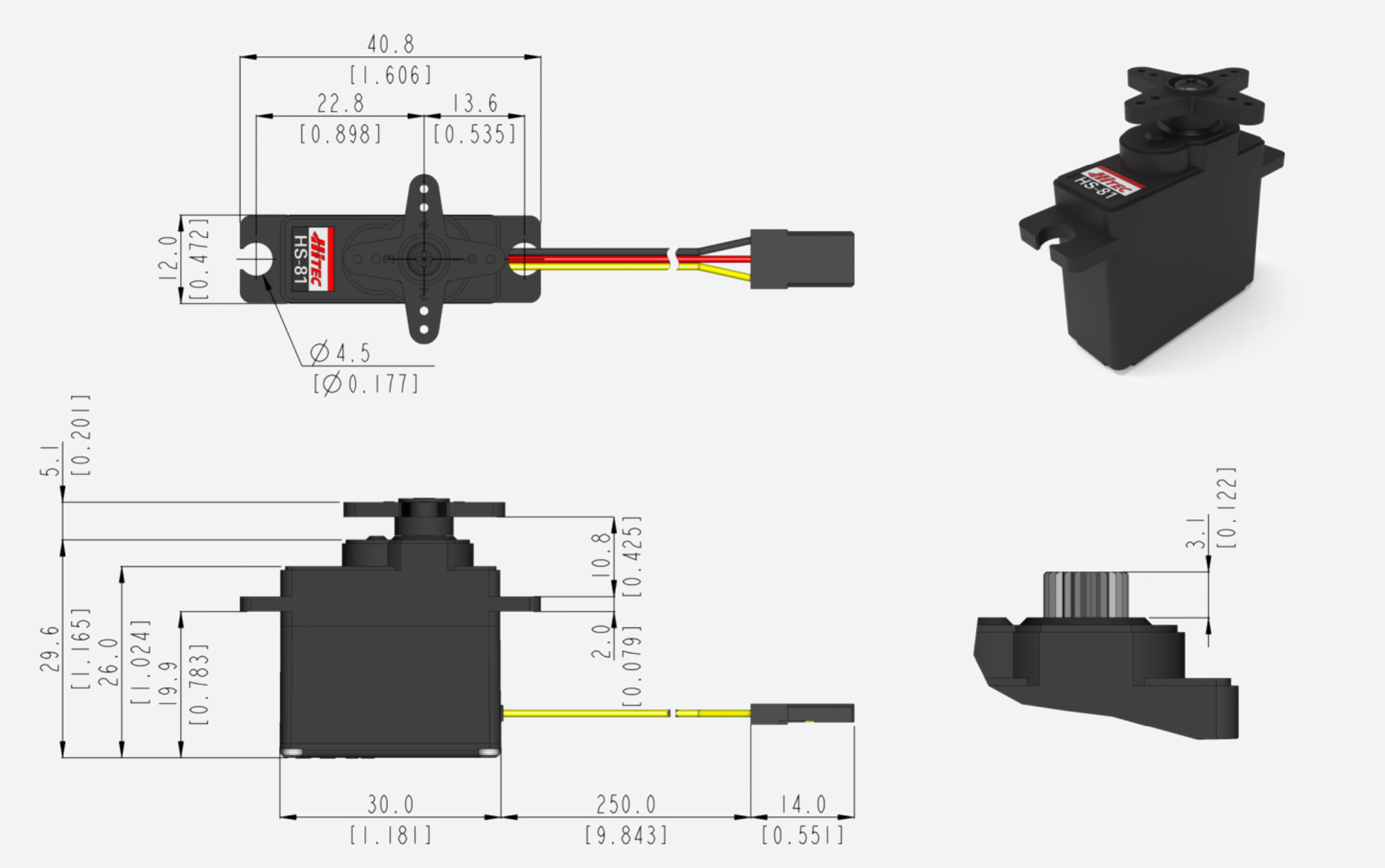

Dimensions (L×W×H)29.8 × 12 × 29.6 mm

Motor TypeCored Metal Bursh

Gear TypeNylon

ProtocolsPWM

Product Inquiry

Loading 3D model…

Drag to rotate · Scroll to zoom

Product Description

You get two choices with Hitec’s most popular servo the HS-81, resin or metal gears. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-81 offers a fine balance between speed and torque. Features • Top Selling Micro Servo • Strong Three-Pole Ferrite Motor • Durable Nylon Gears

Downloads

hs-81_3dmodel

ZIP Datasheet

HS-81_Specsheet(v2.1)_22L

PDF Datasheet
