HS-7245MH
HS-7245MH
HS-7245MH Click to enlarge

HS-7245MH

High Voltage, High Torque, Metal Gear, Coreless Mini Servo

PWM Coreless Metal Brush
6.4
KGF·CM
Max Torque
0.11
SEC/60°
Speed
34
GRAMS
Weight
Torque5.2 ~ 6.4 kgf·cm
Speed0.13 ~ 0.11 sec/60°
Operating Voltage6 ~ 7.4 V

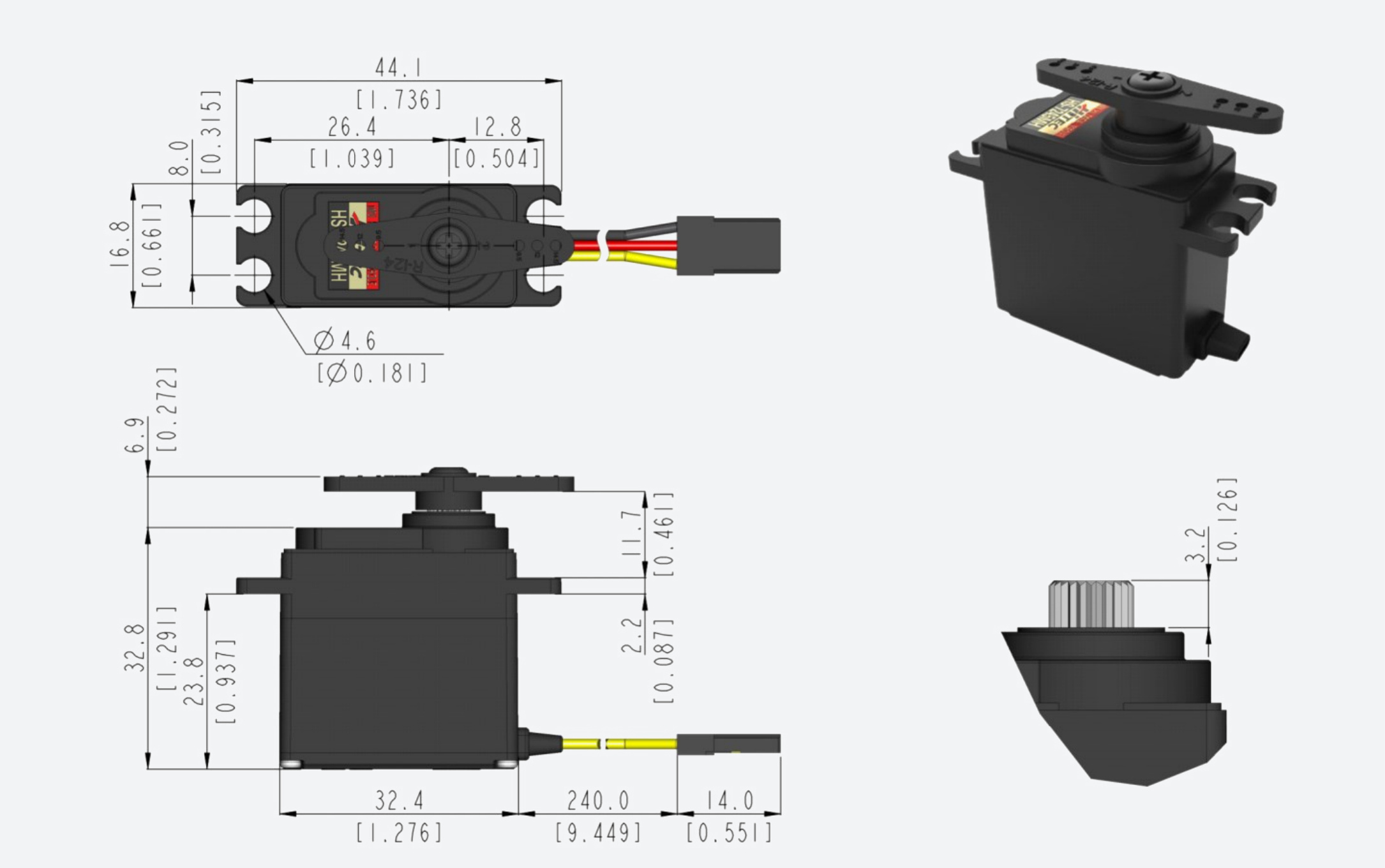

Dimensions (L×W×H)32.4 × 16.8 × 32.8 mm
Motor TypeCoreless Metal Brush
Gear TypeMetal
ProtocolsPWM
Loading 3D model…
Drag to rotate · Scroll to zoom
Product Description
Watch out, here it comes! Our new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH. Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain. Features • Our Best High Speed Mini Servo • Efficient Coreless Motor • Heavy Duty Metal Gear Train • Dual Ball Bearing • 7.4v 2-Cell LiPo Capability • G2.5 Fully Programmable Digital Circuitry Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Overload Protection • Resolution • Data Save / Load • Program Reset
Downloads
hs-7245mh_3dmodl
ZIP Datasheet
HS-7245MH_Specsheet(v2.1)_22I
PDF Datasheet
More Products
View All →
SG15BL-CAN-12V-CIRCULAR-CONN
SG15BL-CAN-12V-CIRCULAR-CONN
15mm, Waterproof, Brushless, High Torque Actuator with Circular Connector (12V)
HS-5565MH
HS-5565MH
Economical, High Voltage, High Speed, Coreless, Metal Gear Digital Sport Servo

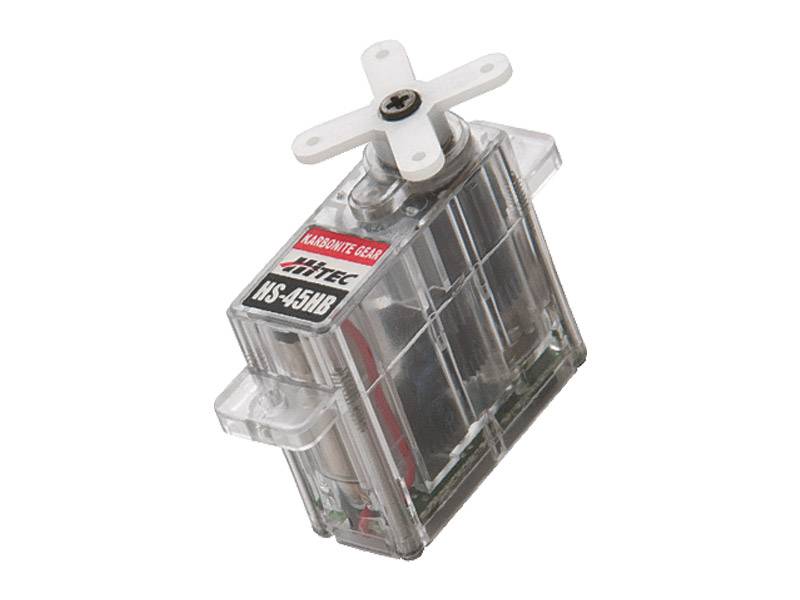

HS-45HB
