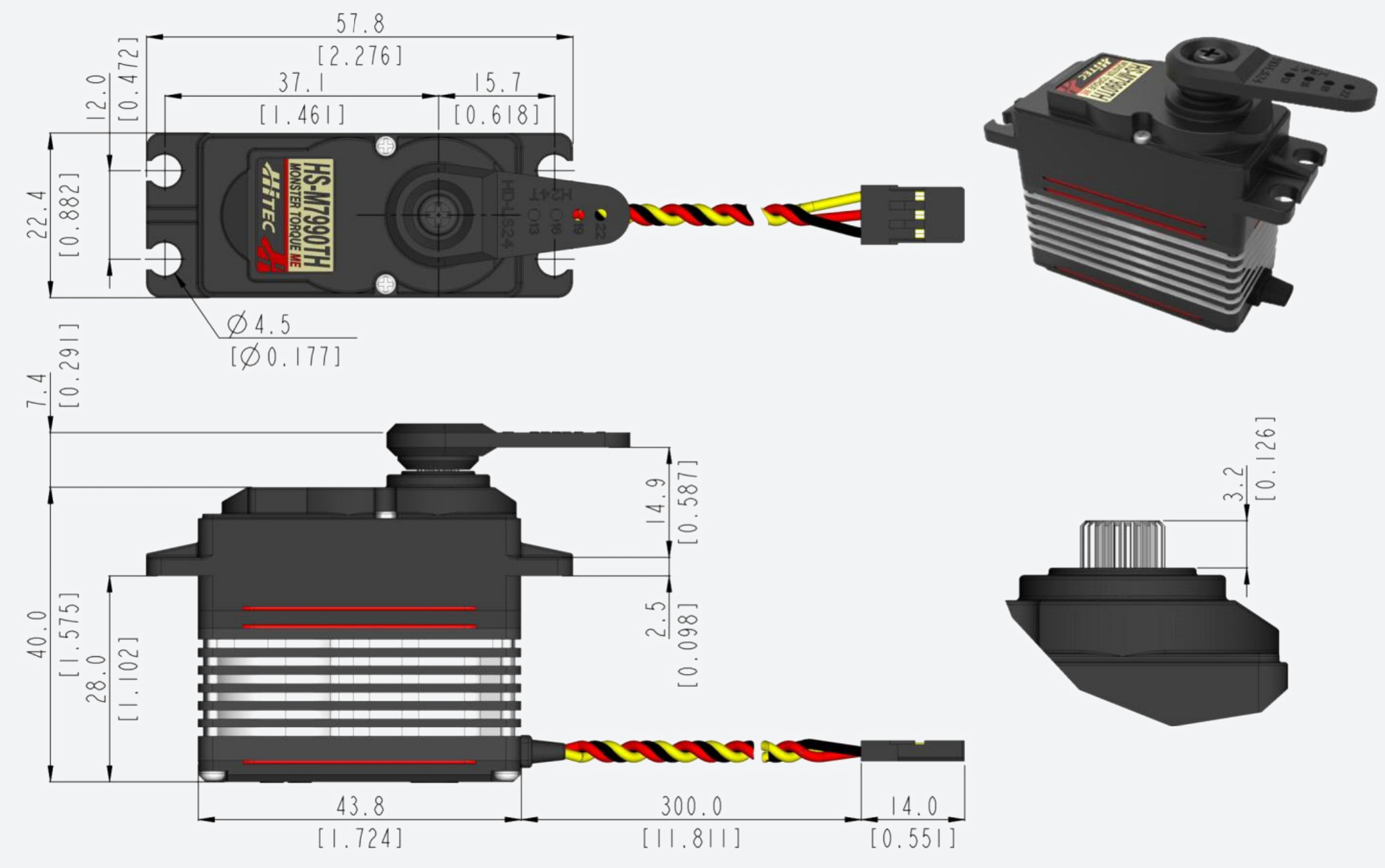

Hitec's most technologically advanced servo, the "Monster Torque" HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution "G2.5" 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axialbushings.
Features
• High Resolution Magnetic Digital Ecoder
• G2.5 12 bit Digital Programmable Circuit
• Titanium Gear Train (MK first gear)
• Ultra Performance Coreless Motor
• Integrated Heatsink Case
• (8) O-Rings for Water/Dust/Fuel protection
• Dual Ball Bearing Supported Output Shaft
• 10% larger than a HS-7955TG
Programmable Functions
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Overload Protection
• Resolution
• Data Save / Load
• Program Reset
